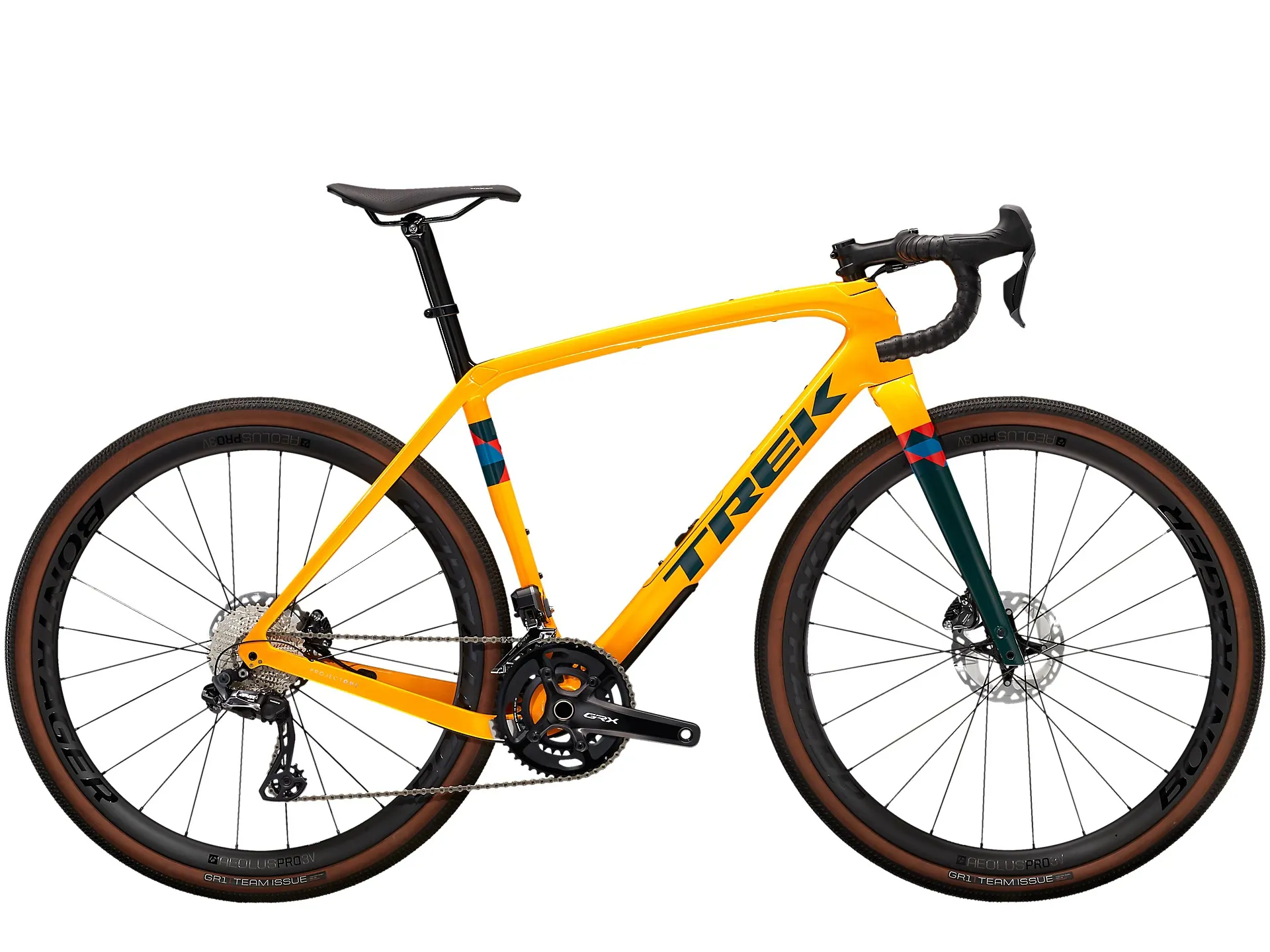

Trek Checkpoint SLR 7 Gravel Bike 2023 in Marigold

Trek Checkpoint SLR 7 Gravel Bike 2023 in Marigold-1

The GRX rear derailleur gives you better chain retention and smooth, reliable shifting on rough terrain.

Trek

Trek Checkpoint SLR 7 Gravel Bike 2023 in Marigold

£7,736.00 £8,625.00 10% off

Size Guide

Earn

in Customer Rewards when you buy this item today

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Earn Rewards

When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

Any item, except food, face masks or e-gift vouchers (full e-gift vouchers T&Cs are listed on the respective product pages) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase. It is recommended that you use a recorded delivery service to ensure your items are received by us. We cannot assume responsibility for items that are lost in the post.

Online or in-store purchases can both be returned to any store free of charge or can be returned by post after completing the online returns form. If you are returning an item due to a fault, we will refund your postage.

If you wish to return your bike to us, please keep the box it arrived in and let us know using the returns form and we will arrange collection.

Customer Returns Form

If you wish to cancel, return or exchange an order please fill in the form below. Returns can be processed quicker if all required information is added.

Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the products have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:

1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £24.99 for collection. If you do not have the original box, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid receipt.

Trek Checkpoint SLR 7 Gravel Bike 2023 in Marigold

Season:2023

Brand:Trek

Code:35294MariGLDNauticalNVY

Checkpoint SLR 7 is a carbon gravel bike that's built for crushing the world's greatest gravel races. The lightweight 700 Series OCLV Carbon frame has gravel-smoothing IsoSpeed and a nimble-yet-stable progressive geometry. Plus, a Shimano GRX drivetrain that shifts smoothly even in the gnarliest gravel, and extra mounts for gear and accessories. This bike a true gravel-grinding powerhouse.

A 700 Series OCLV Carbon frame with Front IsoSpeed and carbon armour, a progressive geometry that's stable at speed and efficient when you're grinding up a climb, internal storage, hidden cables that won't interfere with bags, and integrated frame bag and mudguard mounts. Plus, a carbon fork, 2x11 Shimano GRX drivetrain that's built for rugged rides and Bontrager Aeolus Pro 3V OCLV Carbon wheels with wide 700x40c gravel tyres that provide extra traction and stability. Fits up to 45 c tyres.

Key Features & Benefits:

Hydraulic Disc Brakes:Accurate and powerful braking capacity to keep you in control in all weather conditions.
ISO Speed: The controlled rebound of the IsoSpeed decoupler soaks up fatiguing bumps without bouncing you around
Shimano GRX:The GRX rear derailleur gives you better chain retention and smooth, reliable shifting on rough terrain

Full Specification:

Frame:700 Series OCLV Carbon, IsoSpeed, internal storage
Fork:Trek Checkpoint, full carbon
Number of Gears:11
Gear Shifters:Shimano GRX Shifter Front
Chainset:Shimano GRX RX810,
Chainrings:48/31
Rear Cassette:Shimano CS-HG800, 11sp 11-34
Chain:Shimano CN-HG701 11sp
Front Derailleur: Shimano GRX RX815, braze-on
Rear Derailleur:Shimano GRX RX810
Bottom Bracket:Praxis Works T47 BB, for 24mm Shimano Cranks
Pedals:Not Supplied
Wheelset:Bontrager Aeolus Pro 3V
Front Tyre:Bontrager GR1 Team Issue, 700x40
Rear Tyre:Bontrager GR1 Team Issue, 700x40
Brakes:Shimano GRX hydraulic disc
Handlebars:Handlebar, Bontrager Pro IsoCore VR-SF
Handlebar Tape: Bontrager Supertack Perforated
Stem:Bontrager Pro 70mm, 7 Degree, 31.8mm
Saddle:Bontrager P3 Verse Elite, stainless steel rails
Seatpost:
Weight:56 - 19.38 lbs / 8.79 kg (with TLR sealant, no tubes)

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Sizing Chart for Trek Checkpoint

This chart can give a recommendation on which size may be best for you, however for the best results, please contact us or visit your local Balfe’s store for a personal consultation and test ride.

Frame Size	Rider Height (cm)	Rider Height (')	Inseam (cm)	Inseam (")
49	156 - 163 cm	5'1" - 5'4"	74 - 77 cm	29" - 30"
52	163 - 168 cm	5'4" - 5'6"	76 - 79 cm	30" - 31"
54	168 - 174 cm	5'6" - 5'9"	78 - 82 cm	31" - 32"
56	174 - 180 cm	5'9" - 5'11"	81 - 85 cm	32" - 33"
58	180 - 185 cm	5'11" - 6'1"	84 - 87 cm	33" - 34"
61	185 - 191 cm	6'1" - 6'3"	86 - 90 cm	34" - 35"

Geometry for Trek Checkpoint AL, ALR, SL

Frame size number	49 cm	52 cm	54 cm	56 cm	58 cm	61 cm
Wheel size	700c	700c	700c	700c	700c	700c
A — Seat tube	49	52	54	56	58	61
B — Seat tube angle	74.1°	73.7°	73.2°	72.8°	72.5°	72.1°
C — Head tube length	9	10.5	12.5	14.5	16.5	19.5
D — Head angle	71.2°	71.6°	71.8°	72.2°	72.3°	72.6°
E — Effective top tube	54.1	55.5	57	58.4	59.7	61.7
G — Bottom bracket drop	7.8	7.8	7.6	7.6	7.4	7.4
H — Chainstay length	43.5	43.5	43.5	43.5	43.5	43.5
I — Offset	4.5	4.5	4.5	4.5	4.5	4.5
J — Trail	7.4	7.1	7	6.7	6.6	6.5
K — Wheelbase	102.5	103.3	104.1	104.8	105.8	107
L — Standover	73.5	76.5	78.9	80.9	82.9	85.9
M — Frame reach	39.3	39.9	40.3	40.7	41.1	41.7
N — Frame stack	53.8	55.3	57.1	59.2	60.9	63.9
Stem length	70	80	80	90	90	100

Geometry for Trek Checkpoint SLR

Frame size number	49 cm	52 cm	54 cm	56 cm	58 cm	61 cm
Wheel size	700c	700c	700c	700c	700c	700c
A — Seat tube	49	52	54	56	58	61
B — Seat tube angle	74.1°	73.7°	73.2°	72.8°	72.5°	72.1°
C — Head tube length	9	10.5	12.5	14.5	16.5	19.5
D — Head angle	71.2°	71.6°	71.8°	72.2°	72.3°	72.6°
E — Effective top tube	54.1	55.5	57	58.4	59.7	61.7
G — Bottom bracket drop	7.8	7.8	7.6	7.6	7.4	7.4
H — Chainstay length	43.5	43.5	43.5	43.5	43.5	43.5
I — Offset	4.5	4.5	4.5	4.5	4.5	4.5
J — Trail	7.4	7.1	7	6.7	6.6	6.5
K — Wheelbase	102.5	103.3	104.1	104.8	105.8	107
L — Standover	73.5	76.5	78.9	80.9	82.9	85.9
M — Frame reach	39.3	39.9	40.3	40.7	41.1	41.7
N — Frame stack	53.8	55.3	57.1	59.2	60.9	63.9
Stem length	70	80	80	90	90	100
Saddle rail height min (w/short mast)	57.5	61.5	64	67	69	72
Saddle rail height max (w/short mast)	63.5	67.5	70	73	75	78
Saddle rail height min (w/tall mast)	60.5	64.5	67	70	72	75
Saddle rail height max (w/tall mast)	66.5	70.5	73	76	78	81

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com
