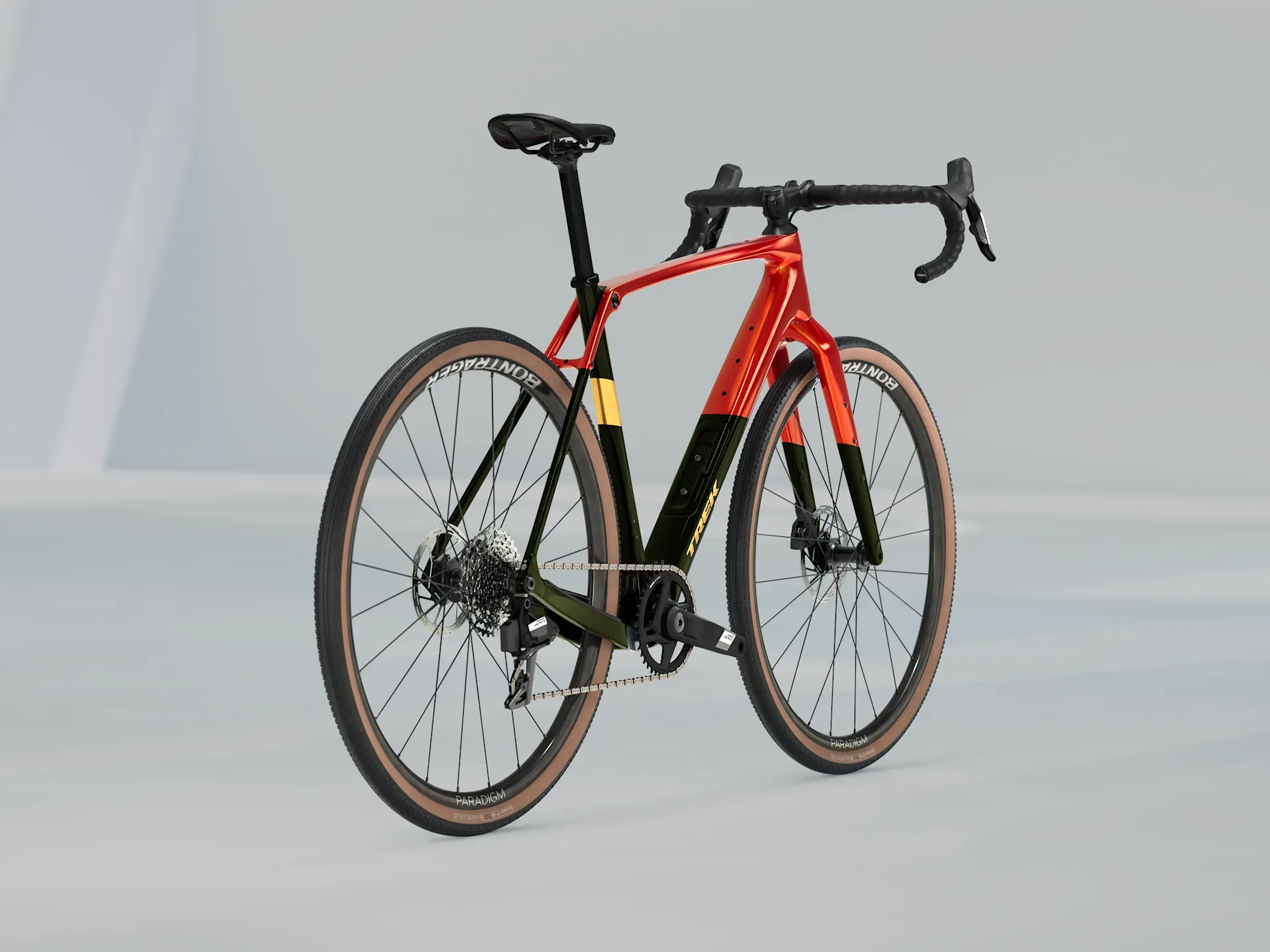

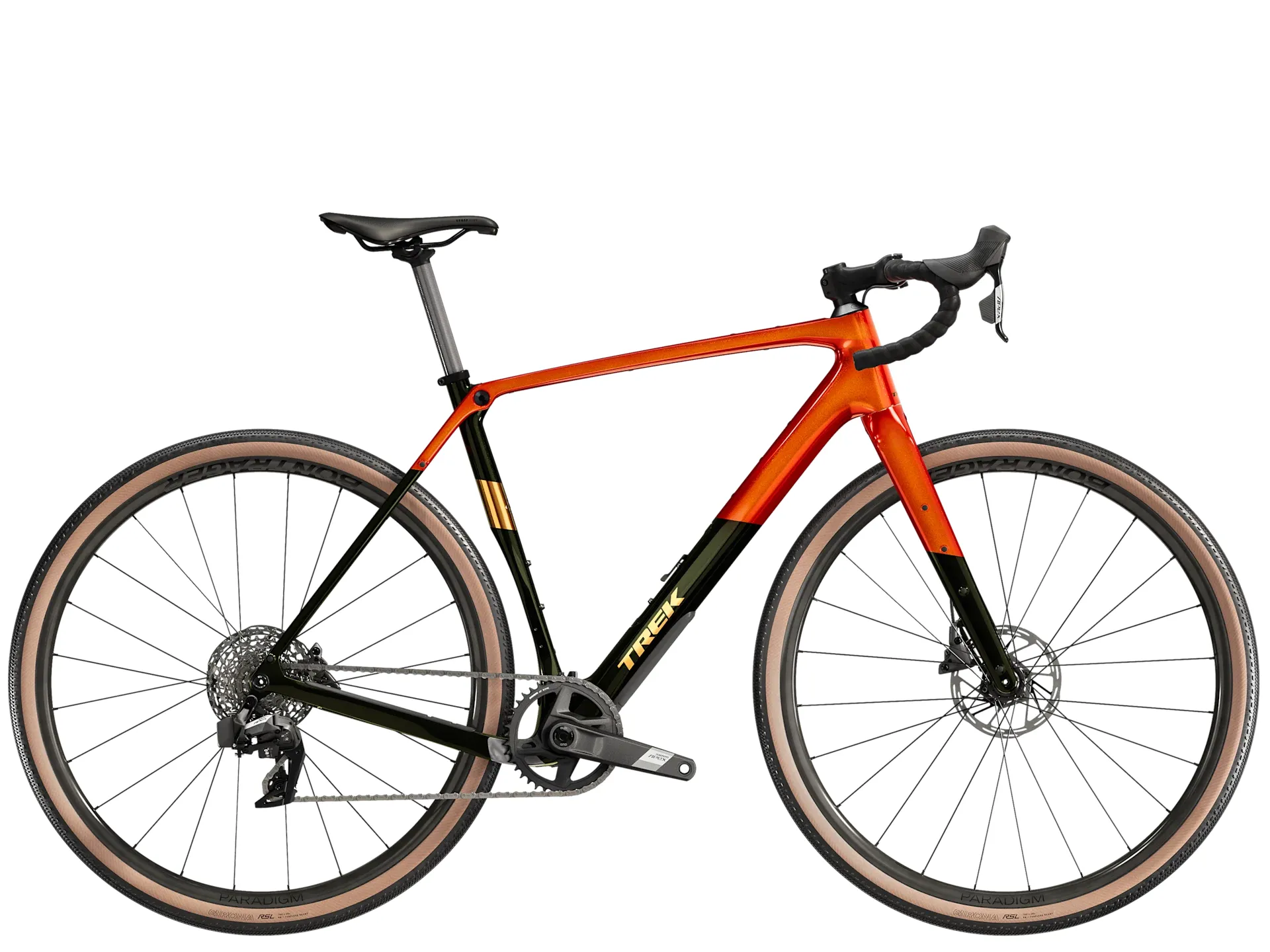

Sizing Chart for Trek Checkpoint SL
This chart can give a recommendation on which size may be best for you, however for the best results, please
contact us or visit your
local Balfe’s store for a personal consultation and test ride.

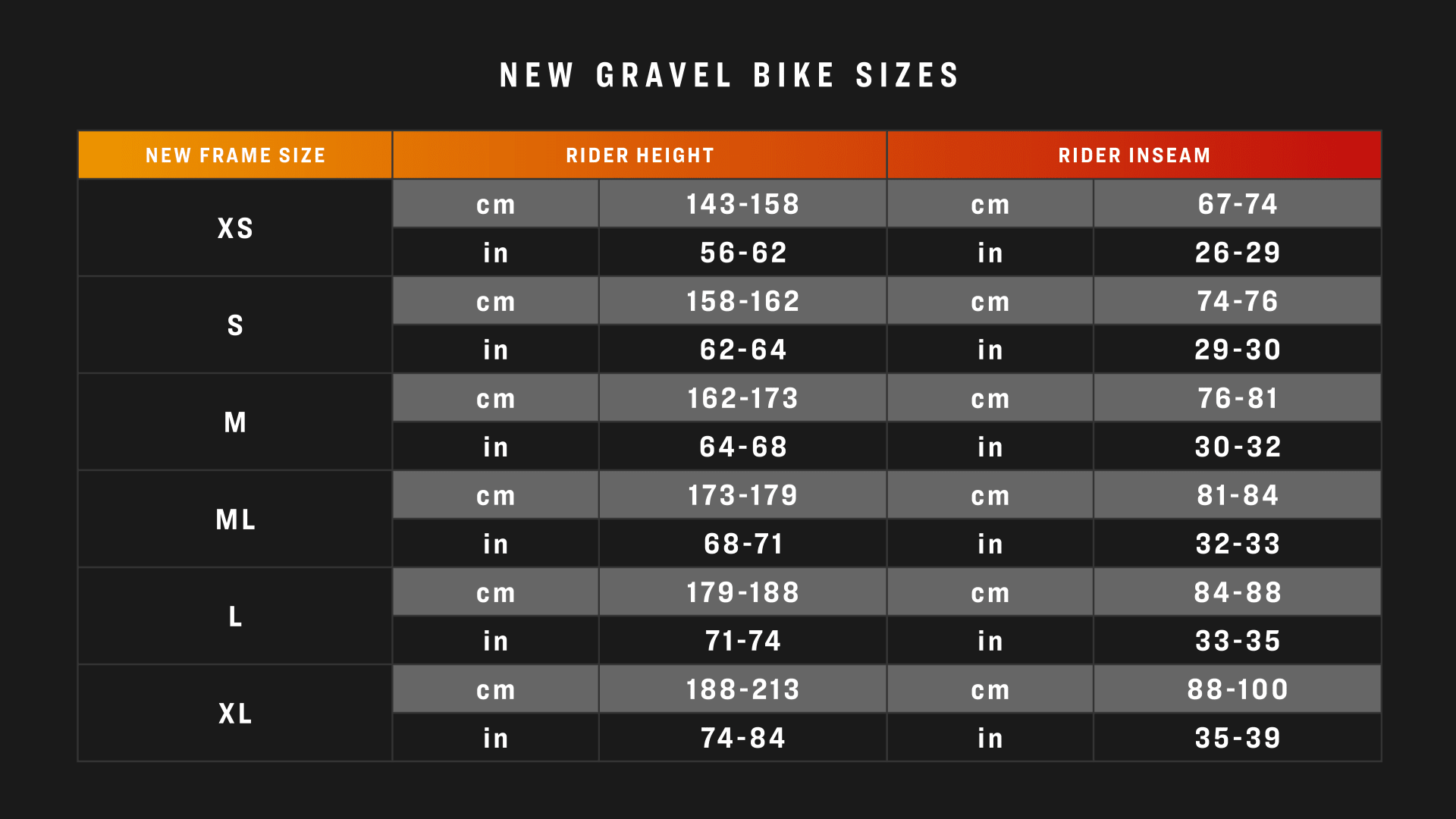

| Frame Size | Rider Height (cm) | Rider Height (') | Inseam (cm) | Inseam (") |
| XS | 143 - 158 cm | 4'8" - 5'2" | 67 - 74 cm | 26" - 29" |
| S | 158 - 162 cm | 5'2" - 5'4" | 74 - 76 cm | 29" - 30" |
| M | 162 - 173 cm | 5'4" - 5'8" | 76 - 81 cm | 30" - 32" |
| ML | 173 - 179 cm | 5'8" - 5'10" | 81 - 84 cm | 32" - 33" |
| L | 179 - 188 cm | 5'10" - 6'2" | 84 - 88 cm | 33" - 35" |
| XL | 188 - 213 cm | 6'2" - 7'0" | 88 - 100 cm | 35" - 39" |

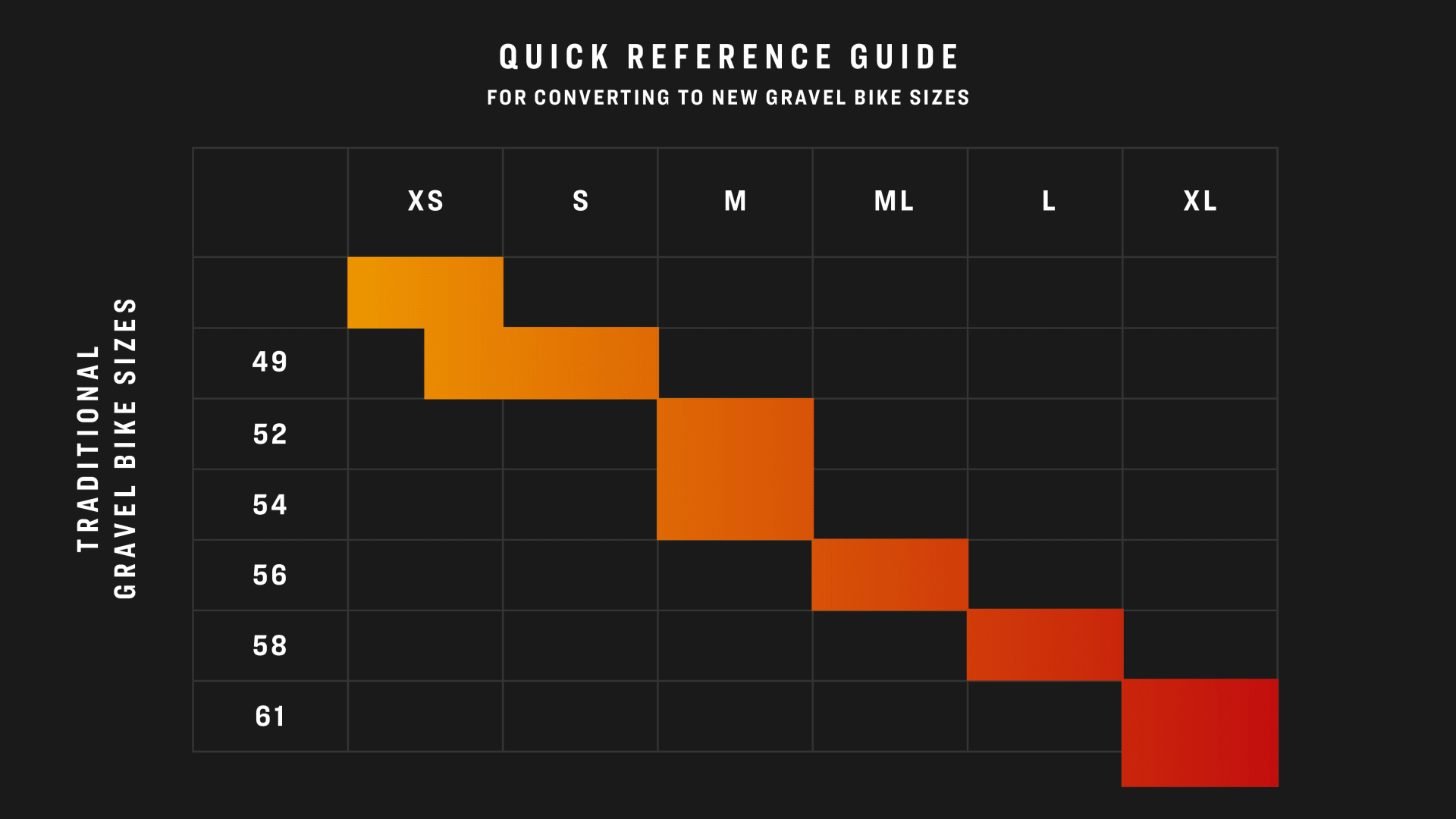

Geometry for Trek Checkpoint SL
| Frame size number | 49 cm | 52 cm | 54 cm | 56 cm | 58 cm | 61 cm |
| Frame size letter | XS | S | M | ML | L | XL |
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
| A —Seat tube | 44.5 | 48 | 50.5 | 53 | 55 | 57.5 |
| B —Seat tube angle | 74.0° | 74.0° | 73.3° | 73.3° | 73.3° | 73.3° |
| Effective seat tube angle | 72.7° | 73.0° | 72.8° | 72.8° | 72.8° | 72.8° |
| C —Head tube length | 8.6 | 10.6 | 13 | 15.1 | 17.1 | 19.1 |
| D —Head angle | 71.0° | 71.4° | 71.6° | 72.0° | 72.1° | 72.4° |
| E —Effective top tube | 53.6 | 54.7 | 56.6 | 57.8 | 58.9 | 60.1 |
| G —Bottom bracket drop | 7.6 | 7.6 | 7.6 | 7.6 | 7.6 | 7.6 |
| H —Chainstay length | 43 | 43 | 43 | 43 | 43 | 43 |
| I —Offset | 4.9 | 4.9 | 4.9 | 4.9 | 4.9 | 4.9 |
| J —Trail | 7.1 | 6.8 | 6.8 | 6.4 | 6.4 | 6.2 |
| K —Wheelbase | 101.3 | 102.2 | 103.4 | 104.2 | 105.2 | 106.2 |
| L —Standover | 74.7 | 77.6 | 80.2 | 82.3 | 84.3 | 86.5 |
| M —Frame reach | 38 | 38.6 | 39.1 | 39.7 | 40.2 | 40.8 |
| N —Frame stack | 53.5 | 55.6 | 57.9 | 60.1 | 62 | 64 |
| Saddle rail height min (w/short mast) | 56.2 | 58.9 | 63.2 | 67.2 | 71.3 | 75.5 |
This bike also has compatible accessories. They are:
FAQ

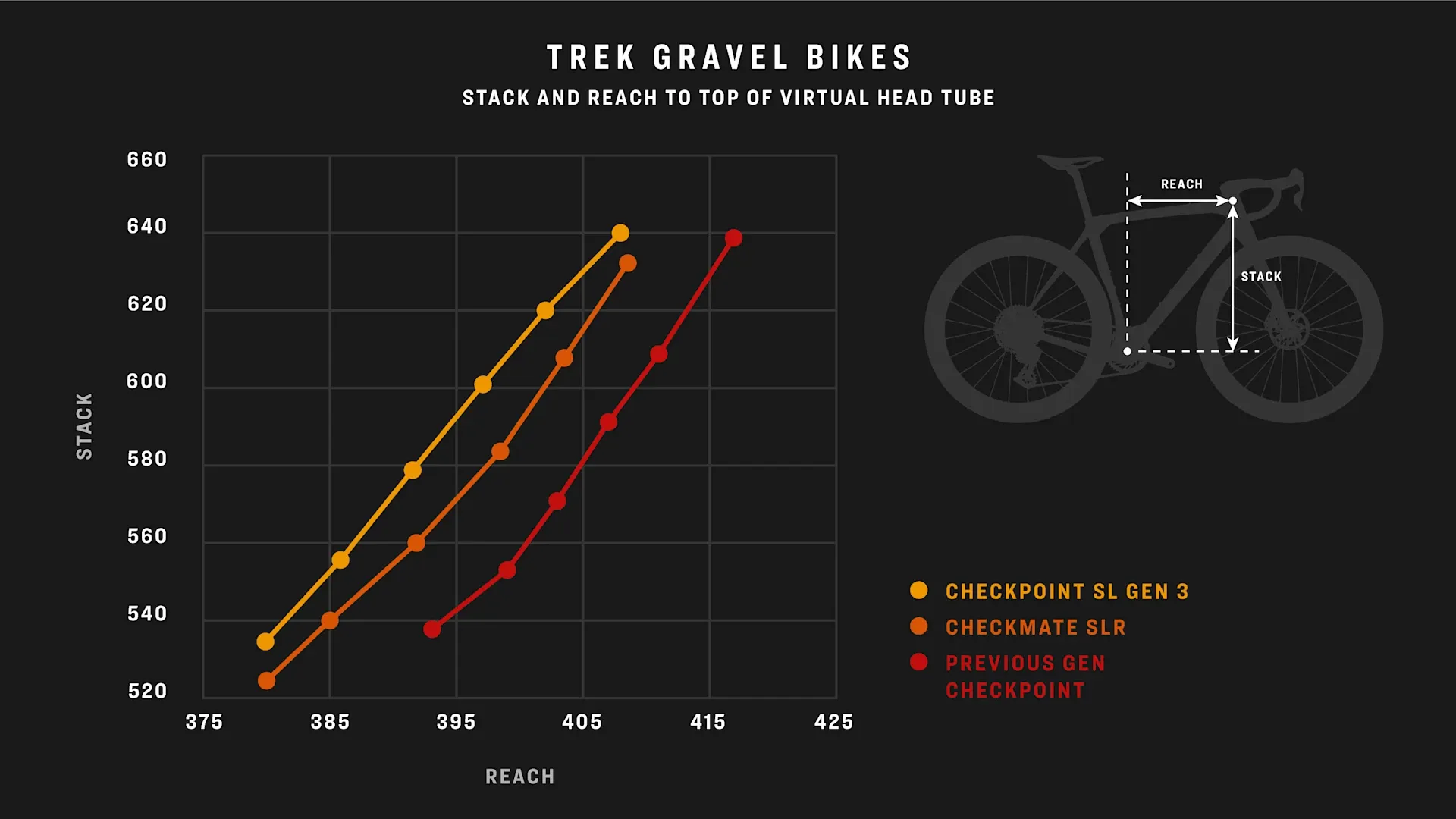

What is different about the frame compared to the previous generation Checkpoint SL?
- New Gravel Endurance geometry is revamped with shorter and higher reach for a more comfortable, accessible and capable all-day ride
- Improved internal downtube storage with more internal volume, a bigger door and a new BITS bag
- Still maintains the same top tube, frame, downtube, fork, mudguard and rear rack mounts of the previous Gen, but now also has mounts for a front rack
- Frame is now better optimised to store bigger volume bottles, even when the new Bontrager Adventure Half Frame Bag or Adventure Triangle Bag are mounted on the frame

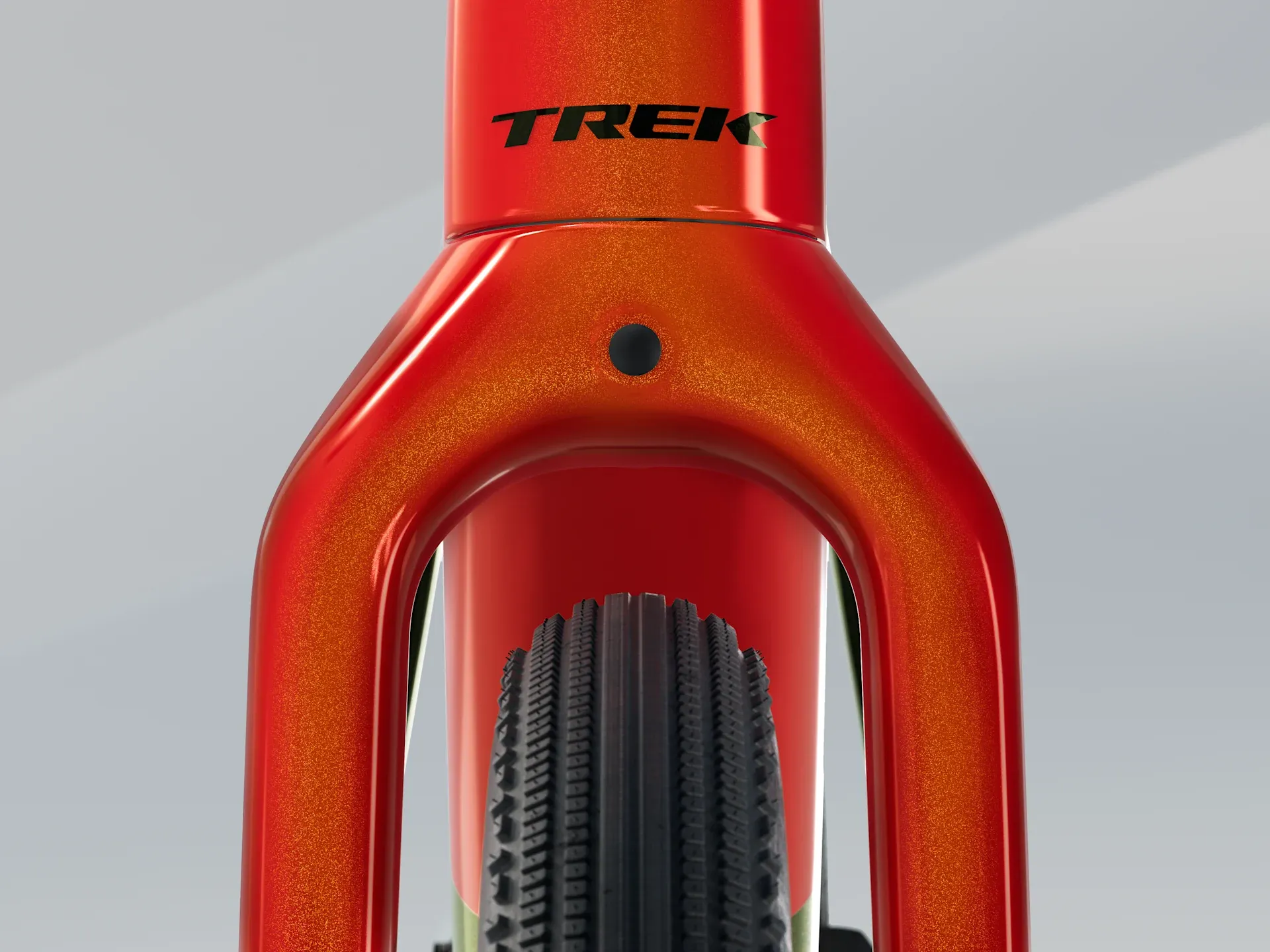

- Bigger tyre clearance can now fit up to 50mm gravel tyres (as measured)
- Now compatible with 40mm travel suspension fork (all sizes except XS)
- Maintains the same IsoSpeed comfort tech as before, but the hardware is now visible
- UDH (Universal Derailleur Hanger)
- RCS Headset System
- More robust chainstay guard
Does it have internal storage?Yes! And the internal storage area has been improved with more room to store essentials, along with a bigger storage door to get essentials inside the frame.
Is it compatible with a dropper post?Yes.

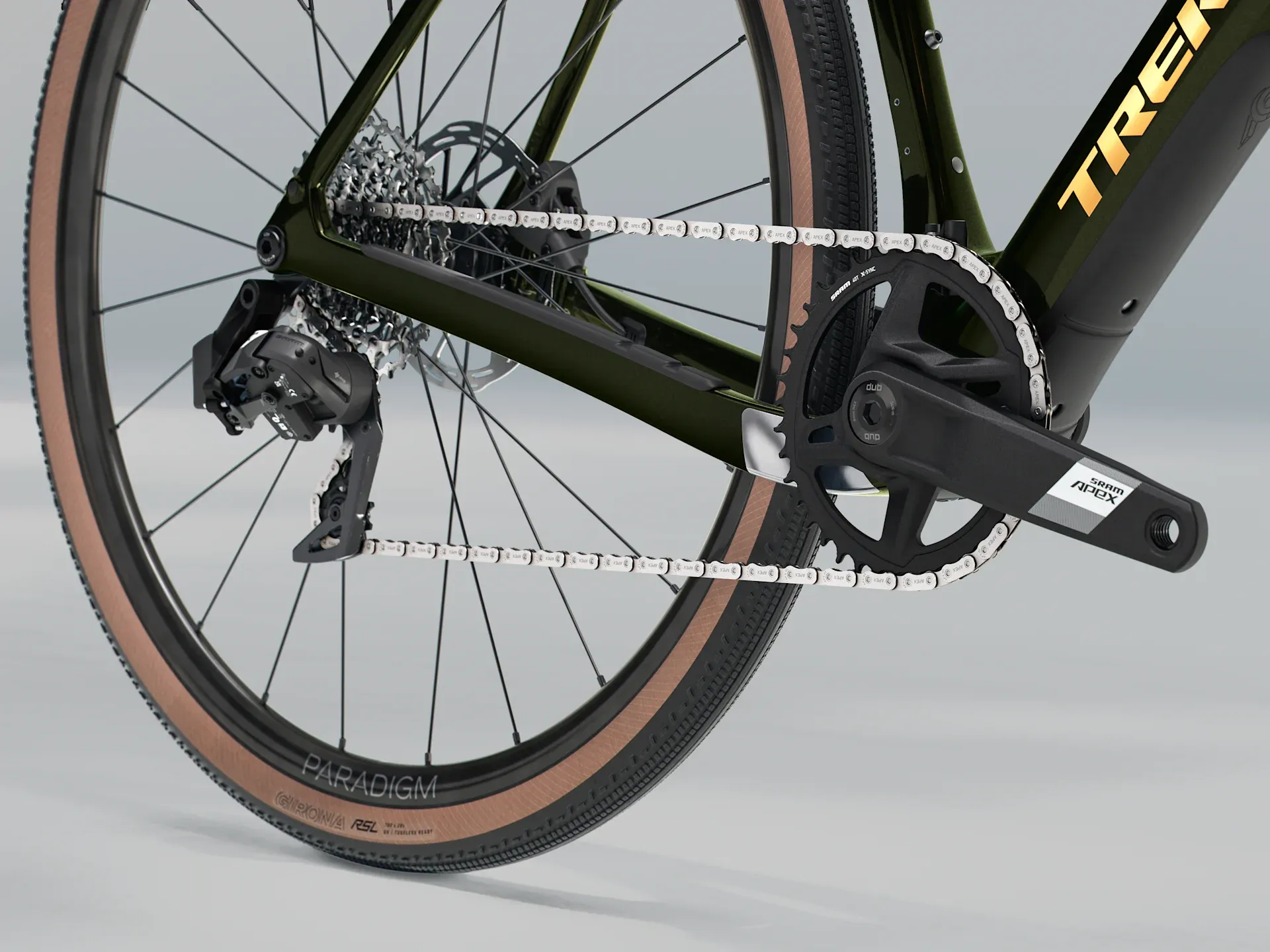

Is it compatible with mechanical drivetrains?Yes.

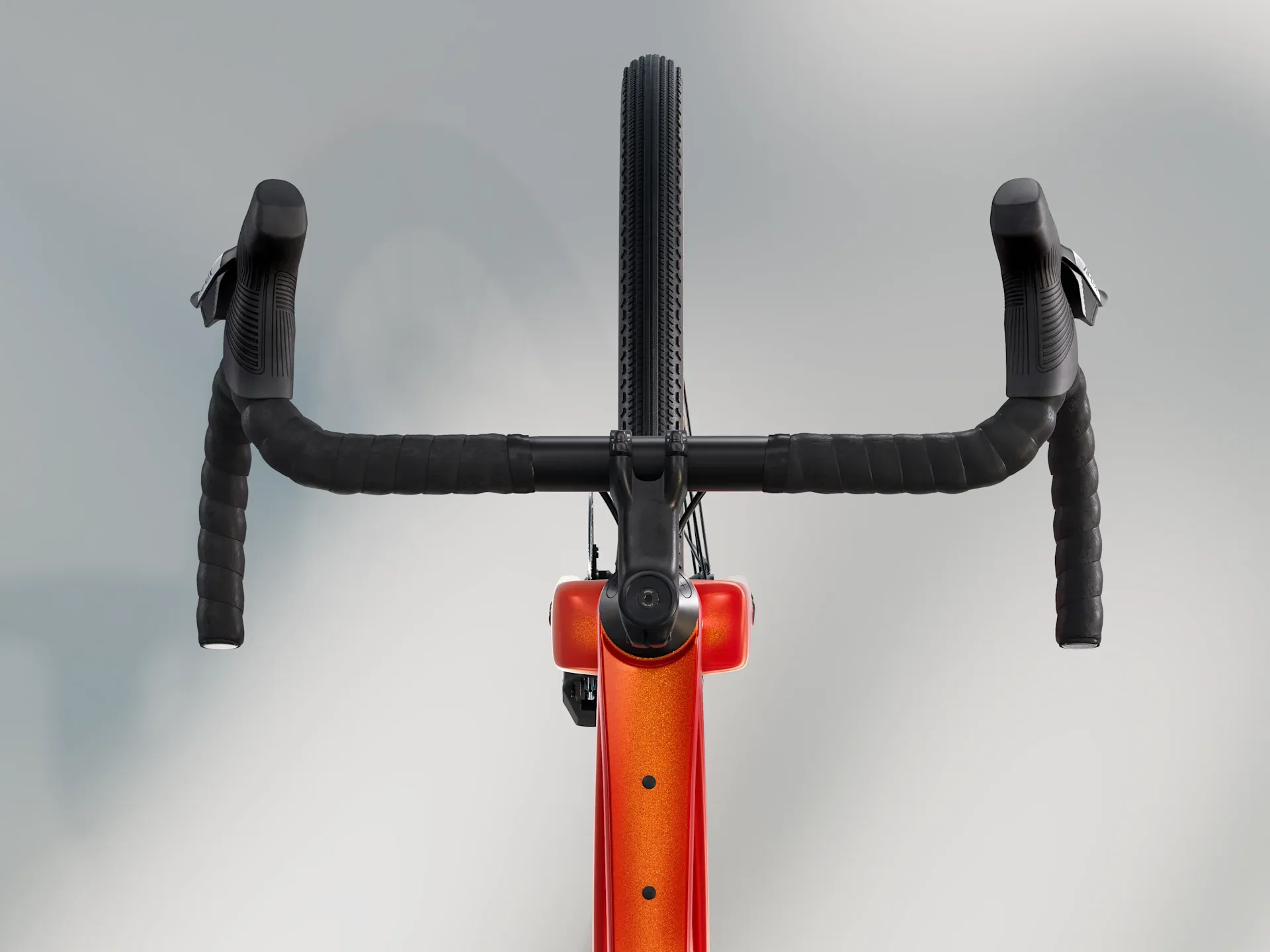

What’s the RCS Headset System? What stems are compatible with this bike?
The new RCS Headset System simplifies and standardises the parts needed to cover cockpit set-ups across models and between platforms:
- RCS Race: For use with the new RSL Aero bar/stem (included with Madone SLR Gen 8 and Checkmate SLR)
- RCS Pro: For use with the current RCS Pro Blendr stem (included with Madone SL Gen 8)
- RCS Universal: For use with traditional round stems
What is UDH (universal derailleur hanger)?
The Universal Derailleur Hanger consolidates thousands of hanger options across the industry. It protects your derailleur against chain jams by pivoting back and out of the way and slips slightly when encountering impacts. It improves shifting performance, guarantees better alignment and works with all drivetrains. Plus, if you ever need a replacement, it will be available everywhere.
Warranty Information for Trek:
Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.
2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.
For full warranty policy please visit trekbikes.com
