Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.

Giant

Giant Revolt Advanced 1 Rival Gravel Bike 2023 in Cordovan

£2,099.00 £2,999.00 30% off

Size Guide

Earn

in Customer Rewards when you buy this item today

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Earn Rewards

When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

Any item, except food, face masks or e-gift vouchers (full e-gift vouchers T&Cs are listed on the respective product pages) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase. It is recommended that you use a recorded delivery service to ensure your items are received by us. We cannot assume responsibility for items that are lost in the post.

Online or in-store purchases can both be returned to any store free of charge or can be returned by post after completing the online returns form. If you are returning an item due to a fault, we will refund your postage.

If you wish to return your bike to us, please keep the box it arrived in and let us know using the returns form and we will arrange collection.

Customer Returns Form

If you wish to cancel, return or exchange an order please fill in the form below. Returns can be processed quicker if all required information is added.

Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the products have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:

1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £24.99 for collection. If you do not have the original box, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid receipt.

Giant Revolt Advanced 1 Rival Gravel Bike 2023 in Cordovan

Season:2023

Brand:Giant

Code:2312009Cordovan

Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.

An advanced composite frame and fork save more than 160 grams compared to previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.

Key Features & Benefits:

Advanced-Grade Carbon-fibre Composite:Saves more than 160 grams compared to previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.
Tuned Compliance:Dropped seatstays with thin tubing absorbs road shocks and vibrations.

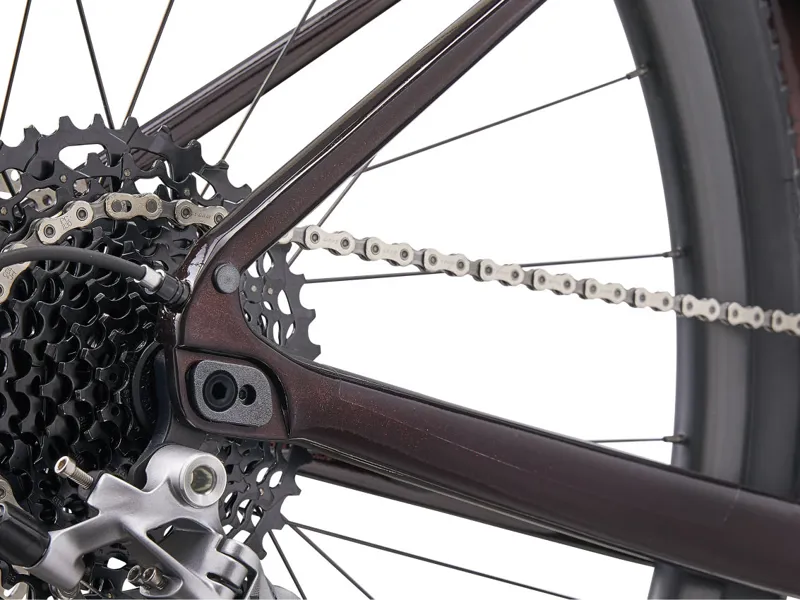

Flip Chip on Rear Dropout:Adjusts the wheelbase: short for quicker handling, or long for improved stability at speed.

Full Specification:

Frame:Advanced-Grade Composite, 12x142mm thru-axle
Fork:Advanced-Grade Composite, Full-Composite OverDrive Steerer, 12x100mm thru-axle
Gears:11
Gear Shifters:SRAM Rival 1 HRD 1x11
Chainset:SRAM Rival 1 Wide 40T
Chainrings:40T
Rear Cassette:SRAM Rival, 11-speed, 11x42
Chain:SRAM PC 1130
Front Derailleur:N/A
Rear Derailleur:SRAM Rival 1
Bottom Bracket:SRAM DUB, press fit
Pedals:Not Included
Rims:Giant P-X2 Disc Wheelset (25mm inner rim width)
Front Hub:Giant P-X2 Disc Wheelset (25mm inner rim width)
Rear Hub:Giant P-X2 Disc Wheelset (25mm inner rim width)
Front Tyre:Maxxis Rambler, tubeless 700x45c
Rear Tyre:Maxxis Rambler, tubeless 700x45c
Brakes:SRAM Rival 1 HRD hydraulic disc brakes 160/160 rotors
Handlebars:Giant Contact XR D-Fuse
Stem:Giant Contact
Saddle:Giant Approach
Seatpost:Giant Contact Switch dropper
Accessories:Tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position
Weight:N/A

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Sizing Chart for Giant Revolt & Revolt Advanced

Frame Size	Rider Height (cm)
XS	155 - 166
S	159 - 171
M	169 - 181
ML	174 - 186
L	179 - 191
XL	189 - 200

Geometry Chart for Giant Revolt

		S	M	ML	L	XL
		SHORT\|LONG	SHORT\|LONG	SHORT\|LONG	SHORT\|LONG	SHORT\|LONG
A	SEAT TUBE LENGTH(mm)	450	470	490	510	530
B	SEAT TUBE ANGLE	73.5°	73.5°	73.0°	73.0°	73.0°
C	TOP TUBE LENGTH(mm)	550	560	575	585	600
D	HEAD TUBE LENGTH(mm)	135	150	165	180	195
E	HEAD TUBE ANGLE	71.0°	71.5°	72.0°	72.0°	72.0°
F	FORK RAKE(mm)	50	50	50	50	50
G	TRAIL(mm)	72\|75	68\|72	65\|68	65\|68	65\|68
H	WHEELBASE(mm)	1025\|1035	1030\|1040	1035\|1045	1045\|1055	1061\|1071
I	CHAIN STAY LENGTH(mm)	430\|440	430\|440	430\|440	430\|440	430\|440
J	BOTTOM BRACKET DROP(mm)	80\|81	80\|81	80\|81	80\|81	80\|81
K	STACK(mm)	570	586	602	616	630
L	REACH(mm)	381	387	391	397	407
M	STAND OVER HEIGHT(mm)	734\|741	752\|759	769\|776	786\|793	801\|810
N	HANDLEBAR WIDTH(mm)	420	440	440	460	460
O	STEM LENGTH(mm)	80	90	100	100	110
P	CRANK LENGTH(mm)	170	172.5	172.5	175	175
Q	WHEEL SIZE	700C	700C	700C	700C	700C

Geometry Chart for Giant Revolt Advanced

		S	M	ML	L	XL
		SHORT\|LONG	SHORT\|LONG	SHORT\|LONG	SHORT\|LONG	SHORT\|LONG
A	SEAT TUBE LENGTH(mm)	450	470	490	510	530
B	SEAT TUBE ANGLE	73.5°	73.5°	73.0°	73.0°	73.0°
C	TOP TUBE LENGTH(mm)	550	560	575	585	600
D	HEAD TUBE LENGTH(mm)	135	150	165	180	195
E	HEAD TUBE ANGLE	71.0°	71.5°	72.0°	72.0°	72.0°
F	FORK RAKE(mm)	50	50	50	50	50
G	TRAIL(mm)	72\|75	68\|72	65\|68	65\|68	65\|68
H	WHEELBASE(mm)	1020\|1030	1026\|1036	1031\|1041	1041\|1051	1056\|1066
I	CHAIN STAY LENGTH(mm)	425\|435	425\|435	425\|435	425\|435	425\|435
J	BOTTOM BRACKET DROP(mm)	80\|81	80\|81	80\|81	80\|81	80\|81
K	STACK(mm)	570	586	602	616	630
L	REACH(mm)	381	387	391	397	407
M	STAND OVER HEIGHT(mm)	740\|747	757\|764	774\|780	791\|797	807\|814
N	HANDLEBAR WIDTH(mm)	420	440	440	460	460
O	STEM LENGTH(mm)	60	70	80	80	90
P	CRANK LENGTH(mm)	170	172.5	172.5	175	175
Q	WHEEL SIZE	700C	700C	700C	700C	700C

Warranty Information for Giant

Component	Warranty Period
Bicycle frame (Downhill excluded)	Lifetime
Rigid Forks	10 Years
Downhill frame	3 Years
Giant own brand components, Pedals, grips, bar tape, saddle, Paint & Decals	2 Years
Electronic E-bike components including battery	2 Years (or 600 charge cycles)

For full warranty policy please visit giant-bicycles.com
