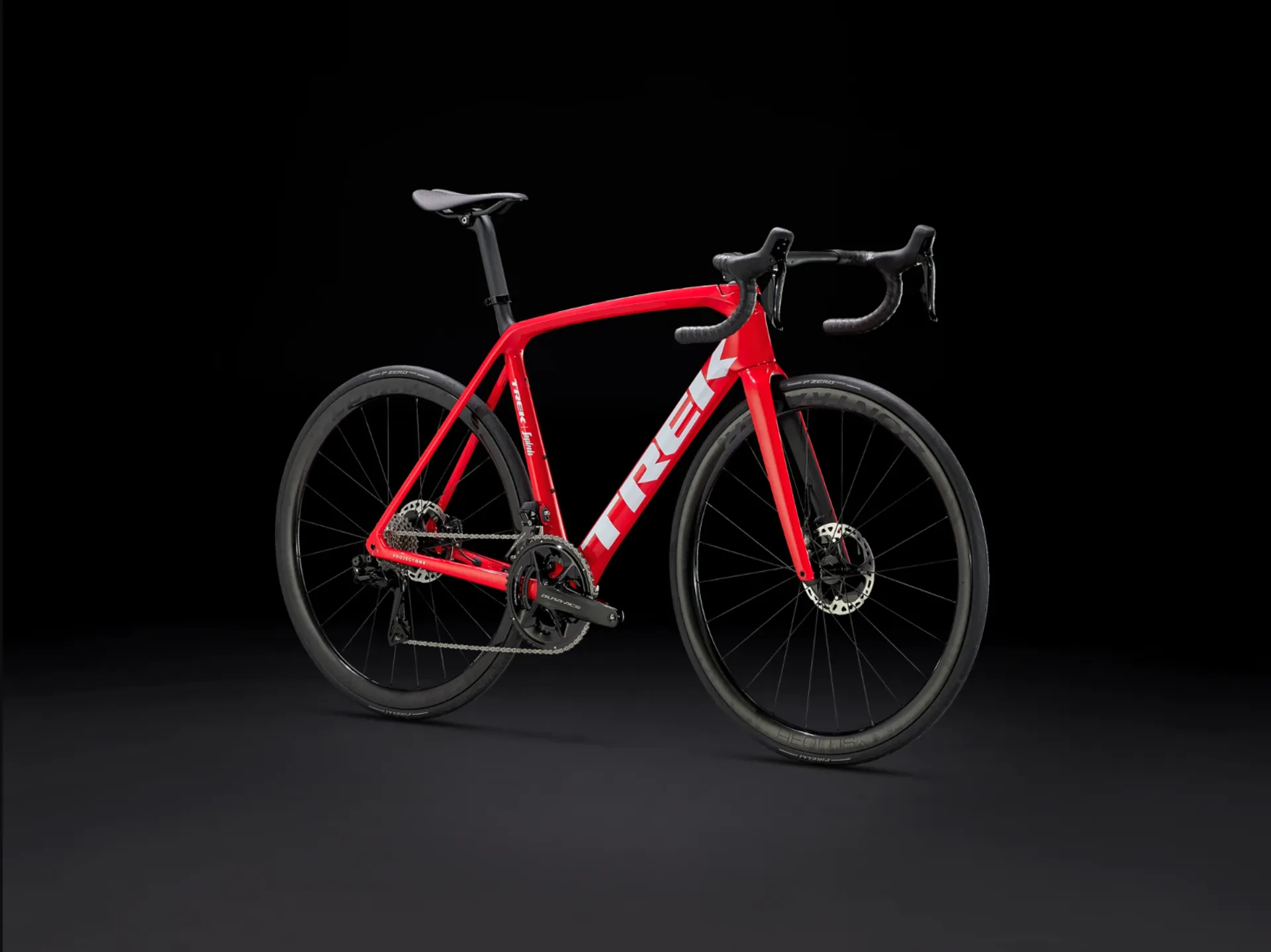

Trek Emonda SLR 9 Carbon Road Bike 2024 in Viper Red

Season:2024

Brand:Trek

Code:35715VIPRED

Trek's fastest climbing bike is aero, weighs in at less than 700g, and rides like a dream.

Émonda SLR 9 Disc is an ultra-light, aerodynamic carbon road bike that's designed and built to be the fastest climbing bike we've ever made. You get the legendary ride quality of our lightest platform, plus more speed, thanks to aero tubes wrought from our lightest OCLV lay-up ever. Shimano's highest-end wireless electronic drivetrain and our best climbing wheels give you every edge against the competition.

All-new wireless Shimano Dura-Ace Di2 delivers faster, smoother and more responsive shifts than ever - 12-speed drivetrains have wider range cassettes and smaller jumps between gears, allowing riders to easily find the right cadence, & elite wireless performance on both new drivetrains ditch shifter gear wires, allowing for faster shifting and a cleaner front end.Better brakes - Shimano adds Servo Wave to both Dura-Ace Di2 and Ultegra Di2, allowing for better pad-to-rotor clearance and delivering a simplified bleed process that’s sure to please your shop’s mechanics.

Great is for everyone else. You want the best, just like the pros of Trek-Segafredo, and that's our lightest, fastest road bike ever, stacked with tech that delivers an incredible difference in performance.

An ultra-light and aerodynamic 800 Series OCLV Carbon frame that weighs under 700 grams, an all-new 2x12 Shimano Dura-Ace Di2 wireless electronic drivetrain, ultra-light, fast and stable Bontrager Aeolus RSL 37 OCLV Carbon tubeless ready wheels, an Aeolus RSL OCLV Carbon integrated aero bar/stem and powerful hydraulic disc brakes.

Everything about this bike is ultra-light and ultra-fast, from the aero frame to the carbon wheels, to the precise, reliable shifting of the all-new wireless electronic Dura-Ace Di2 drivetrain.

Key Features:

  • New Shimano Dura-Ace Di2:featuring a 12-speed drivetrain that has wider range cassettes and smaller jumps between gears, allowing riders to easily find the right cadence.
  • Carbon Fibre Frame:Ultra lightweight, weighing under 700g, to give you a competitive advantage
  • Bontrager Aeolus RSL 37 Wheel:The Aeolus RSL 37 wheels are designed for climbing, and were developed alongside Émonda

Full Specification:

  • Frame:Ultralight 800 Series OCLV Carbon, Ride Tuned performance tube optimisation, tapered head tube, internal routing, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
  • Fork:Emonda SLR full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm thru axle
  • Number of Gears:24
  • Gear Shifters:Shimano Dura-Ace Di2 R9270 12 Speed
  • Chainset:Shimano Dura-Ace R9200, 52/36, 165-175 mm
  • Chainrings:52/36T
  • Rear Cassette:Shimano Dura-Ace R9200, 11-34, 12-speed
  • Chain:ShimanoXTR M9100, 12-speed
  • Front Derailleur:Shimano Dura-Ace Di2 R9250 12 Speed
  • Rear Derailleur:Shimano Dura-Ace Di2 R9250 12 Speed
  • Bottom Bracket:Praxis, T47 threaded, internal bearing
  • Pedals:Not supplied:Shop pedals here
  • Rims:Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth
  • Front Hub:Bontrager Aeolus RSL 37, 100x12 mm thru axle
  • Rear Hub:Bontrager Aeolus RSL 37, 142x12 mm thru axle
  • Front Tyre:Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 c
  • Rear Tyre:Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 c
  • Brakes:Shimano Dura-Ace hydraulic disc brake
  • Handlebars:Bontrager Aeolus RSL Integrated bar/stem, OCLV Carbon, Di2 routing,
  • Handlebar Tape:Bontrager Supertack Perf tape
  • Headset:Integrated
  • Stem:Bontrager Aeolus RSL Integrated bar/stem, OCLV Carbon, Di2 routing,
  • Saddle:Bontrager Aeolus Pro, carbon rails, 145 mm width
  • Seatpost:Bontrager carbon seat mast cap, 20 mm offset
  • Accessories:N/A
  • Weight:56 - 6.60 kg / 14.56 lbs
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Sizing Chart for Trek Emonda SL & SLR Disc Road Bike

This chart can give a recommendation on which size may be best for you, however for the best results, please contact us or visit your local Balfe’s store for a personal consultation and test ride.
Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
47152-1584'11.8" - 5'2.2"71-7528-29.5
50158-1635'2.2" - 5'4.2"74-7729.1-30.3
52163-1685'4.2" - 5'6.1"76-7929.9-31.1
54168-1745'6.1" - 5'8.5"78-8230.7-32.3
56174-1805'8.5" - 5'10.9"81-8531.9-33.5
58180-1855'10.9" - 6'0.8"84-8733.1-34.3
60185-1906'0.8" - 6'2.8"86-8933.9-35.4
62190-1956'2.8" - 6'4.8"89-9235.0-36.2

Geometry for Trek Emonda SL & SLR Unisex Carbon Road Bike

All measurements in cm unless stated otherwise

Frame size number47 cm50 cm52 cm54 cm56 cm58 cm60 cm62 cm
Wheel size700c700c700c700c700c700c700c700c
A — Seat tube42.445.348.349.652.555.357.359.3
B — Seat tube angle74.6°74.6°74.2°73.7°73.3°73.0°72.8°72.5°
C — Head tube length1011.112.113.115.117.119.121.1
D — Head angle72.1°72.1°72.8°73.0°73.5°73.8°73.9°73.9°
E — Effective top tube51.252.153.454.355.957.458.659.8
G — Bottom bracket drop7.27.27.2776.86.86.8
H — Chainstay length414141414141.141.141.2
I — Offset4.54.54.54.54444
J — Trail6.86.25.85.65.85.75.65.6
K — Wheelbase97.297.497.798.198.399.2100.1101
L — Standover69.271.173.274.476.879.381.182.9
M — Frame reach37.337.838.338.639.139.639.940.3
N — Frame stack50.752.153.354.156.358.160.162
Stem length70809090100110110110
Saddle rail height min (w/short mast)55.558.561.56467697173
Saddle rail height max (w/short mast)61.564.567.57073757779
Saddle rail height min (w/tall mast)59626567.570.572.574.576.5
Saddle rail height max (w/tall mast)65687173.576.578.580.582.5

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.
