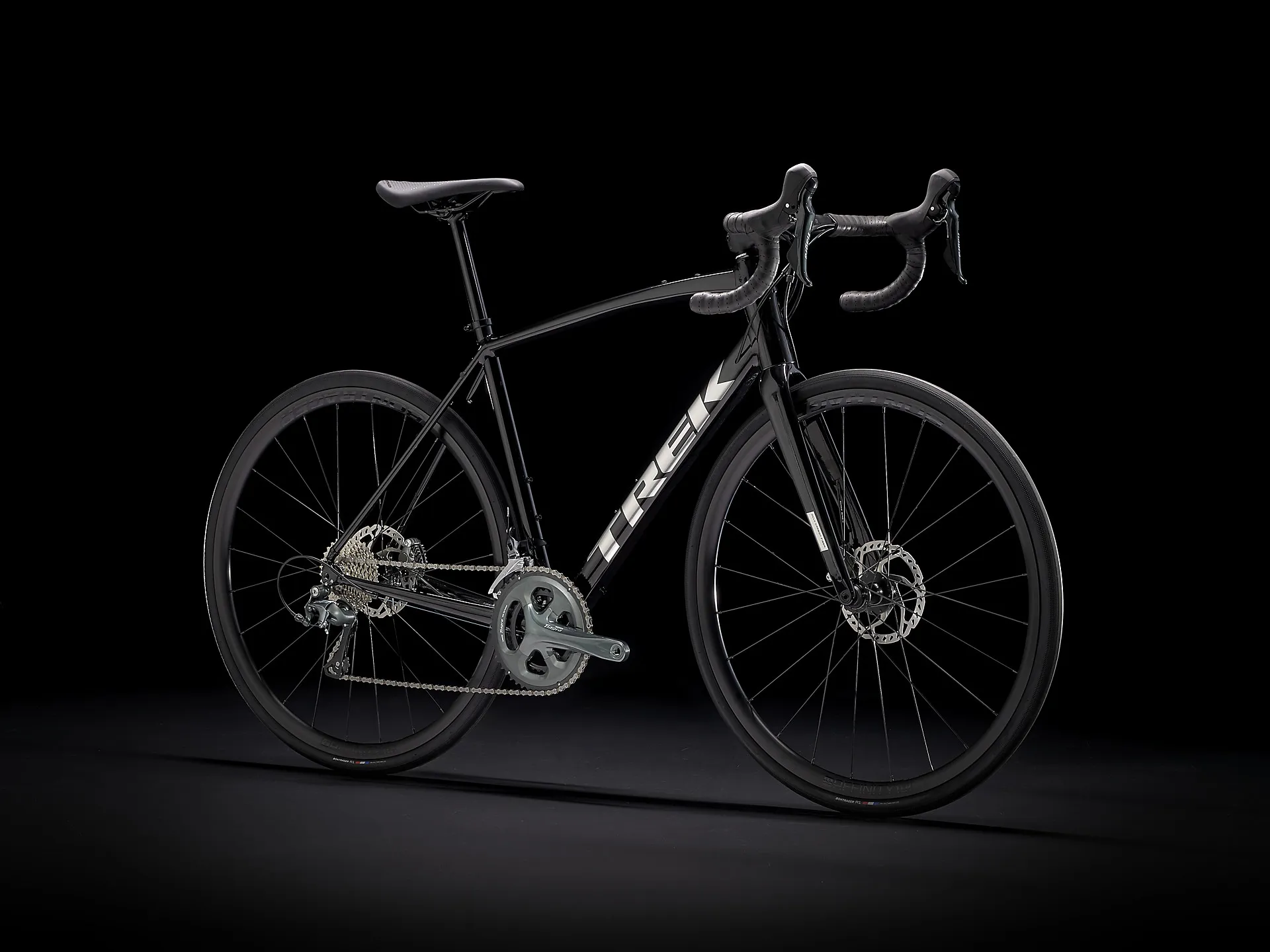

The Trek Domane AL 4 Disc road bike features a light, comfortable frame and quality parts make it an amazing platform for long, fast group rides.
The Trek Domane AL 4 Disc road bike features a light, comfortable frame and quality parts make it an amazing platform for long, fast group rides.
Trek

Trek Domane AL 4 Disc Sportive Road Bike 2022 in Black

£1,195.00 £1,625.00 26% off
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

Any item, except food, face masks or e-gift vouchers (full e-gift vouchers T&Cs are listed on the respective product pages) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase. It is recommended that you use a recorded delivery service to ensure your items are received by us. We cannot assume responsibility for items that are lost in the post.

Online or in-store purchases can both be returned to any store free of charge or can be returned by post after completing the online returns form. If you are returning an item due to a fault, we will refund your postage.

If you wish to return your bike to us, please keep the box it arrived in and let us know using the returns form and we will arrange collection.


Customer Returns Form

If you wish to cancel, return or exchange an order please fill in the form below. Returns can be processed quicker if all required information is added.



Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the products have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:

1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £24.99 for collection. If you do not have the original box, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid receipt.

Trek Domane AL 4 Disc Sportive Road Bike 2022 in Black

Season:2022

Brand:Trek

Code:330852021GLSBLKMATBLK

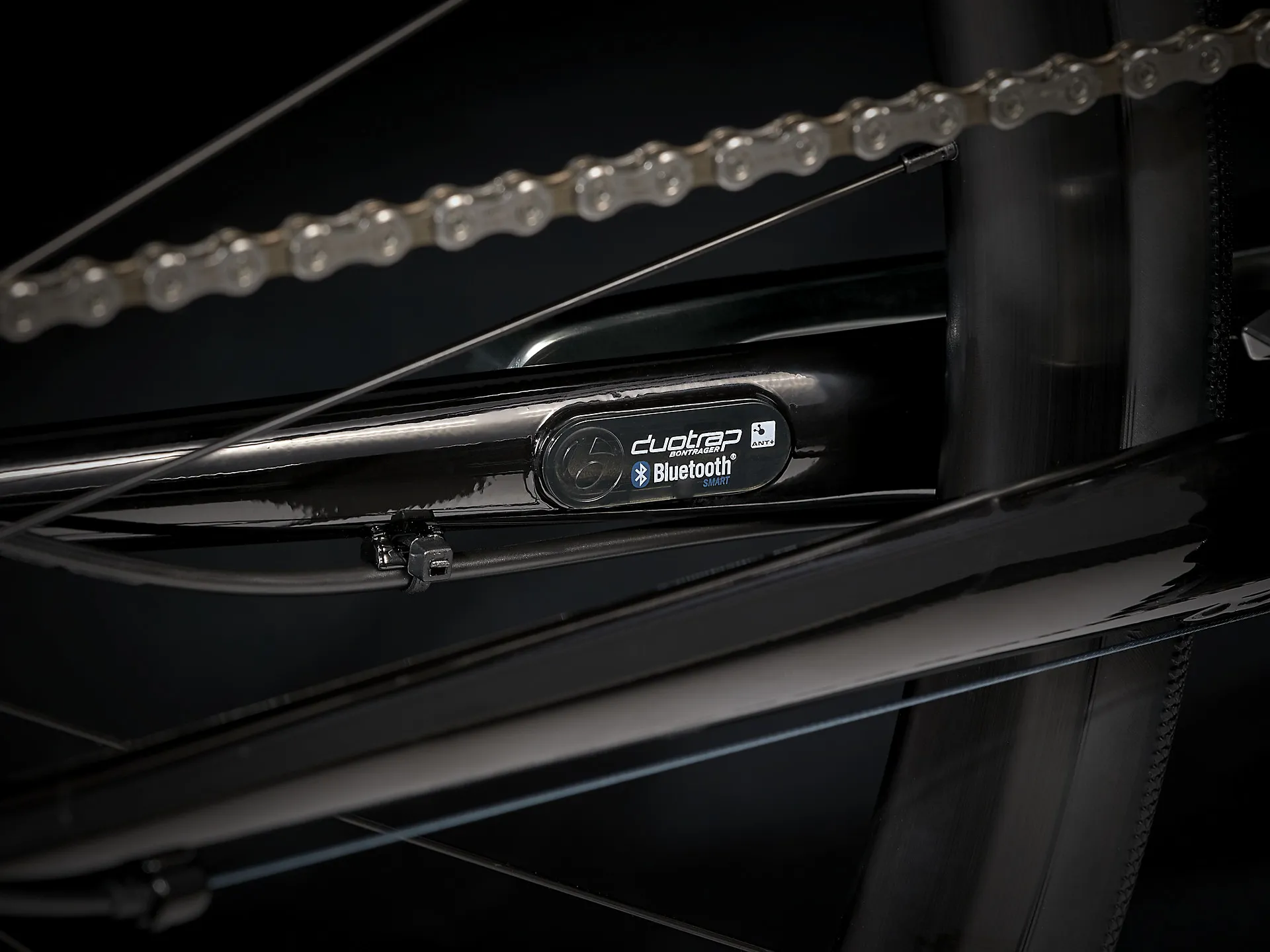

The Trek Domane AL 4 Disc road bike combines the smooth, comfortable qualities of an advanced alloy frame with the performance of higher-quality parts. It features crisp hydraulic disc brakes to give you more precise and consistent stopping power in any conditions. Bigger tyre clearance lets you run wider tyres for more traction and stability on rail trails and other light gravel roads, and DuoTrap S compatibility makes it easy to wirelessly track your rides, so you can set goals and watch yourself reach them.
The Domane AL 4 is a solid, comfort-first road bike with upgrades on the parts that matter – like the drive train and brakes. This bike is built for miles of fun, fast riding on the road and even light gravel.

Key Features & Benefits:

  • 20 Shimano Tiagra Gears: Proven reliable and suitable for riding on all terrain.
  • Aluminium Frame: Lightweight & stable, with Endurance Geometry for a confident ride.
  • IsoSpeed Carbon Fork: Absorbs vibrations from the road so your arms won't fatigue as quickly.

Full Specification:

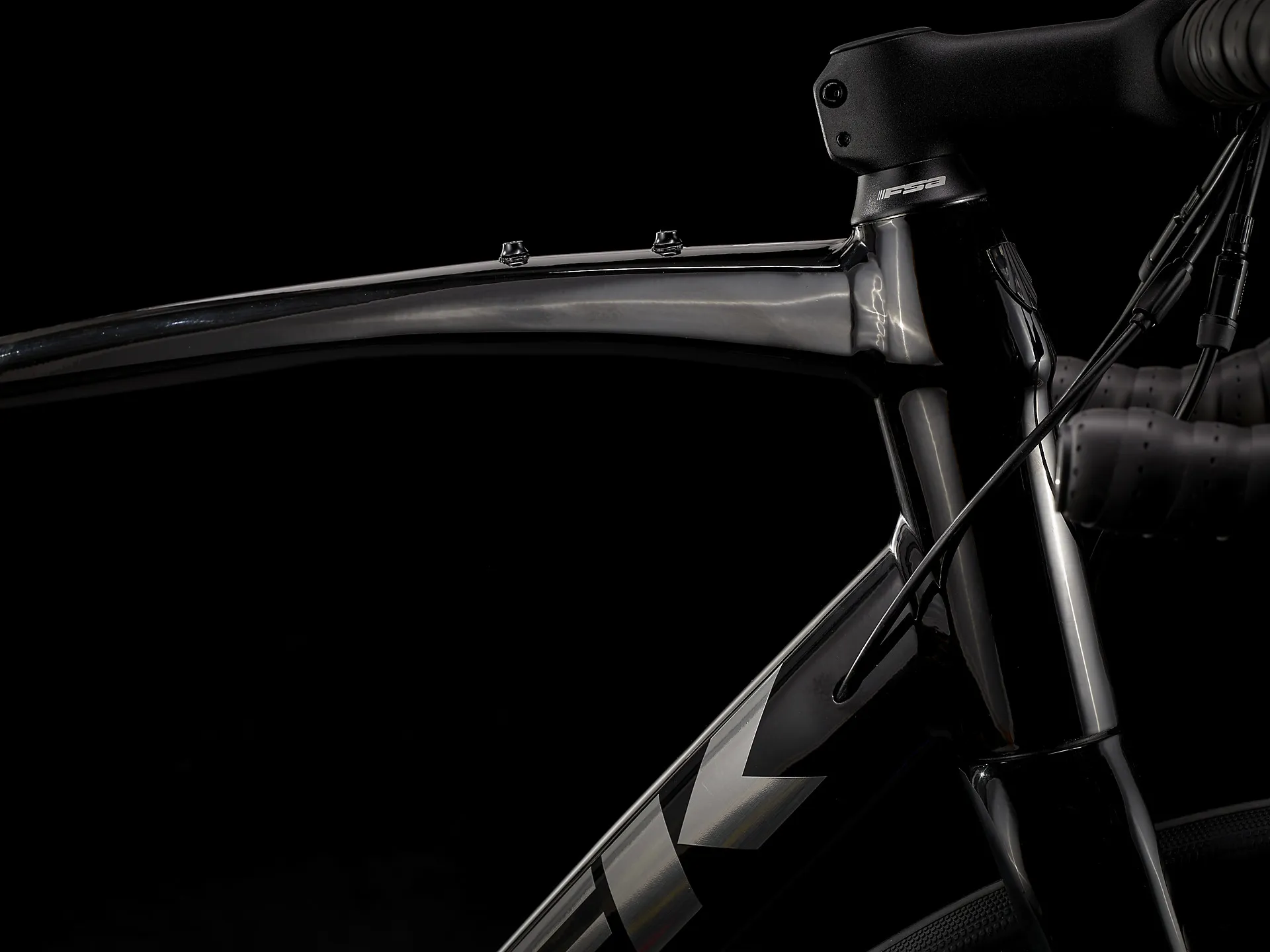

  • Frame: 100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
  • Fork: Domane AL carbon, tapered alloy steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle
  • Number of Gears: 20
  • Gear Shifters: Shimano Tiagra R4725, short-reach lever, 10-speed

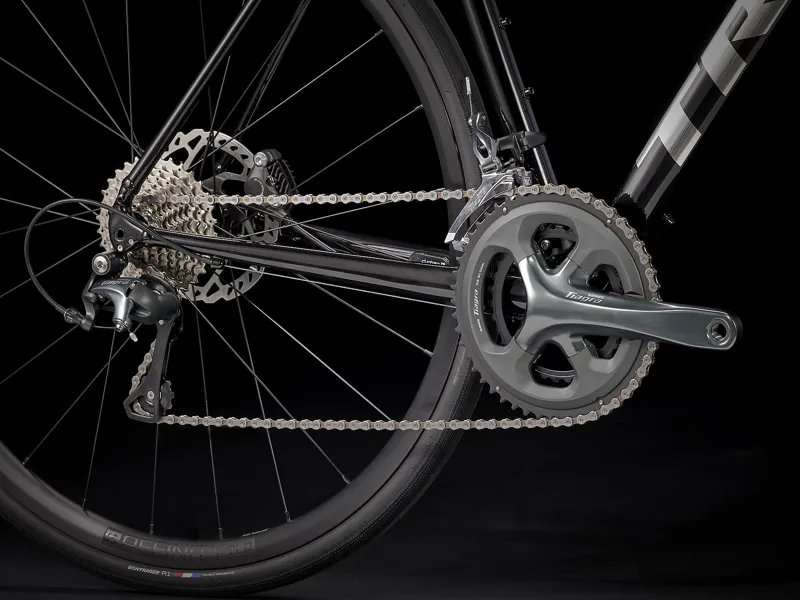

  • Chainset: Shimano Tiagra 4700
  • Chainrings: 50/34
  • Rear Cassette: Shimano 10-speed, 11-32T
  • Chain: Shimano Tiagra HG54, 10-speed
  • Front Derailleur: Shimano Tiagra 4700, 31.8 mm clamp
  • Rear Derailleur: Shimano Tiagra 4700, long cage, 34T max cog
  • Bottom Bracket: Shimano RS500, 68 mm, threaded external
  • Pedals: Not Included
  • Rims: Bontrager Affinity Disc, Tubeless Ready, 24-hole, 21 mm width, Presta valve
  • Front Hub: Formula RX-512 alloy, 6-bolt, 100x12 mm thru axle
  • Rear Hub: Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12 mm thru axle
  • Front Tyre: Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 c
  • Rear Tyre: Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 c
  • Brakes: Shimano Tiagra hydraulic disc

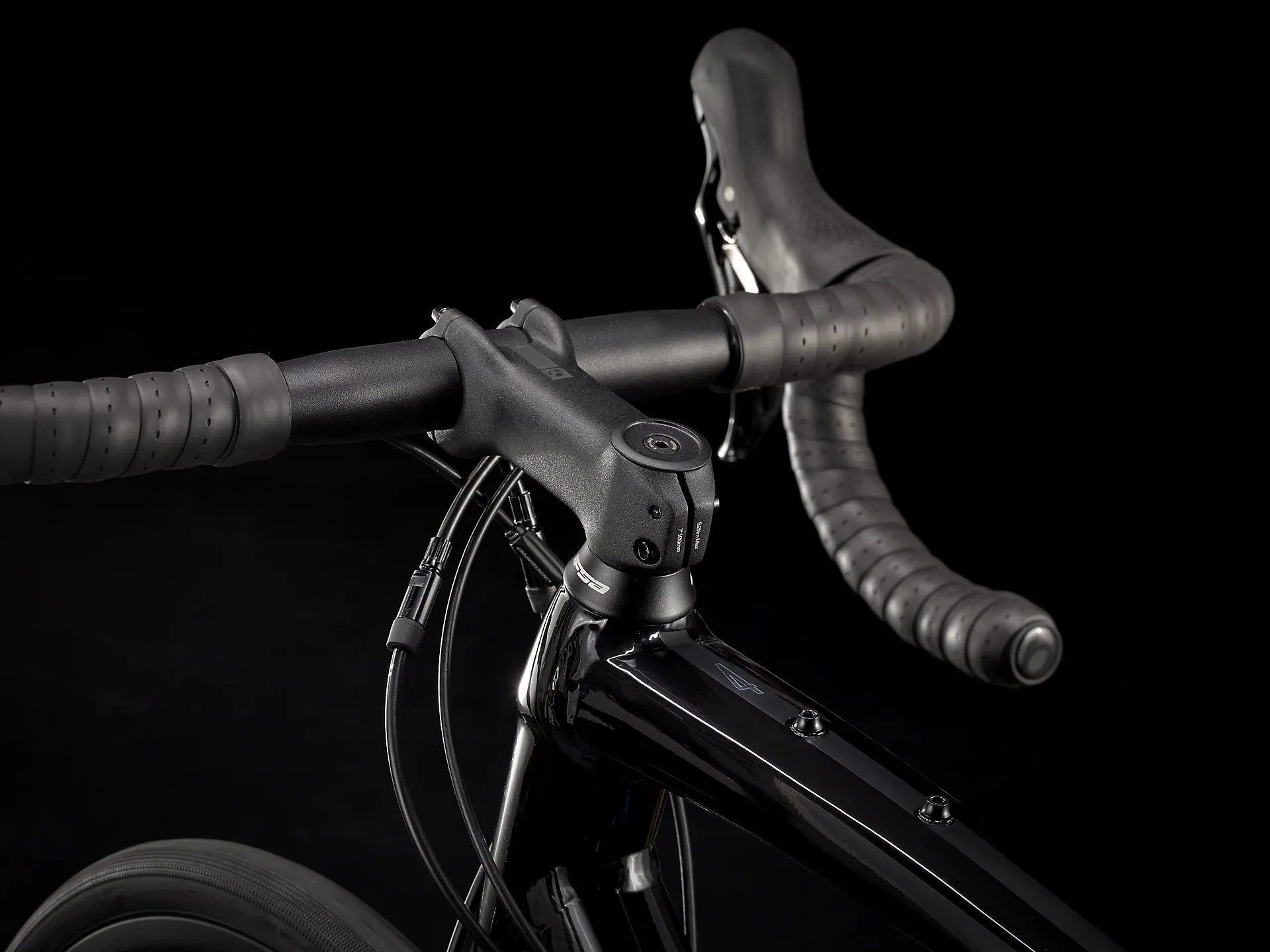

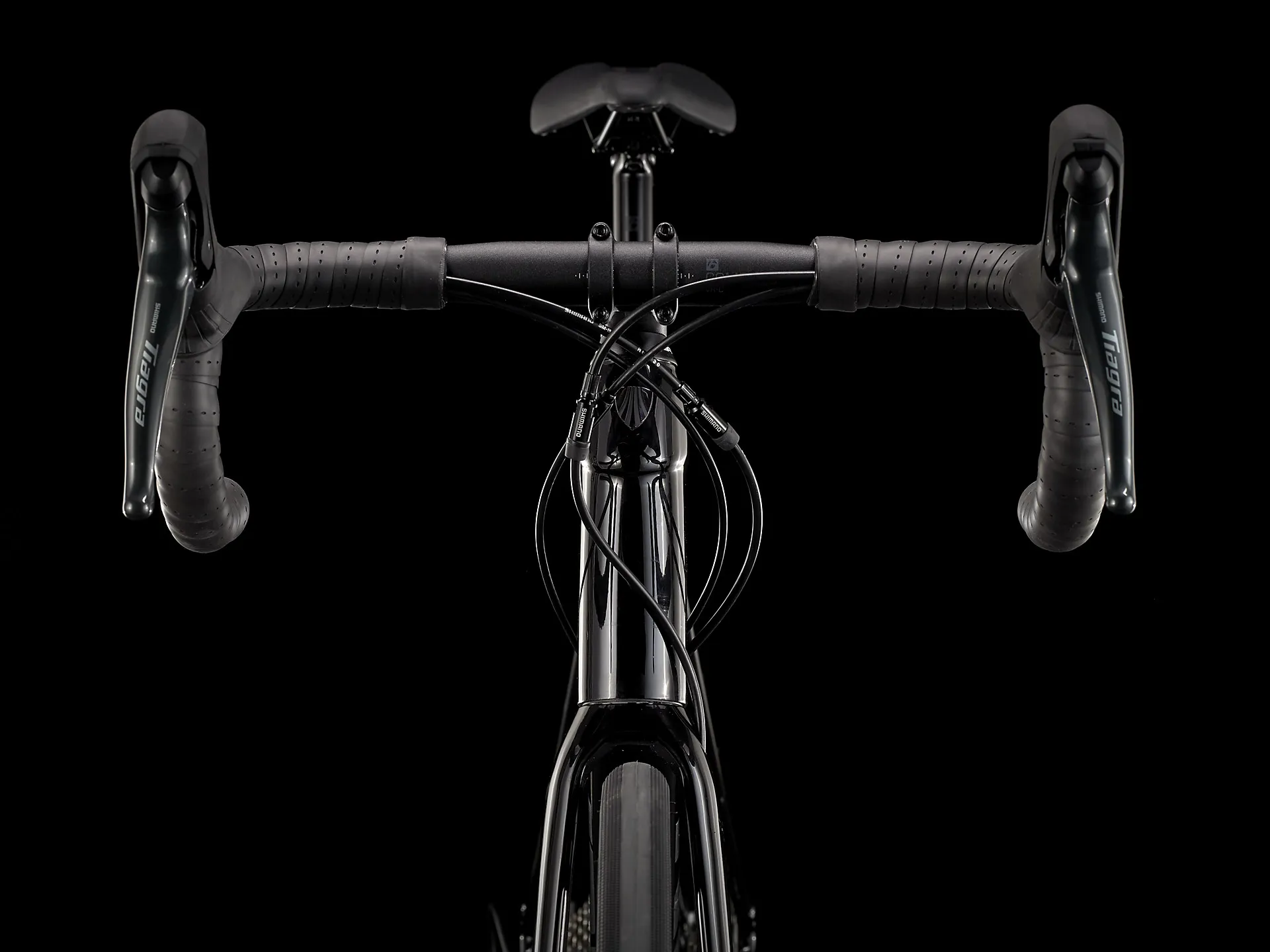

  • Handlebars: Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop
  • Handlebar Tape: Bontrager Supertack Perf tape
  • Headset: FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
  • Stem: Bontrager Elite 31.8 Blend-r compatble, 7-Degree
  • Saddle: Bontrager P3 Verse Comp, steel rails
  • Seatpost: Bontrager Comp 6061 alloy, 27.2 mm, 12 mm offset
  • Accessories: N/A
  • Weight: 56 - 10.48 kg / 23.11 lbs
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Sizing Chart for Trek Domane AL Unisex Road Bike

This chart can give a recommendation on which size may be best for you, however for the best results, please contact us or visit your local Balfe’s store for a personal consultation and test ride.
Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
44150-1534'11.1" - 5'0.2"71-7328-28.7
49156-1625'1.4" - 5'3.8"74-7729.1-31.1
52163-1685'4.2" - 5'6.1"76-7929.9-31.1
54168-1745'6.1" - 5'8.5"78-8230.7-32.3
56174-1805'8.5" - 5'10.9"81-8531.9-33.5
58180-1855'10.9" - 6'0.8"84-8733.1-34.3
61185-1916'0.8" - 6'3.2"86-9033.9-35.4

Geometry for Trek Domane AL Unisex Road Bike

Frame size number44 cm49 cm52 cm54 cm56 cm58 cm61 cm
Wheel size700c700c700c700c700c700c700c
A — Seat tube394447.55052.554.857.6
B — Seat tube angle74.6°74.6°74.2°73.7°73.3°73.0°72.7°
C — Head tube length9.512.314.51617.519.523.5
D — Head angle70.3°70.8°71.3°71.3°71.9°72.0°72.1°
E — Effective top tube50.751.65354.255.456.758.6
G — Bottom bracket drop88887.87.87.5
H — Chainstay length4242.542424242.542.5
I — Offset5.35.35.35.34.84.84.8
J — Trail6.66.65.95.96.166.3
K — Wheelbase98.3100.1100.3101101.8102.2103.8
L — Standover65.771.773.575.477.679.684.2
M — Frame reach3636.837.137.437.73838.5
N — Frame stack515456.157.559.161.164.6
Stem length70809090100100110

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com

Technical Information

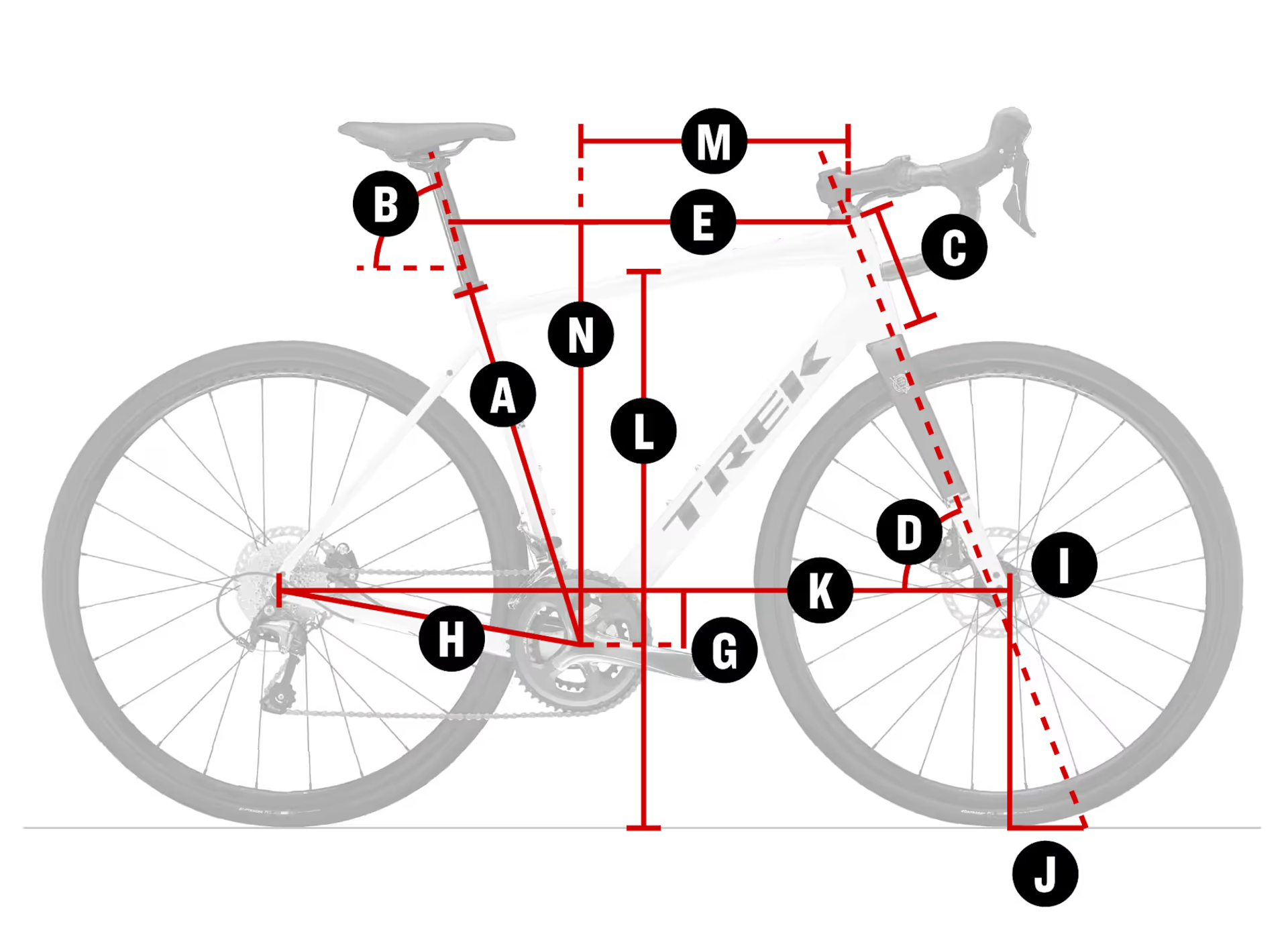

Geometry for Trek Domane AL4 Disc Sportive Road Bike

Trek Domane AL4 Disc Unisex Sportive Road Bike

All measurements in cm unless stated otherwise

Frame Size Number44495254565861
Wheel Size700c700c700c700c700c700c700c
A - Seat Tube39.044.047.550.052.554.857.6
B - Seat Tube Angle74.6°74.6°74.2°73.7°73.3°73.0°72.7°
C - Head Tube Length9.512.314.516.017.519.523.5
D - Head Angle70.3°70.8°71.3°71.3°71.9°72.0°72.1°
E - Effective TT Length50.751.653.054.255.456.758.6
G - BB Drop8.08.08.08.07.87.87.5
H - Chainstay length42.042.542.042.042.042.542.5
I - Offset5.35.35.35.34.84.84.8
J -Trail6.66.65.95.96.16.06.3
K - Wheelbase98.3100.1100.3101.0100.8102.2103.8
L - Standover65.771.773.575.477.679.684.2
M - Frame Reach36.036.837.137.437.738.038.5
N - Frame Stack51.054.056.157.559.161.164.6

Sizing Information

Sizing Chart for Trek Domane AL4 Unisex Sportive Road Bike

Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
44150-1534'11.1" - 5'0.2"71-7328-28.7
49156-1625'1.4" - 5'3.8"74-7729.1-31.1
52163-1685'4.2" - 5'6.1"76-7929.9-31.1
54168-1745'6.1" - 5'8.5"78-8230.7-32.3
56174-1805'8.5" - 5'10.9"81-8531.9-33.5
58180-1855'10.9" - 6'0.8"84-8733.1-34.3
61185-1916'0.8" - 6'3.2"86-9033.9-35.4

Professional Opinion

Trek Sportive Road Bikes: Trek Domane AL Family

Question(s) answered about Trek Domane AL 4 Disc Sportive Road Bike 2022 in Black
Ask a question
Question(s) asked regarding Trek Domane AL 4 Disc Sportive Road Bike 2022 in Black

Ask a question

Your name
Your email address
Your phone number
Your question
Submit Question  Close
  • Will the frame accept 35mm tyres?
    Question asked by lee on 18/01/2022 09:43:20
    The frame will let you run 35mm without fenders and 32mm with mudguards.
