Trek Marlin 6 Gen 3 Hardtail Mountain Bike 2023 is the perfect ride for progressing your skills on the trails.
Trek Marlin 6 Gen 3 Hardtail Mountain Bike 2023 is the perfect ride for progressing your skills on the trails.
Trek

Trek Marlin 6 Gen 3 Hardtail Mountain Bike 2023 in Hex Blue

£545.00 £650.00 16% off
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

Any item, except food, face masks or e-gift vouchers (full e-gift vouchers T&Cs are listed on the respective product pages) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase. It is recommended that you use a recorded delivery service to ensure your items are received by us. We cannot assume responsibility for items that are lost in the post.

Online or in-store purchases can both be returned to any store free of charge or can be returned by post after completing the online returns form. If you are returning an item due to a fault, we will refund your postage.

If you wish to return your bike to us, please keep the box it arrived in and let us know using the returns form and we will arrange collection.


Customer Returns Form

If you wish to cancel, return or exchange an order please fill in the form below. Returns can be processed quicker if all required information is added.



Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the products have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:

1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £24.99 for collection. If you do not have the original box, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid receipt.

Trek Marlin 6 Gen 3 Hardtail Mountain Bike 2023 in Hex Blue

Season:2023

Brand:Trek

Code:36966HexBLUtoDBLU

The Marlin 6 is the perfect ride for progressing your skills on the trails. Its updated slacker frame geometry makes it easier to control on descents while the suspension fork takes the edge off bumpy trails. Integrated rack and kickstand mounts make it easy to add accessories to this versatile steed.

You want a trail bike that's dialled for building confidence on the dirt, and versatile enough for commuting to work or school.

A lightweight aluminium frame with modern trail riding geometry and internal routing that keeps cables protected and keeps the bike looking sleek. A front suspension fork that cushions rocks, roots and bumps in the trail, 10-speed fuss-free Shimano Deore shifting and the serious stopping power of hydraulic disc brakes.

The Marlin 6 is an ideal trail bike for riders who want to progress on the trail, and want a bike that can keep them rolling off of the trail too.

Key Features & Benefits:

  • SR Suntour suspension fork:For comfort and control.
  • Tektro Hydraulic disc brakes:For reliable stopping in all conditions.
  • Shimano 10 speed gears:To get you up the steepest of hills with a simple 1 by setup
Please Note: XS frame size has a curved top tube and a lower standover height that makes it easier for smaller riders to mount and dismount. XS and S come with a 27.5" wheel and tyre.

Full Specification:

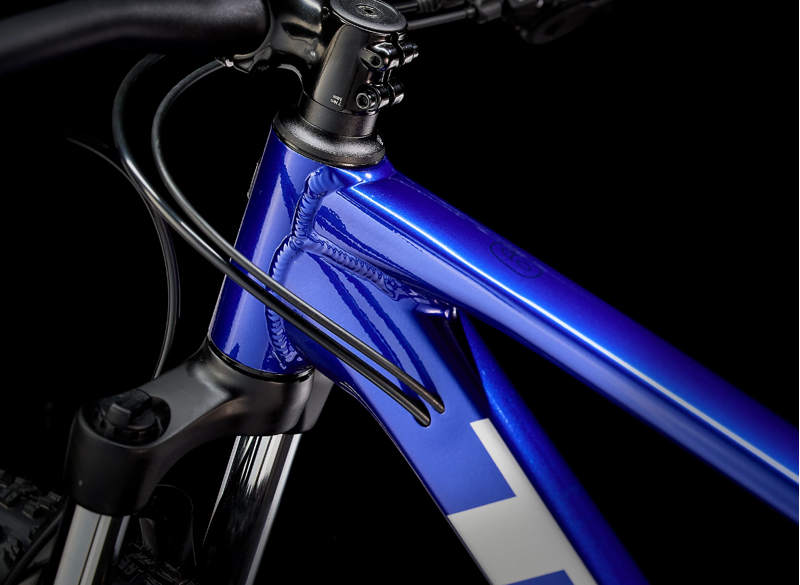

  • Frame:Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
  • Rear Shock (If Applicable):N/A

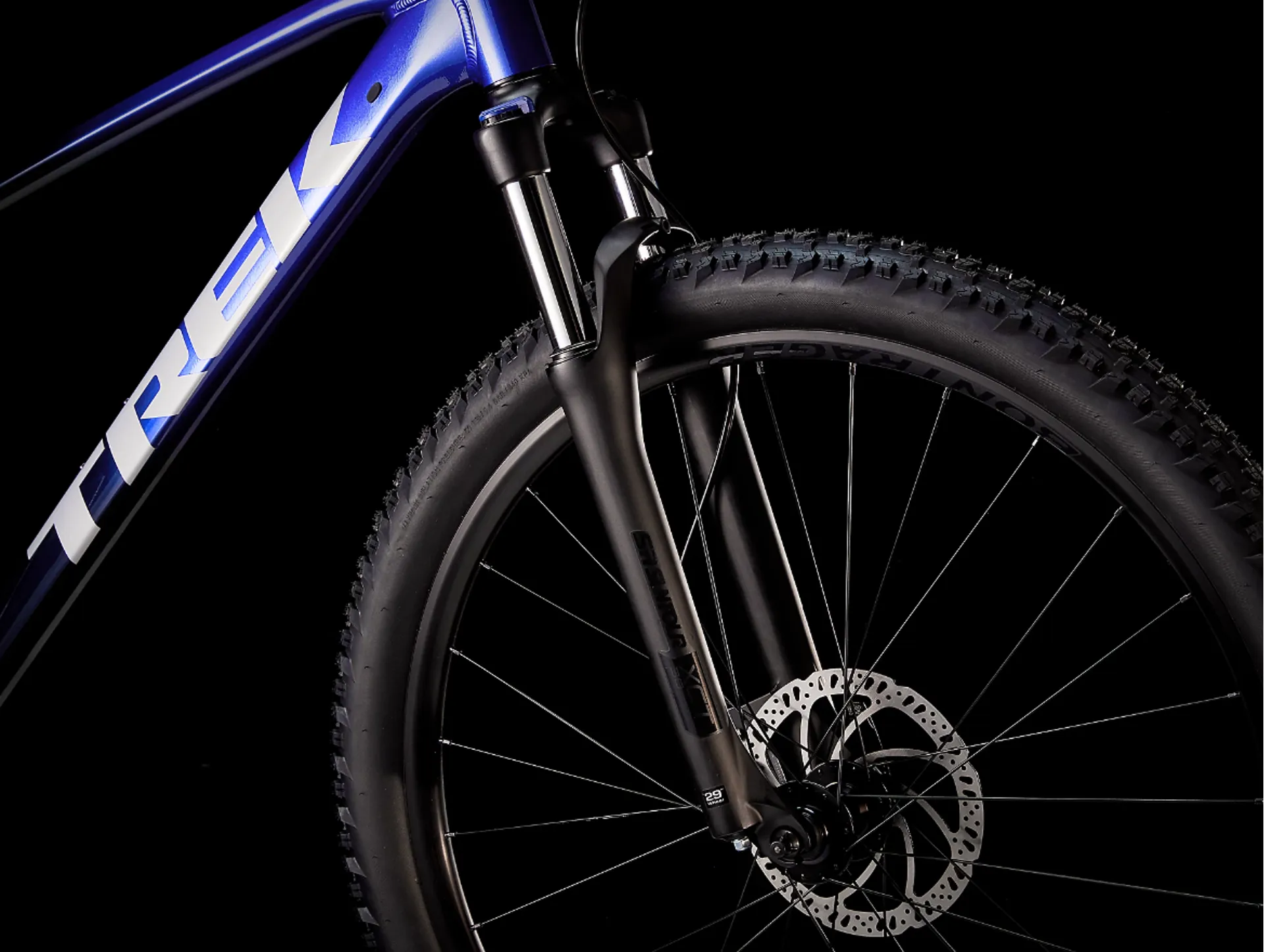

  • Fork: SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel (42 mm offset for 27.5" wheel)
  • Number of Gears: 10
  • Gear Shifters:Shimano Deore M4100, 10 speed

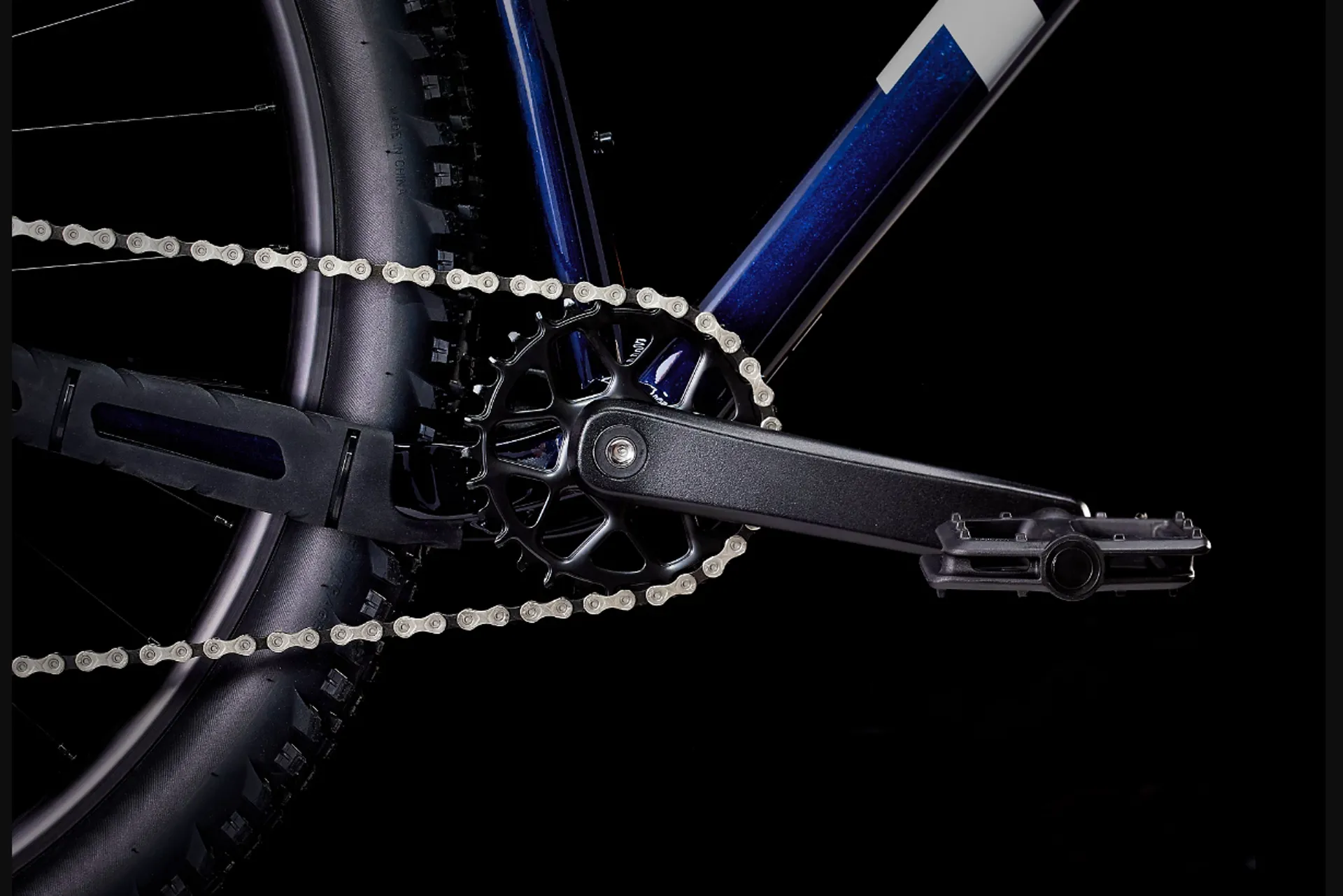

  • Chainset:Prowheel C10Y-NW, 30T steel narrow-wide ring, 170 mm length
  • Chainrings: 30T

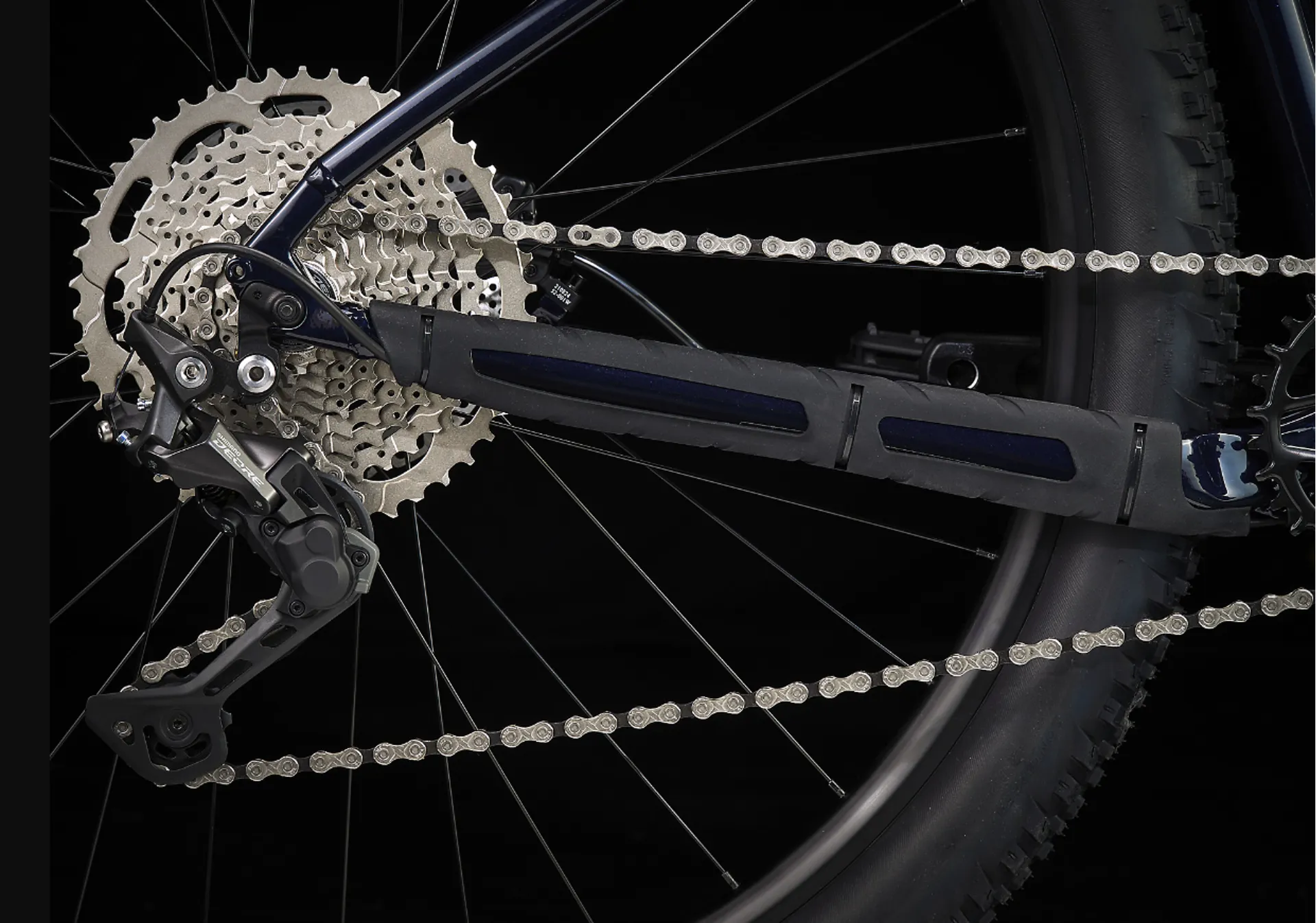

  • Rear Cassette:Shimano Deore M4100, 11-46, 10-speed
  • Chain:KMC X10, 10-speed
  • Front Derailleur:N/A

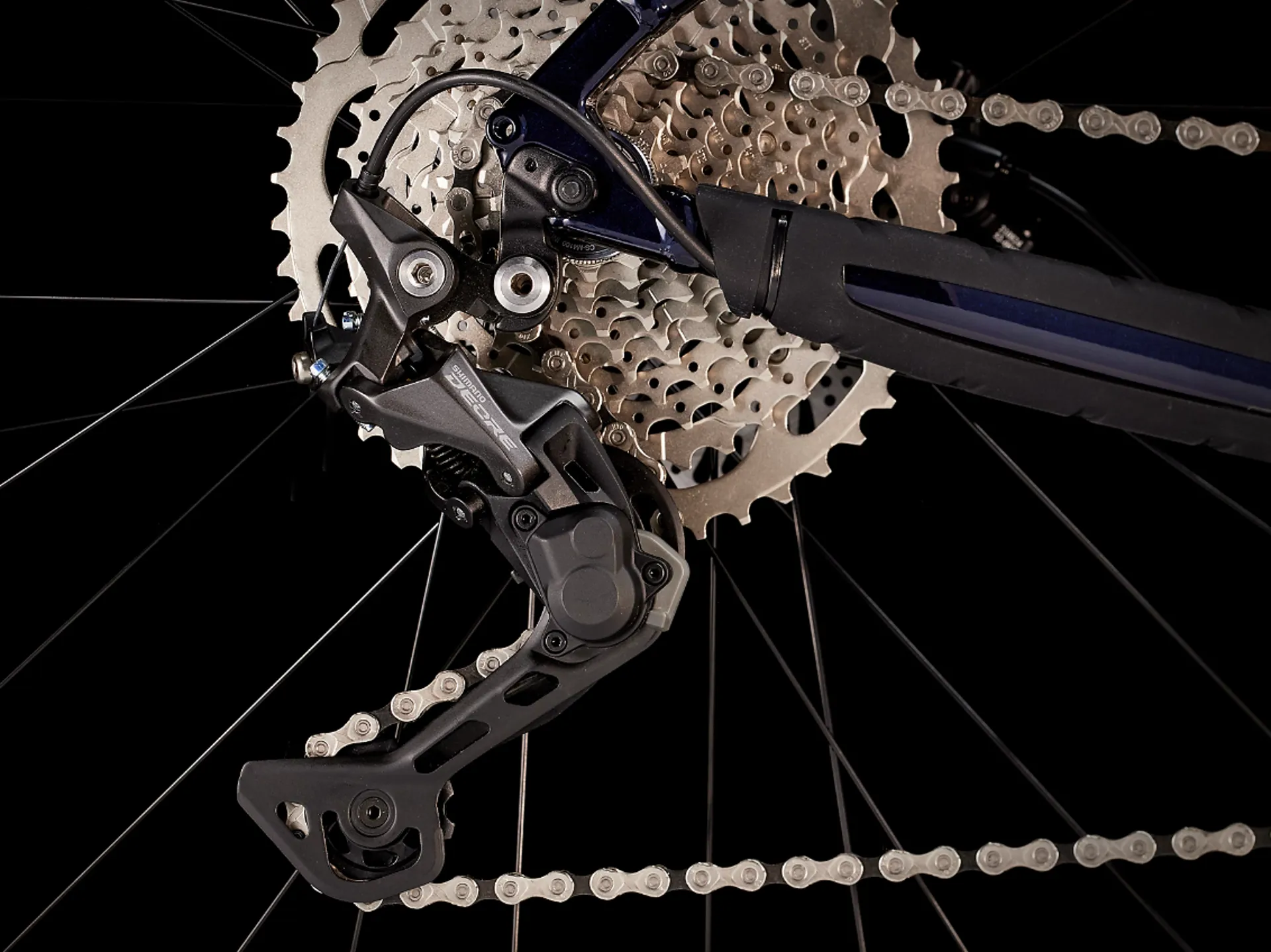

  • Rear Derailleur:Shimano Deore M5120, long cage
  • Bottom Bracket:VP BC73, 73 mm, threaded cartridge
  • Pedals:VP-536 nylon platform

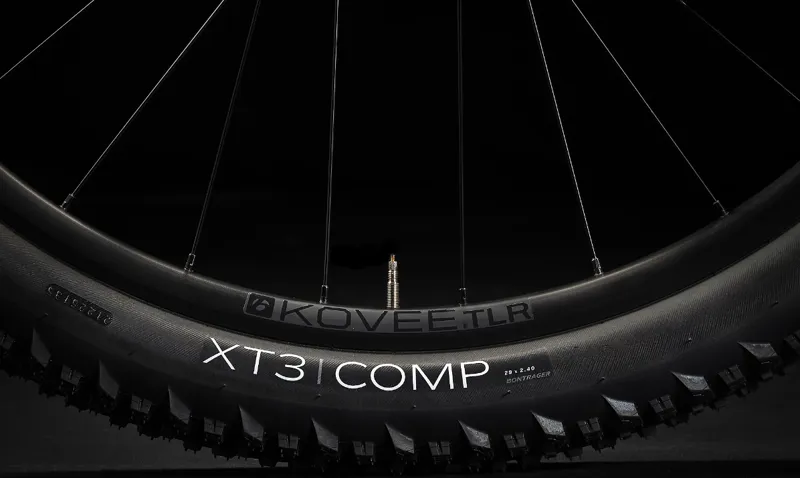

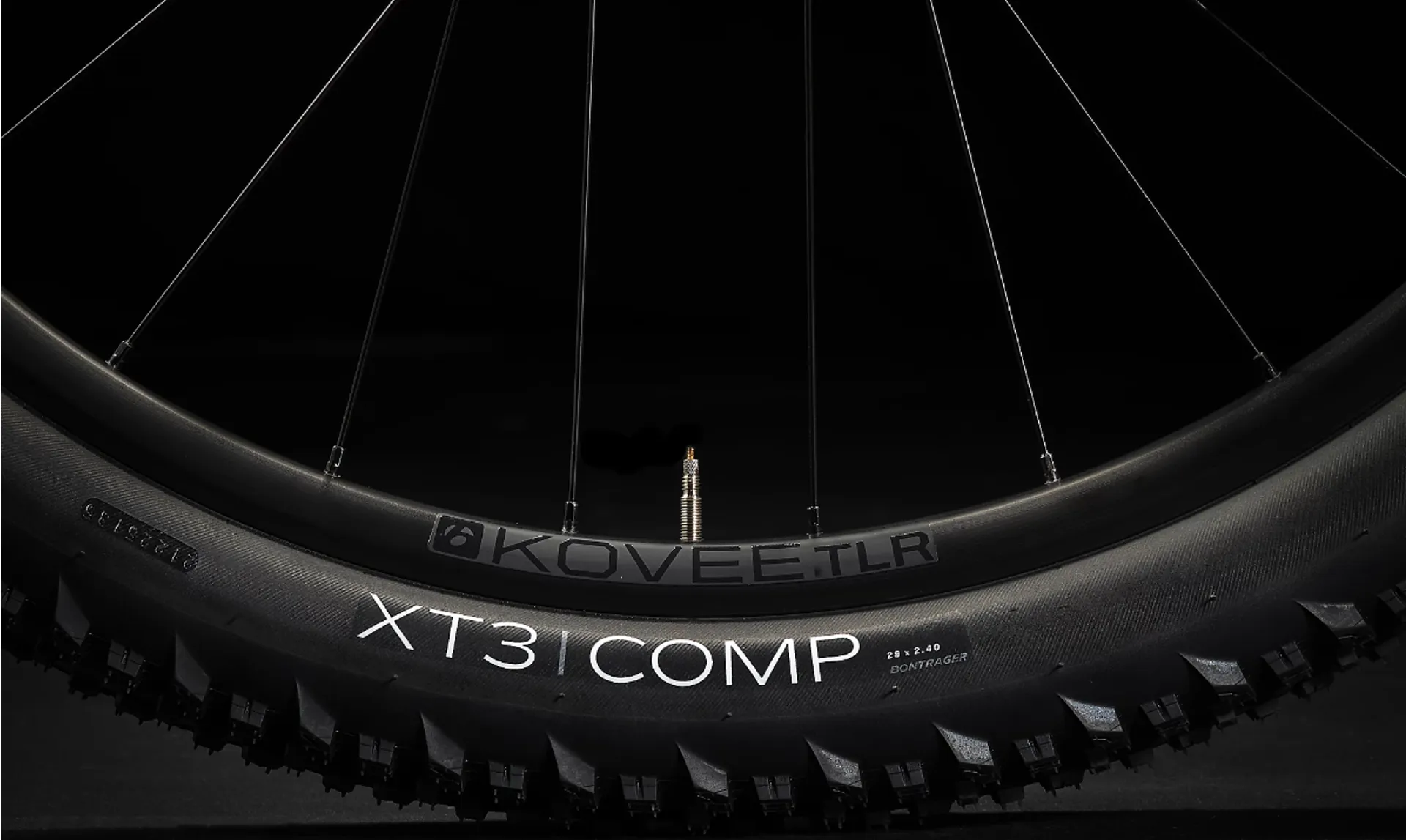

  • Rims: Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
  • Front Hub:Formula DC-20,alloy, 6-bolt, 100 mm ThruSkew
  • Rear Hub:Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
  • Front Tyre:Bontrager XT3 Comp 30 tpi Size XS, S 27.5x2.4", Sizes M, ML, L, XL, XXL 29x2.4"
  • Rear Tyre:Bontrager XT3 Comp 30 tpi Size XS, S 27.5x2.4", Sizes M, ML, L, XL, XXL 29x2.4"

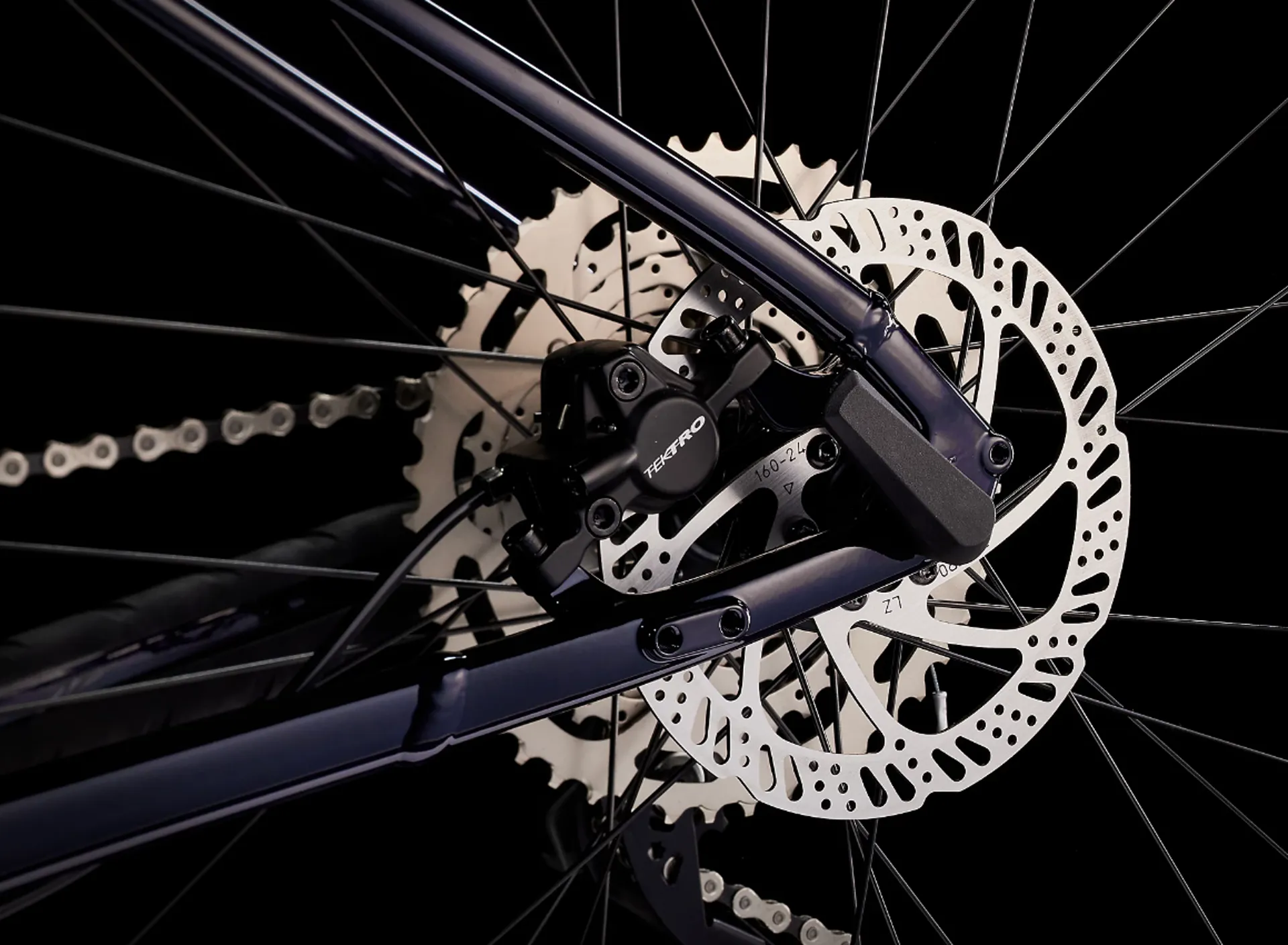

  • Brakes:Tektro HD-M275 hydraulic disc
  • Handlebars:Bontrager alloy, 31.8 mm, 5 mm rise, 690-750 mm width
  • Handlebar Grips:Bontrager XR Endurance Comp
  • Headset:Semi-integrated, 1-1/8"
  • Stem:Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 35-70 mm length
  • Saddle:Bontrager Arvada, steel rails, 138 mm width
  • Seatpost:Bontrager alloy, 31.6 mm, 12 mm offset, 330-400mm length
  • Accessories:N/A
  • Weight: M - 14.80 kg / 32.63 lbs
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.


Sizing Chart for Trek Marlin Gen 3 Hardtail Mountain Bike

The smaller frame sizes (XXS & XS) have a curved top tube and a lower standover height that makes it easier for smaller riders to mount and dismount, so you get a bike perfectly moulded to your size. XXS comes with 26" wheel (Marlin 8 only), XS and S come with 27.5" wheel.
Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
XXS135 - 1454'5" - 4'9"64 - 6825 - 27
XS145 - 1554'9" - 5'1"69 - 7327 - 29
S155 - 1655'1" - 5'5"74 - 7829 - 31
M165 - 1735'5" - 5'8"79 - 8131 - 32
M/L173 - 1805'8" - 5'11"81 - 8632 - 34
L180 - 1885'11" - 6'2"86 - 8934 - 35
XL188 - 1956'2" - 6'5"89 - 9135 - 36
XXL195 - 2036'5" - 6'8"91 - 9736 - 38

Geometry for Trek Marlin Cross-Country Mountain Bike

All measurements provided in cm unless otherwise stated.

Frame Size Number13.514.515.517.518.519.521.523
Frame Size LetterXXSXSSMMLLXLXXL
Wheel Size26"27.5"27.5"29"29"29"29"29"
A - Seat Tube3234374243.5455054
B - Seat Tube Angle74.0°73.8°73.8°73.4°73.4°73.4°73.4°73.4°
Effective Tube Angle74.0°74.0°74.0°74.0°74.0°74.0°74.0°74.0°
C - Head Tube Length991010.51111.513.515
D - Head Angle66.5°66.5°66.5°66.5°66.5°66.5°66.5°66.5°
E - Effective Top Tube52.155.157.961.563.164.767.870.7
F - Bottom Bracket Height30.231.331.330.830.830.830.830.8
G - Bottom Bracket Drop3.84.54.566666
H - Chainstay Length43.343.343.343.843.843.843.843.8
I - Offset44.24.24.64.64.64.64.6
J - Trail10.411111111111111
K - Wheelbase106109.2112.1116.3118119.7123126.1
L - Standover6565.869.274.775.977.179.181.6
M - Frame Reach36.53941.54445.54749.552
N - Frame Stack54.456.357.260.961.461.863.765.1

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com

Sizing Information
Trek Sizing Guide
Professional Opinion
Question(s) answered about Trek Marlin 6 Gen 3 Hardtail Mountain Bike 2023 in Hex Blue
Ask a question
Question(s) asked regarding Trek Marlin 6 Gen 3 Hardtail Mountain Bike 2023 in Hex Blue

Ask a question

Your name
Your email address
Your phone number
Your question
Submit Question  Close
  • What is the size of the crankset?
    Question asked by Arnel on 10/09/2023 19:17:03
    This is a 30T chainring (170mm crank length XS , S , M , ML , L , XL , XXL and 160mm XXS)set up with an 11-46 10 speed cassette.
  • Headset sizing
    Question asked by Ioannis on 24/11/2022 17:10:32
    This bike is not equipped with a tapered head tube as it uses a 1 1/8" headset.
