Reliable mountain bike hardtail for any terrain.
Reliable mountain bike hardtail for any terrain.
Bergamont

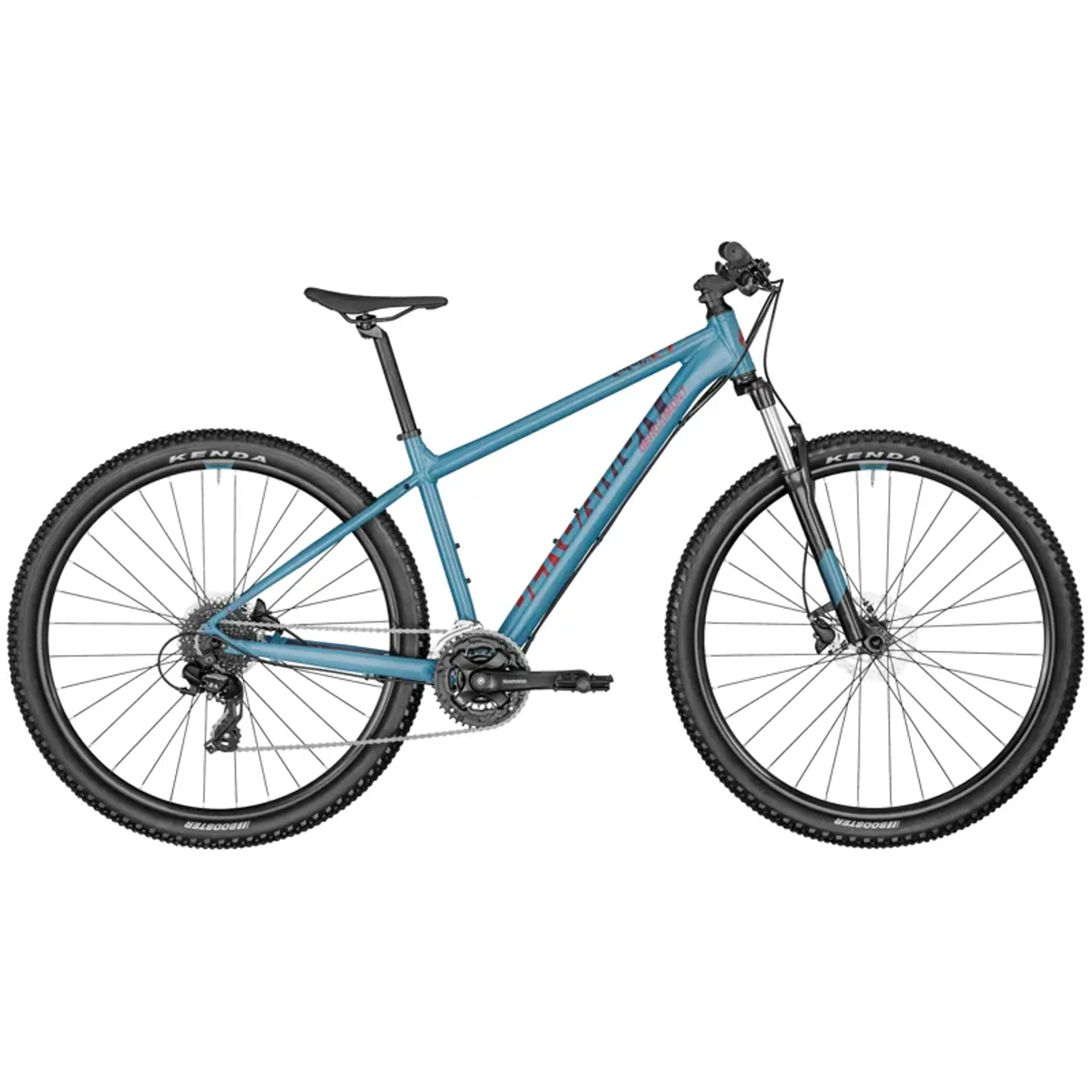

Bergamont Revox 3 Hardtail Mountain Bike 2022 in Caribbean Blue

£360.00 £649.00 45% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

Any item, except food, face masks or e-gift vouchers (full e-gift vouchers T&Cs are listed on the respective product pages) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase. It is recommended that you use a recorded delivery service to ensure your items are received by us. We cannot assume responsibility for items that are lost in the post.

Online or in-store purchases can both be returned to any store free of charge or can be returned by post after completing the online returns form. If you are returning an item due to a fault, we will refund your postage.

If you wish to return your bike to us, please keep the box it arrived in and let us know using the returns form and we will arrange collection.


Customer Returns Form

If you wish to cancel, return or exchange an order please fill in the form below. Returns can be processed quicker if all required information is added.



Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the products have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:

1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £24.99 for collection. If you do not have the original box, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid receipt.

Bergamont Revox 3 Hardtail Mountain Bike 2022 in Caribbean Blue

Season:2022

Brand:Bergamont

Code:286833

Reliable mountain bike hardtail for any terrain. Revox frame with updated geometry and bigger size range, more tyre clearance and improved compatibility when retrofitting fenders and kickstand.

Key Features & Benefits:

  • Aluminium Frame:Lightweight, durable & easy to manoeuvre.
  • 24 Shimano Gears:Perfect for tackling hills.
  • Hydraulic Disc Brakes:Strong stopping power when you need it most.

Full Specification:

  • Frame:29" (27.5"), lite AL-6061 tubing
  • Fork:Suntour XCE28 DS, 100 mm, preload adjust
  • Number of Gears:24
  • Gear Shifters:Shimano SL-M315, 3x8-speed, rapidfire plus-shifter
  • Chainset:Shimano FC-TY501, 42/34/24t
  • Chainrings:42/34/24t
  • Rear Cassette:Sunrace CS-M55, 11-34t
  • Chain:KMC Z8
  • Front Derailleur:Shimano FD-TY700
  • Rear Derailleur:Shimano RD-TX800
  • Bottom Bracket:Sealed cartridge, BSA
  • Pedals:Feimin FP-803
  • Rims:Alex X20, disc, width: 20 mm
  • Front Hub:Shimano, centerlock, disc, quick release
  • Rear Hub:Shimano, centerlock, disc, quick release
  • Front Tyre:Kenda Booster, 29x2.40" (27.5x2.40") Tube: Maxxis SV29
  • Rear Tyre:Kenda Booster, 29x2.40" (27.5x2.40") Tube: Maxxis SV29
  • Brakes:Shimano BR-MT200, hydraulic disc brake
  • Handlebars:BGM Comp, riserbar, width: 700 mm
  • Handlebar Grips or Tape:Syncros MTB
  • Headset:BGM FP-H807B, A-Headset, semi-integrated, 1 1/8"
  • Stem:BGM Comp, +/-6°
  • Saddle:Syncros Tofino 2.5
  • Seatpost:BGM Comp
  • Accessories:N/A
  • Weight:14.6Kg approx
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Bergamont Revox Size Guide


Bergamont Revox Geometry Guide

XS7S7M7M9L9XL9XXL9
ABB CENTER TO TOP OF SEATTUBE360 MM405 MM445 MM445 MM485 MM525 MM565 MM
BTOP TUBE PARALLEL570 MM577 MM586 MM587 MM599 MM612 MM632 MM
B*TOP TUBE HORIZONTAL580 MM595 MM610 MM610 MM625 MM640 MM660 MM
CCHAINSTAY435 MM435 MM435 MM458 MM458 MM458 MM458 MM
DHEADTUBE LENGTH110 MM125 MM135 MM110 MM120 MM130 MM145 MM
EHEAD ANGLE69,0 °69,0 °69,0 °69,0 °69,0 °69,0 °69,0 °
FSEAT ANGLE74,0 °74,0 °74,0 °74,0 °74,0 °74,0 °74,0 °
HBB OFFSET-56 MM-56 MM-56 MM-70 MM-70 MM-70 MM-70 MM
KWHEELBASE1.089 MM1.105 MM1.121 MM1.142 MM1.158 MM1.174 MM1.195 MM
LSTANDOVER HEIGHT700 MM734 MM762 MM771 MM798 MM825 MM854 MM
MSTACK597 MM611 MM621 MM629 MM638 MM647 MM661 MM
NREACH404 MM416 MM428 MM426 MM438 MM451 MM466 MM
FORK LENGTH483 MM483 MM483 MM503 MM503 MM503 MM503 MM
FORK RAKE42 MM42 MM42 MM46 MM46 MM46 MM46 MM
GSEATPOST DIAMETER27,2 MM27,2 MM27,2 MM27,2 MM27,2 MM27,2 MM27,2 MM

Warranty Information for Bergamont:

The manufacturer's guarantee is granted from the date of purchase for a period of five years on bicycle frames and rear ends. The guarantee period is reduced to three years, if the BERGAMONT bicycle is not serviced at least once a year by an authorized BERGAMONT dealer. Maintenance services must be carried out in accordance with the maintenance instructions in the BERGAMONT manual and must be confirmed there by the stamp and signature of the authorized BERGAMONT dealer.

For frames and rear ends of Category 5 bicycle models and for rigid forks manufactured by BERGAMONT, the duration of the manufacturer's guarantee is limited to two years.

If a defect on the BERGAMONT bicycle is remedied within the scope of a manufacturer’s guarantee or a warranty claim, the duration of the manufacturer's guarantee is not extended. The manufacturer's guarantee ends, when the first-time buyer transfers ownership of the BERGAMONT bicycle to a third person.
For full warranty policy please visit https://www.bergamont.com/gb/en/support/warranty
