The Trek Rail 9.5 is a high-value carbon electric mountain bike with long-travel suspension for crushing gnarly descents. Complet with a OCLV Mountain Carbon frame, plus a powerful Bosch drive system that propels you up climbs.
The Trek Rail 9.5 is a high-value carbon electric mountain bike with long-travel suspension for crushing gnarly descents. Complet with a OCLV Mountain Carbon frame, plus a powerful Bosch drive system that propels you up climbs.
Trek

Trek Rail 9.5 Deore 625wh Full Suspension Electric MTB 2023 in Carbon Smoke and Trek Black

£4,905.00 £5,700.00 14% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

Any item, except food, face masks or e-gift vouchers (full e-gift vouchers T&Cs are listed on the respective product pages) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase. It is recommended that you use a recorded delivery service to ensure your items are received by us. We cannot assume responsibility for items that are lost in the post.

Online or in-store purchases can both be returned to any store free of charge or can be returned by post after completing the online returns form. If you are returning an item due to a fault, we will refund your postage.

If you wish to return your bike to us, please keep the box it arrived in and let us know using the returns form and we will arrange collection.


Customer Returns Form

If you wish to cancel, return or exchange an order please fill in the form below. Returns can be processed quicker if all required information is added.



Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the products have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:

1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £24.99 for collection. If you do not have the original box, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid receipt.

Trek Rail 9.5 Deore 625wh Full Suspension Electric MTB 2023 in Carbon Smoke and Trek Black

Season:2023

Brand:Trek

Code:35336MATCBNSMKBLK

The Trek Rail 9.5 is a high-value carbon electric mountain bike with long-travel suspension for crushing gnarly descents. The OCLV Mountain Carbon frame features the same high-end trail tech as our analogue trail bikes, plus a powerful Bosch drive system that propels you up climbs so you can spend more time shredding.

An OCLV Mountain Carbon frame with 150 mm of rear travel that fully encases a 625 Wh battery, an e-MTB optimized 160 mm RockShox 35 Gold RL fork, a powerful Bosch Performance Line CX (250 W, 85 Nm) motor that assists up to 20 mph (25 km/h in Europe) and a Purion controller. Plus, a 1x12 Shimano Deore drivetrain with a wide gear range so you can always find the ideal cadence for the motor, a dropper post, powerful 4-piston brakes for more downhill confidence and 29er Bontrager wheels with nimble yet grippy 2.6" tyres.

Treks best-value carbon Rail is a pretty sweet deal. You get a quality long-travel suspension set-up, a best-in-class Bosch drive system and an awesome OCLV Mountain Carbon frame.

Key Features & Benefits

  • 160mm front and 150mm rear suspension: eats up the rough stuff.
  • New Bosch Performance Line CX motor: is lighter and more powerful.
  • 625Wh integrated battery: will keep you riding for longer.

Full Specification

  • Frame: OCLV Mountain Carbon main frame, Removable Integrated Battery (RIB), tapered head tube, Knock Block, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru-axle, 150 mm travel
  • Rear Suspension: RockShox Deluxe Select+, 230x57.5 mm
  • Fork: RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, an oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel

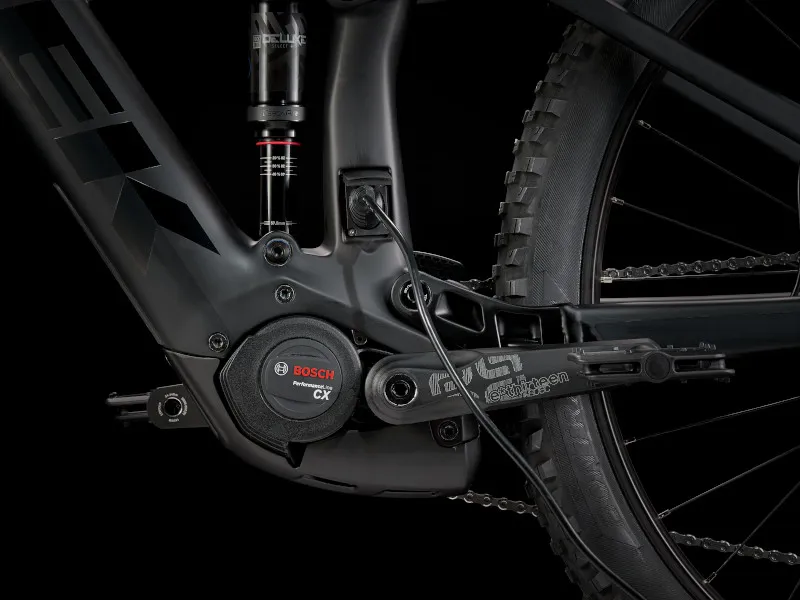

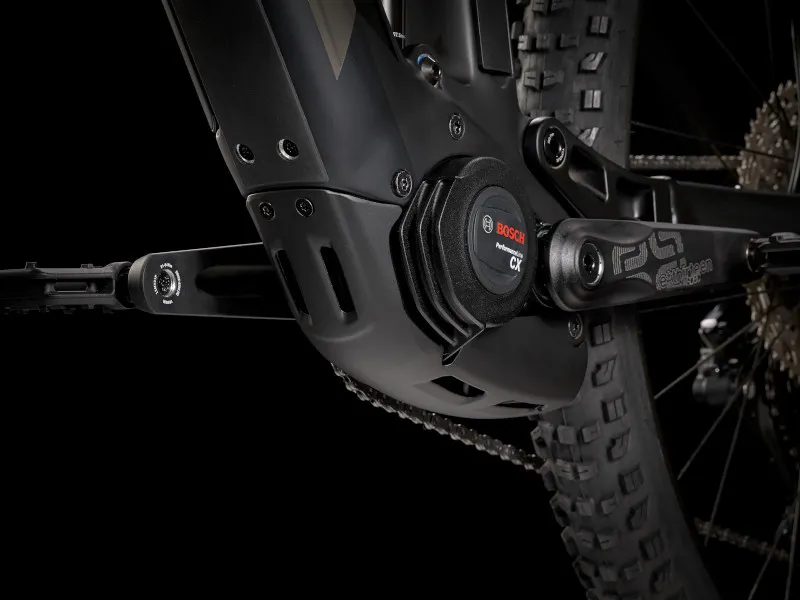

  • Motor: NEW Bosch Performance Line CX, 250 Watt, 85Nm, magnesium body, 15.5 mph / 25 km/h max assist

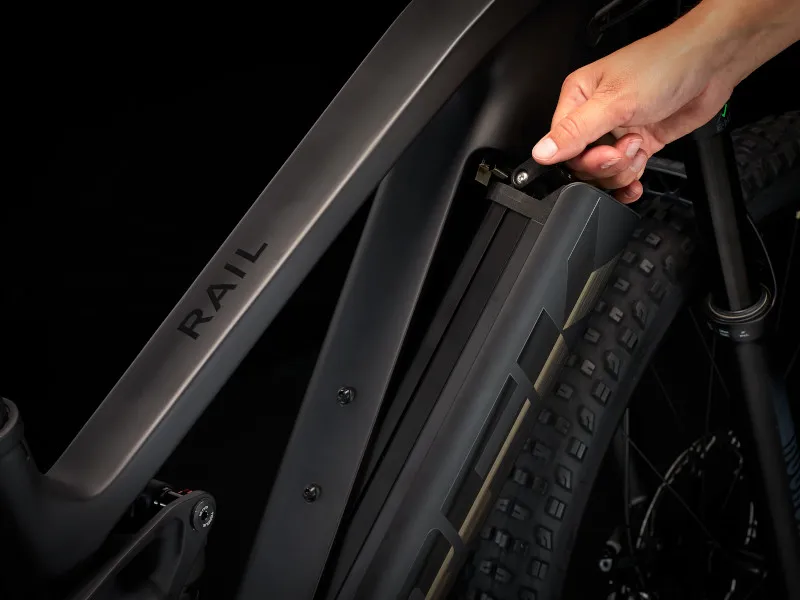

  • Battery: Bosch PowerTube, vertical, 625 wh
  • Controller: Bosch Purion
  • Number of Gears: 12
  • Gear Shifters: Shimano Deore 6100, 12-speed
  • Chainset: SEthirteen Espec Plus, 34T, 165 mm length
  • Chainrings: 34T
  • Rear Cassette: Shimano Deore 6100, 10-51, 12-speed
  • Chain: Shimano Deore 6100, 12-speed
  • Front Derailleur: N/A
  • Rear Derailleur: Shimano Deore 6100
  • Bottom Bracket: N/A
  • Pedals: VP-536 nylon platform
  • Rims: Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve
  • Front Hub: Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru-axle
  • Rear Hub: Bontrager alloy, sealed bearing, 6-bolt, Shimano, Boost148, 12 mm thru-axle
  • Front Tyre: Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.60"
  • Rear Tyre: Bontrager XR4 Comp, wire bead, 30 TPI, 29x2.60"
  • Brakes: Shimano 4-piston hydraulic disc
  • Handlebars: Bontrager alloy, 31.8 mm, 15 mm rise 750mm
  • Handlebar Tape: Bontrager XR Trail Comp, lock-on
  • Headset: Knock Block Integrated, cartridge bearing, 1-1/8" top, 1.5"
  • Stem: Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree
  • Saddle: Bontrager Arvada, steel rails, 138 mm width
  • Seatpost: Bontrager Line Dropper, 100-130 mm, internal routing, 31.6 mm, 361-395 mm length
  • Accessories: N/A
  • Weight: TBC

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Sizing Chart for Trek Rail Electric Bike

Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
S153 - 1675'0.0" - 5'6.0"72 - 7928.3 - 30.7
M161 - 1755'3.0" - 5'8.9"76 - 8230.3 - 32.7
L174 - 1885'8.9" - 6'2"82 - 8832.3 - 34.6
XL186 - 1966'1.2" - 6'5.6"87 - 9234.3 - 36.6

Geometry Information for Trek Rail with Bosch Smart System

Frame size letterMMLLXLXL
Geometry positionLowHighLowHighLowHigh
Wheel size29"29"29"29"29"29"
A — Seat tube424245455050
B — Seat tube angle70.8°71.2°70.8°71.2°70.8°71.2°
Effective seat tube angle76.7°77.1°76.7°77.1°76.7°77.1°
C — Head tube length111112.512.51414
D — Head angle64.2°64.6°64.2°64.6°64.2°64.6°
E — Effective top tube60.16063.963.867.367.1
F — Bottom bracket height34.134.634.134.634.134.6
G — Bottom bracket drop3.32.73.32.73.32.7
H — Chainstay length44.844.744.844.744.844.7
I — Offset4.34.34.34.34.34.3
J — Trail13.31313.31313.313
K — Wheelbase123.6123.6127.8127.7131.4131.3
L — Standover76.877.376.57776.376.8
M — Frame reach45.245.648.749.151.752.1
N — Frame stack63.362.964.664.36665.6

Geometry Information for Trek Rail Gen 2

Frame size number15.515.517.517.519.519.521.521.5
Frame size letterSSMMLLXLXL
Geometry positionLowHighLowHighLowHighLowHigh
Wheel size29"29"29"29"29"29"29"29"
A — Seat tube4141424245455050
B — Seat tube angle67.6°68.0°67.6°68.0°67.6°68.0°67.6°68.0°
Effective seat tube angle75.0°75.4°75.0°75.4°75.0°75.4°75.0°75.4°
C — Head tube length10.510.510.510.511111212
D — Head angle64.5°64.9°64.5°64.9°64.5°64.9°64.5°64.9°
E — Effective top tube58.858.761.361.163.463.366.666.5
F — Bottom bracket height33.934.433.934.433.934.433.934.4
G — Bottom bracket drop3.52.93.52.93.52.93.52.9
H — Chainstay length44.844.744.844.744.844.744.844.7
I — Offset4.34.34.34.34.34.34.34.3
J — Trail13.112.713.112.713.112.713.112.7
K — Wheelbase119.6119.5122.1122124.3124.3127.8127.7
L — Standover74.374.877.377.876.276.777.578
M — Frame reach4242.544.54546.54749.549.9
N — Frame stack62.662.362.662.26362.763.963.6

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.


Sizing Information
Trek Sizing Guide
Professional Opinion
Question(s) answered about Trek Rail 9.5 Deore 625wh Full Suspension Electric MTB 2023 in Carbon Smoke and Trek Black
Ask a question
Question(s) asked regarding Trek Rail 9.5 Deore 625wh Full Suspension Electric MTB 2023 in Carbon Smoke and Trek Black

Ask a question

Your name
Your email address
Your phone number
Your question
Submit Question  Close
  • What gen is this bike please?
    Question asked by John on 06/12/2023 14:51:14
    This is a 'Generation 2' bike (35336MATCBNSMKBLK Trek)
