The Fuel EXe 9.7 redefines e-mountain biking with an entirely new motor that tucks away neatly for a ride that's light, lively and playful, with the added benefit of pedal-assist to help you crush climbs.
The Fuel EXe 9.7 redefines e-mountain biking with an entirely new motor that tucks away neatly for a ride that's light, lively and playful, with the added benefit of pedal-assist to help you crush climbs.
Trek

EX DEMO Trek Fuel EXe 9.7 Electric Full Suspension Mountain Bike Medium 2023 in Galactic Grey

£3,600.00 £7,400.00 51% off
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

Any item, except food, face masks or e-gift vouchers (full e-gift vouchers T&Cs are listed on the respective product pages) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase. It is recommended that you use a recorded delivery service to ensure your items are received by us. We cannot assume responsibility for items that are lost in the post.

Online or in-store purchases can both be returned to any store free of charge or can be returned by post after completing the online returns form. If you are returning an item due to a fault, we will refund your postage.

If you wish to return your bike to us, please keep the box it arrived in and let us know using the returns form and we will arrange collection.


Customer Returns Form

If you wish to cancel, return or exchange an order please fill in the form below. Returns can be processed quicker if all required information is added.



Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the products have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:

1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £24.99 for collection. If you do not have the original box, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid receipt.

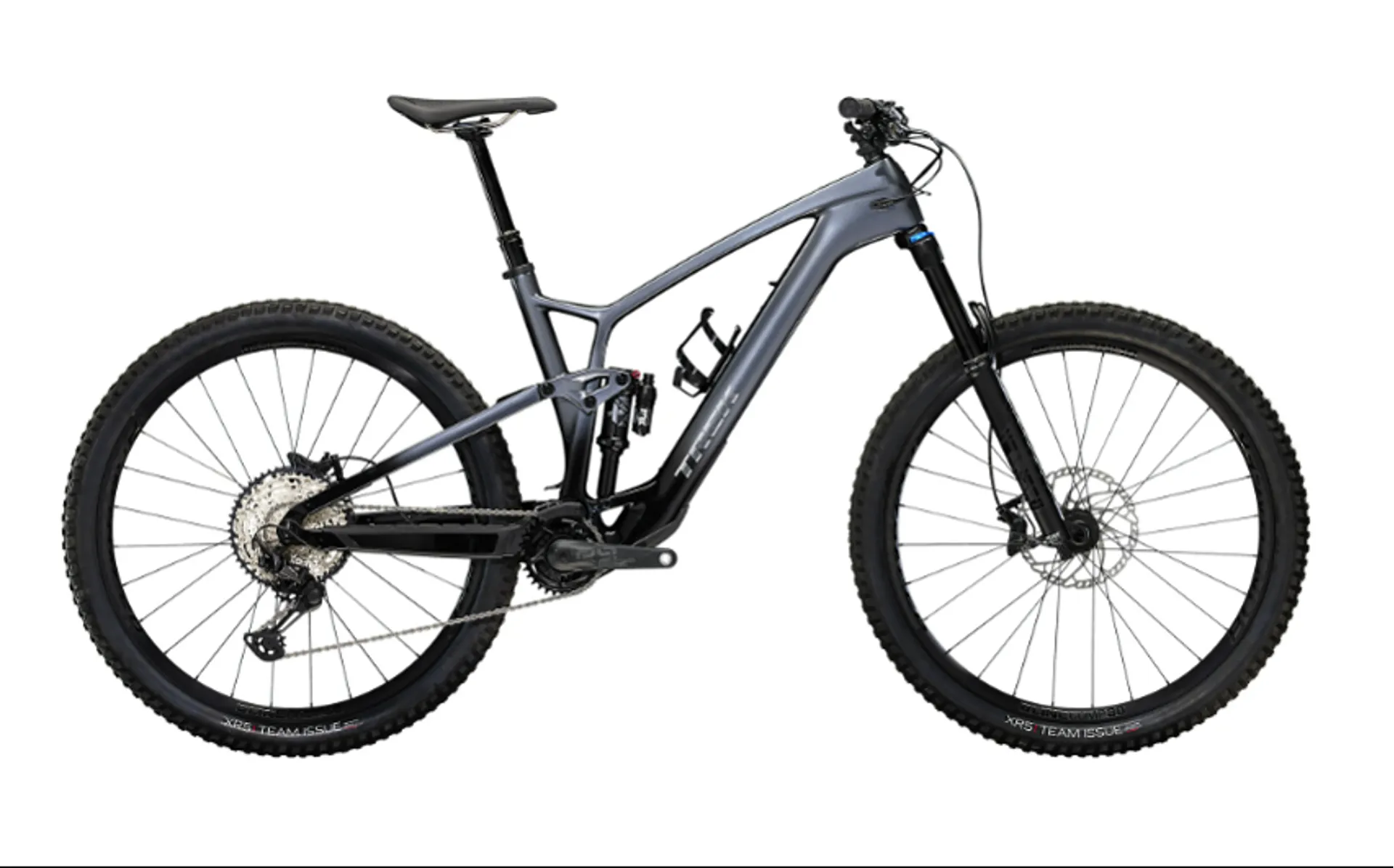

EX DEMO Trek Fuel EXe 9.7 Electric Full Suspension Mountain Bike Medium 2023 in Galactic Grey

Season:2023

Brand:Trek

Code:SD5272390A

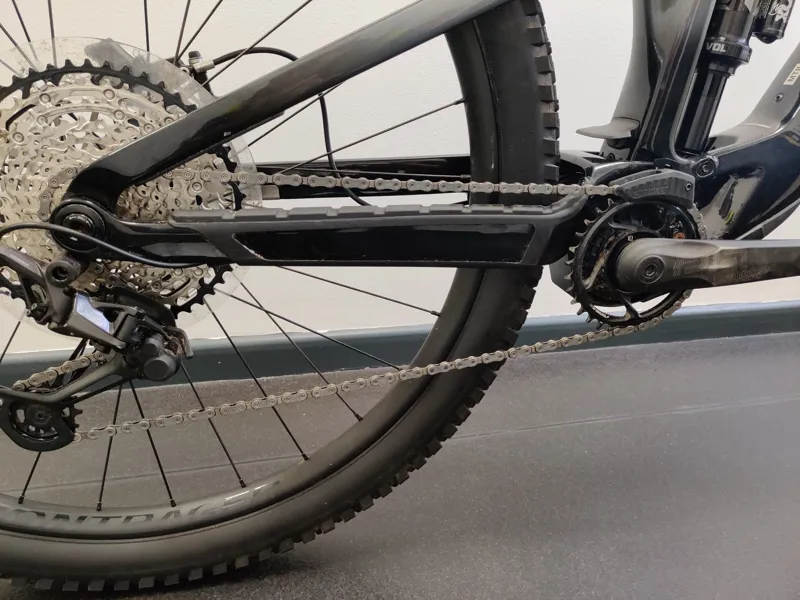

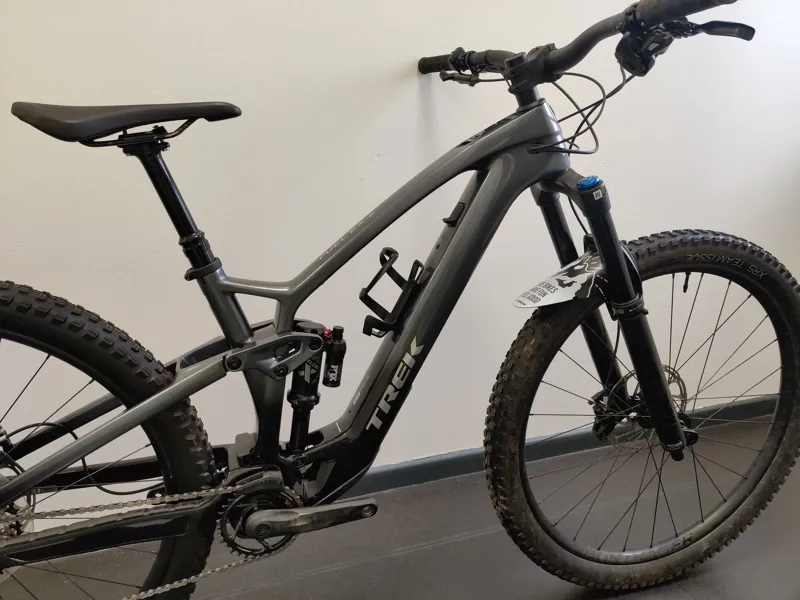

This Trek Fuel EXe 9.7 Electric Full Suspension Mountain Bike in Size Medium is an ex-demo bike, it has some light cosmetic damage, it has been used at several demonstration events this season, and shows signs of use on the drivetrain, brakes and tyres. The odometer reads 122 km.

Our ex-demo/display bikes are fully serviced and checked to ensure your riding experience is the same as a new bike - we offer full manufacturers warranty on all our ex display and ex demo bikes.

The Fuel EXe 9.7 includes an upgraded suspension package pairs with cherry-picked components for snappy shifting and precise modulation on the trail. All that, and a lightweight carbon chassis to keep your ride nimble and stiff with just the right amount of vibration-damping goodness for when the trail gets rowdy.

It's right for you if you want the feel of a playful trail bike, plus a little extra power on the climbs. You want upgrades where it counts the most, like a premium suspension package and the perfect blend of components. You don't want to lose out on the natural experience of mountain biking, and want a refined motor that quietly assists while you ride.

You get an OCLV Mountain Carbon frame equipped with a fully encased 360 Wh battery and TQ harmonic pin ring transmission with a smart charging port, integrated LED display and discreet handlebar remote. 150 mm FOX Rhythm 36 fork with Float EVOL air spring and GRIP damper, and 140 mm FOX Performance Float X rear suspension. Plus tubeless-ready wheels and tyres, and a 12-speed drivetrain of cherry-picked Shimano SLX and XT components.

The Fuel EXe 9.7 is a playful trail ride that gives you extra fuel in the tank on climbs, and rides like a traditional bike on descents. It's packed with the space-age technology of a TQ transmission, 150 mm of buttery-smooth travel for soaking up rock gardens, and a cherry-picked drivetrain that gives you upgrades where it matters most.

Key Features & Benefits:

  • Carbon Fibre Frame:Lightweight & efficient for trail riding
  • 12-Speed Shimano Deore Gears:Perfect for all terrain
  • Upgraded Fox Suspension Package:Offers 150 mm of front and 140 mm of rear travel for making quick work of technical and rowdy terrain

Full Specification:

  • Frame: OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel
  • Rear Shock: Fox Performance Float X, 2-position damper, 205mm x 60mm
  • Fork: Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel

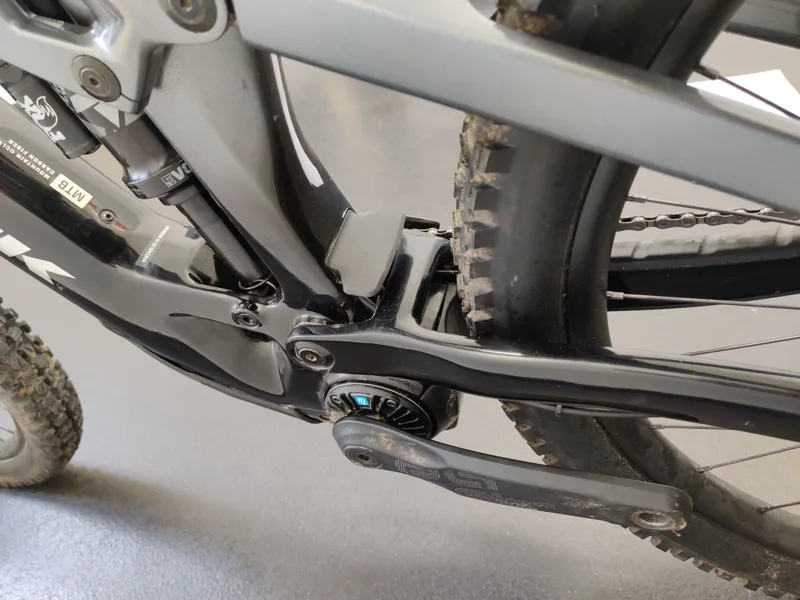

  • Motor: TQ-HPR50, 300 watt, 50 Nm

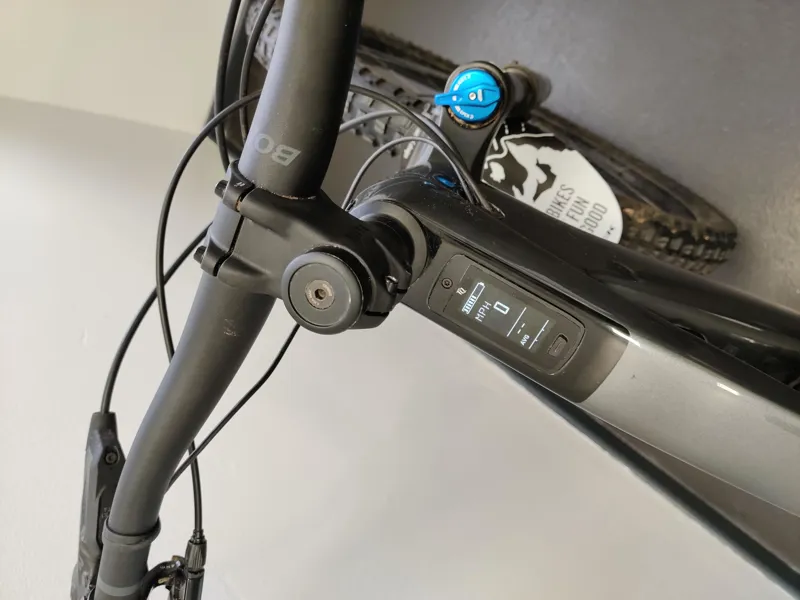

  • Controller: TQ LED display with Bluetooth & ANT+ connectivity; TQ handlebar-mounted
  • Battery: TQ 360Wh
  • Charger: TQ 4A charger
  • Number of Gears:
  • Gear Shifters: Shimano SLX M7100, 12-speed
  • Chainset: E*thirteen E*spec
  • Chainrings: 32T

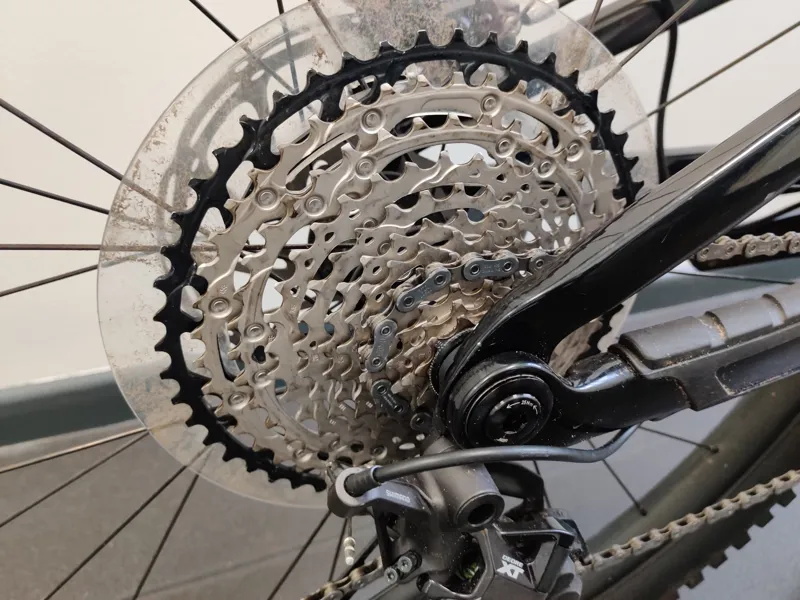

  • Rear Cassette: Shimano SLX M7100, 10-51, 12-speed
  • Chain: Shimano SLX M7100, 12-speed
  • Front Derailleur: N/A
  • Rear Derailleur: Shimano XT M8100, long cage
  • Bottom Bracket:
  • Pedals: Not included
  • Rims: Bontrager Line Comp 30, Tubeless Ready, 28-hole, Presta valve
  • Front Hub: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
  • Rear Hub: Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12mm thru axle
  • Front Tyre: Bontrager XR5 Team Issue, Tubeless Ready, 29x2.50"
  • Rear Tyre: Bontrager XR5 Team Issue, Tubeless Ready, 29x2.50"
  • Brakes: Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper

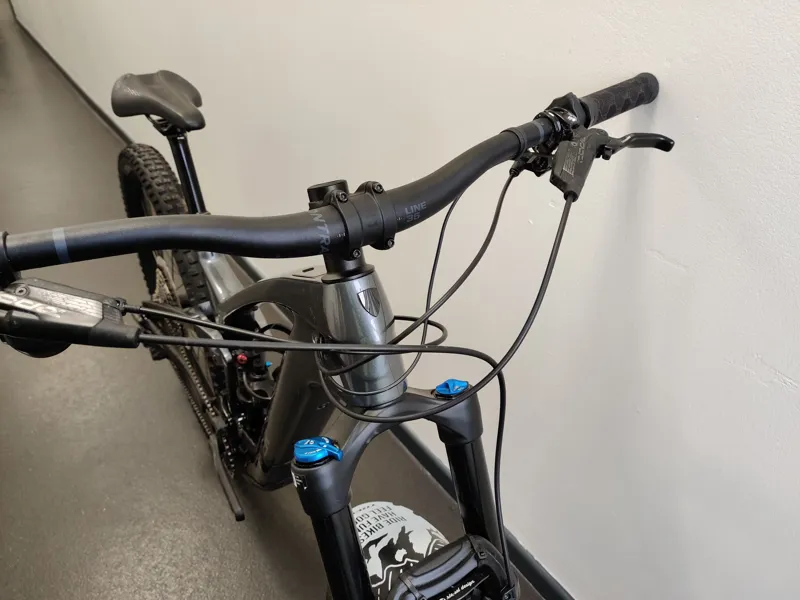

  • Handlebars: Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
  • Handlebar Grips: Bontrager XR Trail Elite, nylon lock-on
  • Headset: Trek Fuel EX-e Headset
  • Stem: Bontrager Elite, 35 mm, 0-degree, 45 mm length
  • Saddle: Bontrager Arvada, austenite rails, 138 mm width
  • Seatpost: TranzX JD-YSP39, internal routing, 34.9 mm
  • Accessories: Charger included
  • Weight:M - 19.05 kg / 42 lbs (with TLR sealant, no tubes)
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Sizing Chart for Trek Fuel EXe

Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
S155 – 1665’1″ – 5’5″74 - 7829 - 31
M165 - 17655″ – 5’9”79 - 8331 - 32
L177 – 1885’10” – 6’2″84 - 8933 - 35
XL188 – 1956’2” – 6’5″89 - 9135 - 36

Geometry for Trek Fuel EXe

Frame size number15.5"15.5"17.5"17.5"19.5"19.5"21.5"21.5"
Frame size letterSSMMLLXLXL
Geometry positionHighLowHighLowHighLowHighLow
Wheel size29"29"29"29"29"29"29"29"
A — Seat tube3838414143.543.54747
B — Seat tube angle69.3°68.8°69.8°69.3°70.8°70.3°71.3°70.8°
Effective seat tube angle77.3°76.8°77.3°76.8°77.3°76.8°77.3°76.8°
C — Head tube length1010111111111212
D — Head angle65.3°64.8°65.3°64.8°65.3°64.8°65.3°64.8°
E — Effective top tube57.257.359.96062.96365.665.8
F — Bottom bracket height34.133.434.133.434.133.434.133.4
G — Bottom bracket drop3.23.93.23.93.23.93.23.9
H — Chainstay length43.84443.84443.84443.844
I — Offset4.44.44.44.44.44.44.44.4
J — Trail12.412.712.412.712.412.712.412.7
K — Wheelbase118.7118.8121.6121.7124.6124.7127.6127.6
L — Standover73.272.673.372.773.973.375.975.3
M — Frame reach43.442.845.945.348.948.351.450.8
N — Frame stack61.66262.562.962.562.963.463.8





Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com
