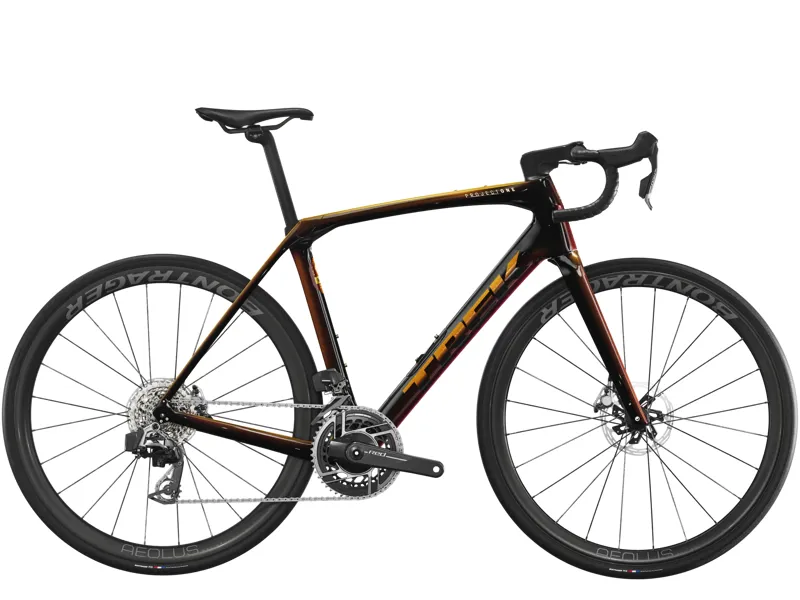

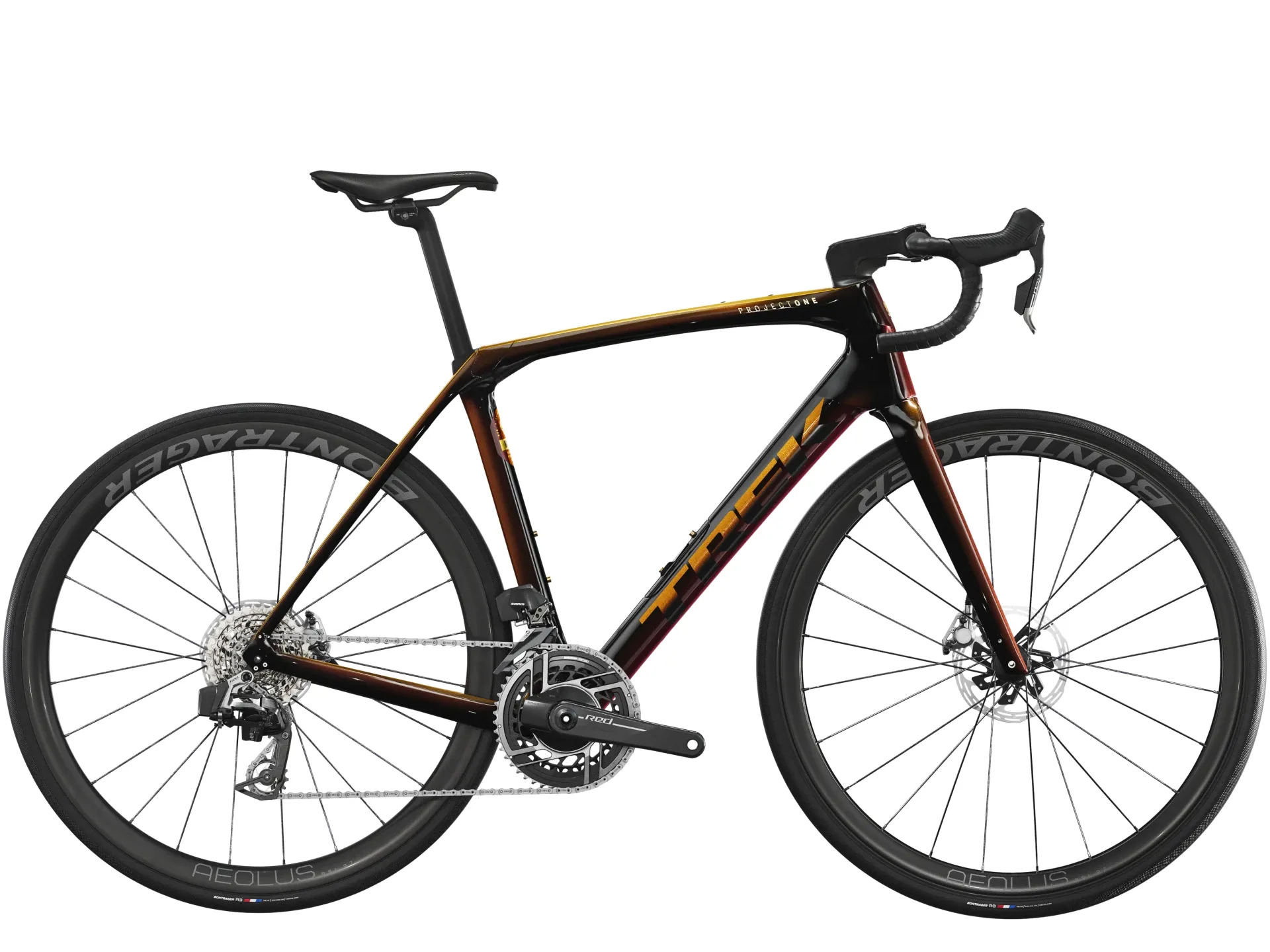

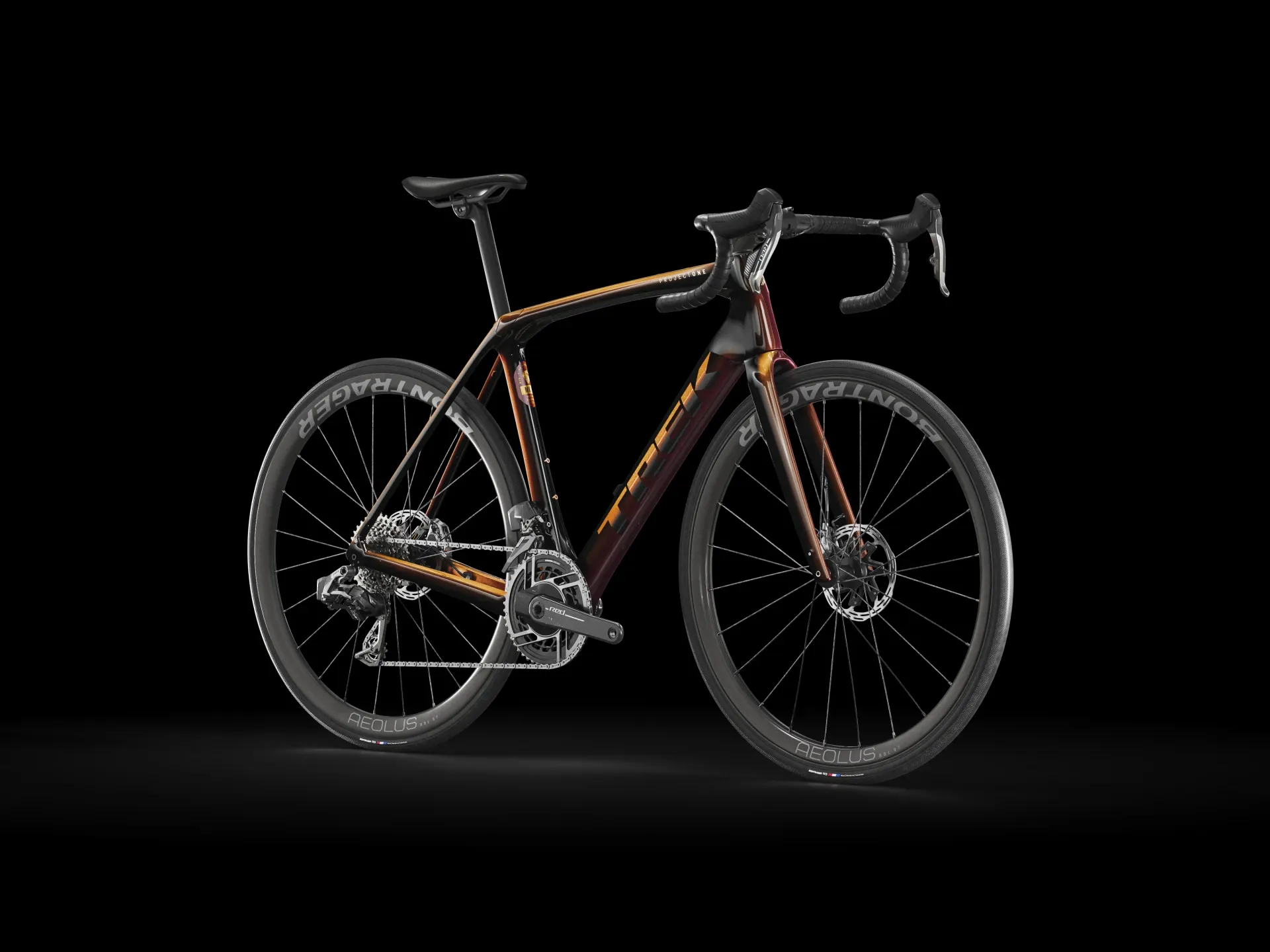

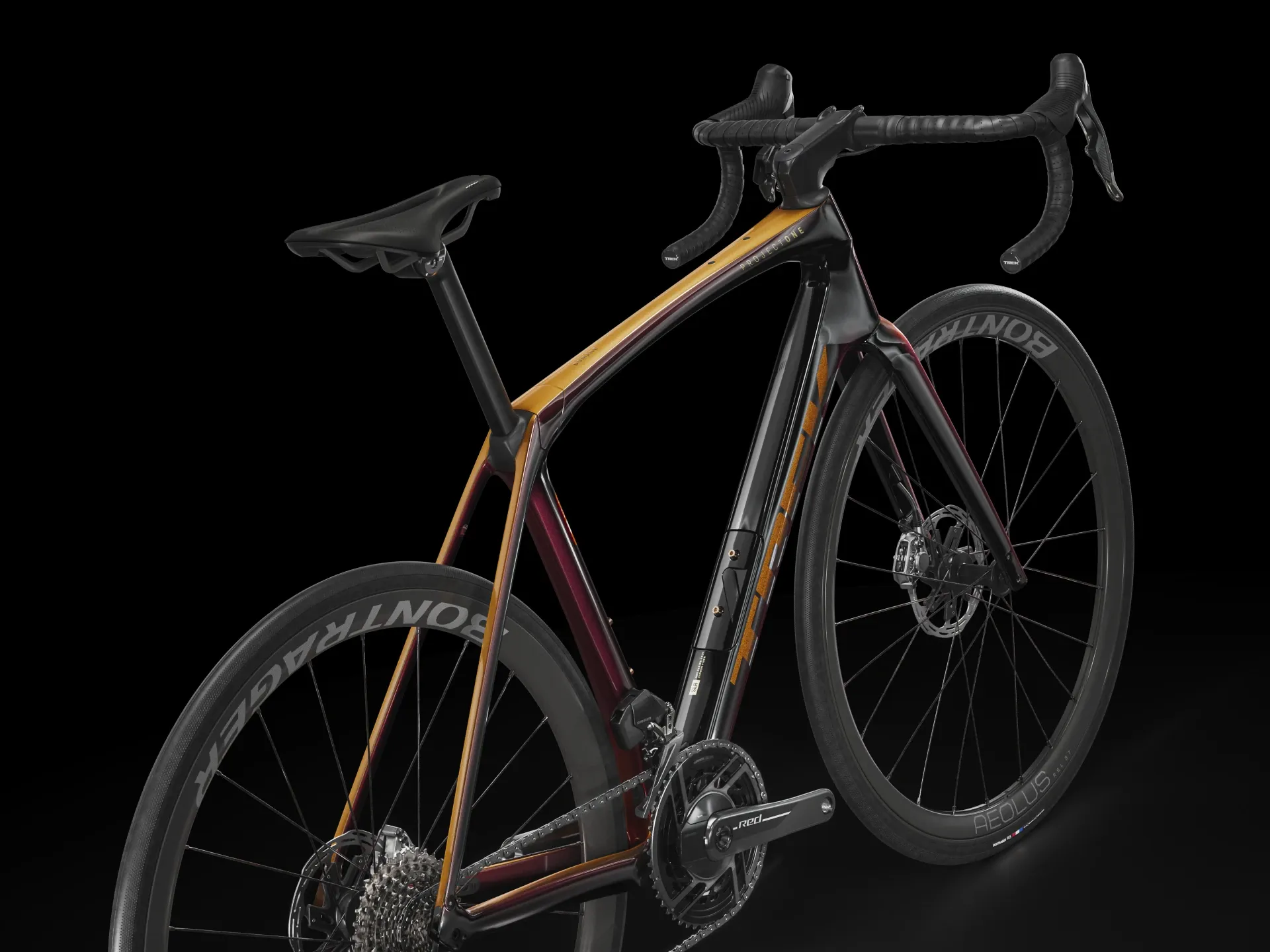

Trek Domane SLR 9 AXS Gen 4 Carbon Road Bike 2025 in Axinite Flip

Season:2025

Brand:Trek

Code:48021ORNG

Domane SLR 9 AXS is Trek's top-of-the-line, ultralight carbon endurance road bike decked out with the best parts for a fast, high-performance ride. You get Trek's highest-level OCLV Carbon frame with rear IsoSpeed, SRAM’s new RED AXS electronic drivetrain and OCLV Carbon wheels. Plus, it has an easy-access storage compartment for stowing ride essentials, and versatile 38c tyre clearance to keep you floating on rough roads and light gravel.

You want a seriously capable bike on the tarmac that doesn't back down from endurance race days, and you're not willing to settle for less. You're looking for the most advanced endurance road bike frame Trek offer, with the added benefit of a wireless electronic SRAM RED AXS drivetrain for fast, precision shifting in any condition.

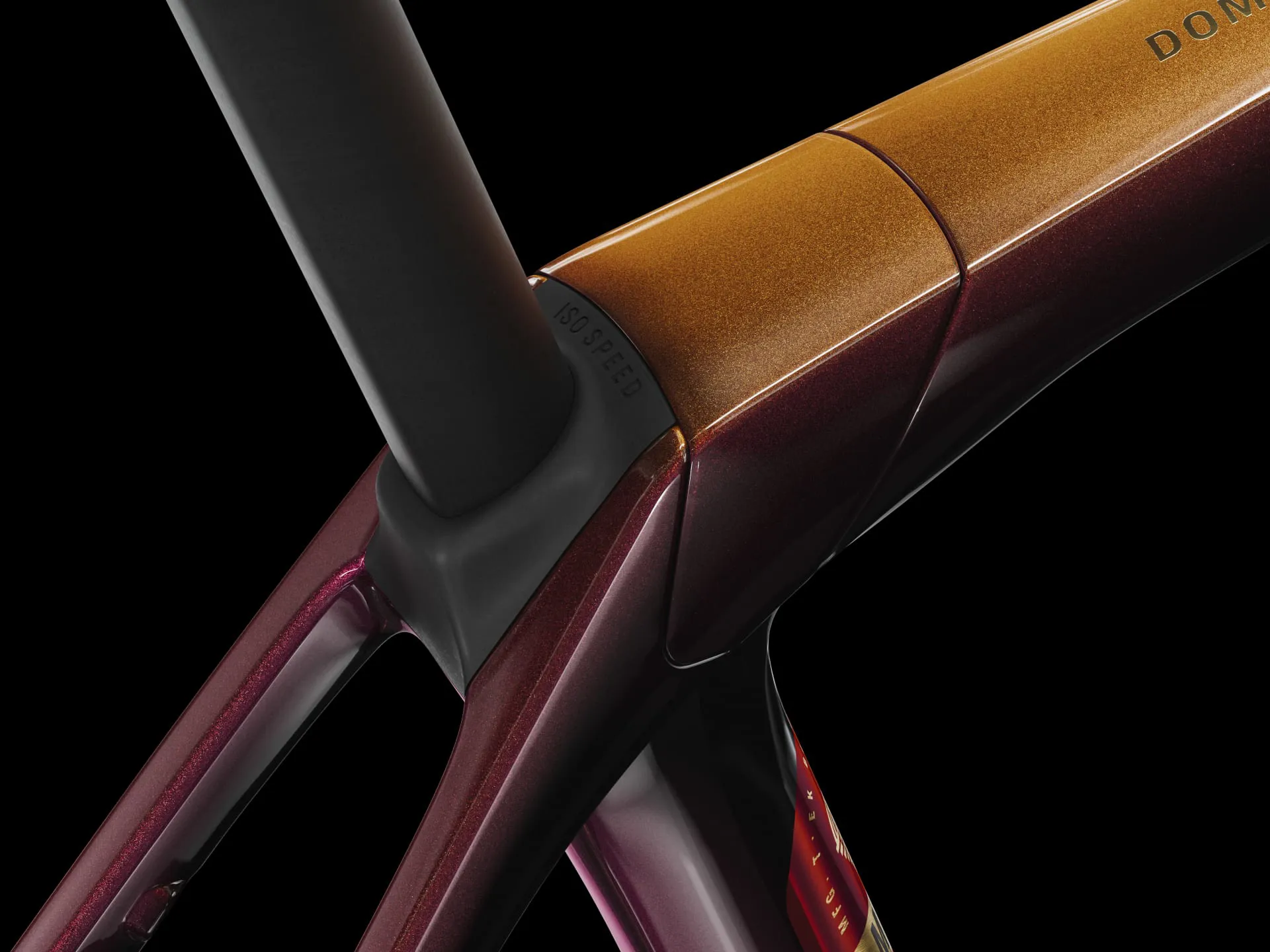

An ultra-light and refined 800 Series OCLV Carbon frame and fork with rear IsoSpeed, integrated internal storage and top tube mounts. It’s equipped with a SRAM RED AXS wireless electronic drivetrain, power meter cranks for monitoring performance metrics, powerful flat-mount disc brakes, Aeolus Pro 37 carbon wheels and a Bontrager Pro IsoCore handlebar that reduces vibrations from the road by 20% over a standard carbon bar.

Domane SLR 9 AXS delivers Trek's highest-end Domane carbon frame and race-ready parts like the SRAM RED wireless drivetrain and fast Pirelli P Zero Race tyres. You're getting tech that provides a real advantage in comfort, reliability and speed during long races, all-day adventures and competitive group rides.

Key Features & Benefits:

  • 800 Series OCLV Carbon frame:For an ultra-lightweight, fast and road-smoothing ride.

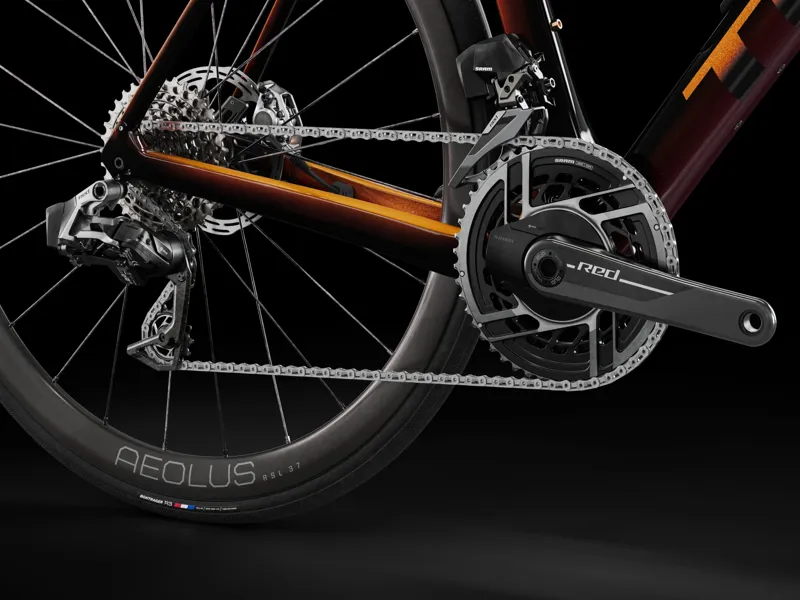

  • SRAM RED AXS Wireless Drivetrain:Offers fully wireless shifting that’s supremely light, precise, ergonomic and allows for one-finger braking.

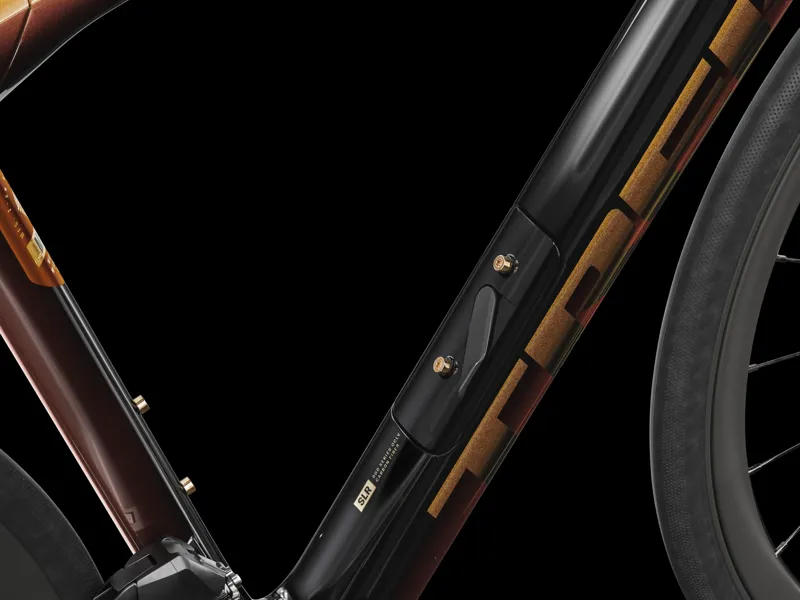

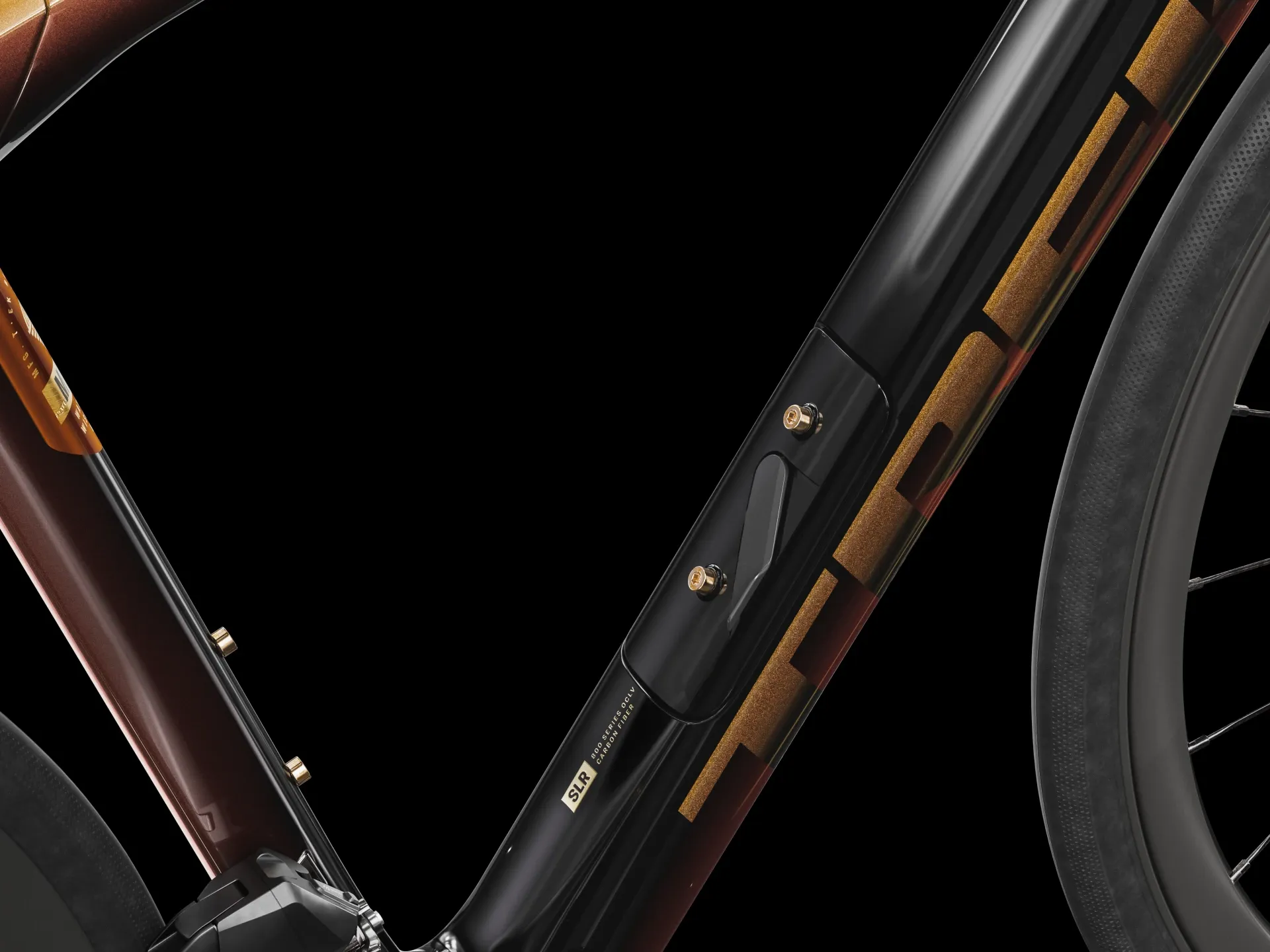

  • Internal Storage Compartment:Gives you a convenient spot for stowing tools and gear, while top tube mounts let you cleanly bolt on a bag for day-long adventures.

Full Specification:

  • Frame:800 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, mudguard mounts, flat mount disc, 142x12 mm thru axle
  • Fork:Domane SLR carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, carbon dropouts, 12x100 mm thru axle
  • Number of Gears:24
  • Gear Shifters:SRAM RED AXS E1
  • Chainset:SRAM RED AXS E1, power meter, 46/33, DUB, 47/50: 165mm, 52/54: 170mm, 56/58: 172.5mm, 60/62: 175mm
  • Chainrings:46/33T
  • Rear Cassette:SRAM RED XG-1290 E1, 10-36, 12 speed
  • Chain:SRAM RED E1, 12-speed
  • Front Derailleur:SRAM RED AXS E1, braze-on
  • Rear Derailleur:SRAM RED AXS E1, 36T max cog
  • Bottom Bracket:SRAM DUB, T47 threaded, internal bearing
  • Pedals:Not supplied:Shop pedals here
  • Front Wheel:Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth, 100 x 12 mm thru axle
  • Rear Wheel:Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth, 142 x 12 mm thru axle
  • Front Tyre:Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32 c
  • Rear Tyre:Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32 c
  • Brakes:SRAM RED E1 AXS hydraulic disc, SRAM Paceline X rotors, rounded, CentreLock, 160 mm

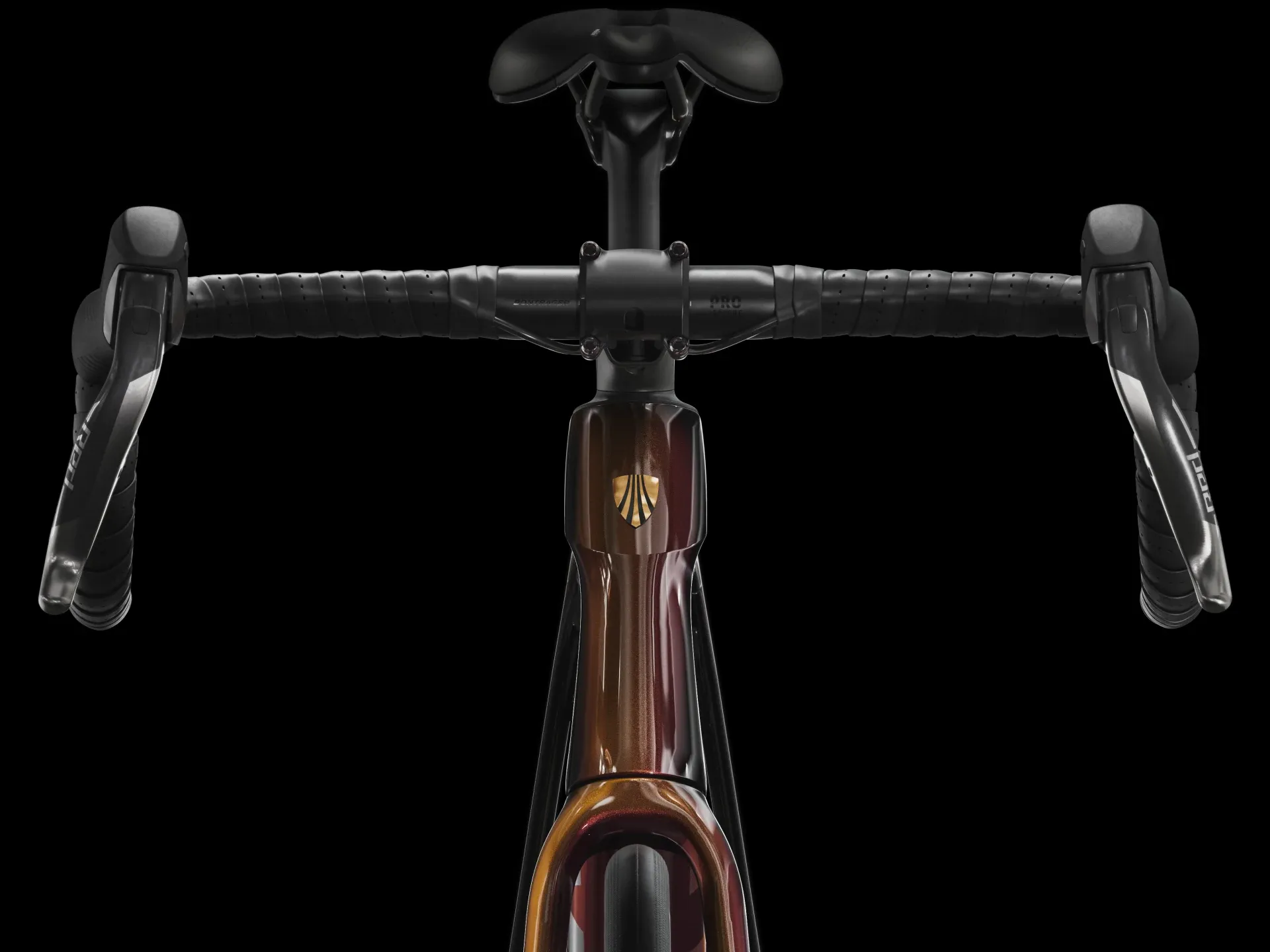

  • Handlebars:Bontrager Pro IsoCore VR-SF, 47: 38cm, 50/52: 40cm, 54/56: 42cm, 58/60/62: 44cm
  • Handlebar Tape:Bontrager Supertack Perf tape
  • Headset:Integrated
  • Stem:Trek RCS Pro, -7-degree, 47: 70mm, 50: 80mm, 52/54: 90mm, 56/58: 100mm, 60/62: 110mm
  • Saddle:Verse Short Pro, carbon rails, 47/50/52: 155 mm width, 54/56/58/60/62: 145mm width
  • Seatpost:KVF aero carbon seat post, 20 mm offset, 47/50/52/54/56: 280 mm length, 58/60/62: 320 mm length
  • Accessories:Bontrager BITS Internal Frame Storage Bag
  • Weight:56 - 7.48 kg / 16.5 lbs (with TLR sealant, no tubes)
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Sizing Chart for Trek Domane SL & SLR Unisex Carbon Road Bike

This chart can give a recommendation on which size may be best for you, however for the best results, please contact us or visit your local Balfe’s store for a personal consultation and test ride.
Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
44150-1534'11.1" - 5'0.2"71-7328-28.7
47152-1584'11.8" - 5'2.2"71-7528-29.5
50158-1635'2.2" - 5'4.2"74-7729.1-30.3
52163-1685'4.2" - 5'6.1"76-7929.9-31.1
54168-1745'6.1" - 5'8.5"78-8230.7-32.3
56174-1805'8.5" - 5'10.9"81-8531.9-33.5
58180-1855'10.9" - 6'0.8"84-8733.1-34.3
60185-1906'0.8" - 6'2.8"86-8933.9-35.4
62190-1956'2.8" - 6'4.8"89-9235.0-36.2

Geometry for Trek Domane SL & SLR Unisex Carbon Road Bike

All measurements in cm unless stated otherwise

Frame Size Number444750525456586062
Wheel Size700c700c700c700c700c700c700c700c700c
A - Seat Tube39.042.045.047.550.052.554.856.758.6
B - Seat Tube Angle74.6°74.6°74.6°74.2°73.7°73.3°73.0°72.8°72.5°
C - Head Tube Length9.511.013.014.516.017.519.522.024.5
D - Head Angle70.3°71.1°71.1°71.3°71.3°71.9°72.0°72.1°72.1°
E - Effective TT Length50.150.951.953.054.255.456.757.959.3
G - BB Drop8.08.08.08.08.07.87.87.57.5
H - Chainstay length42.042.042.042.042.042.042.542.542.5
I - Offset5.35.35.35.35.34.84.84.84.8
J -Trail6.66.16.05.95.96.16.05.95.9
K - Wheelbase98.398.699.6100.3101.0100.8102.2103.2104.2
L - Standover65.768.671.673.575.477.679.681.783.5
M - Frame Reach36.036.436.837.137.437.738.038.338.6
N - Frame Stack51.052.754.656.157.559.161.163.265.6

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com
