EX DEMO Trek Madone SL 6 Disc 105 Di2 Road Bike 56 2023 in Black

Trek

EX DEMO Trek Madone SL 6 Disc 105 Di2 Road Bike 56 2023 in Black

£3,495.00 £5,500.00 36% off

Size Guide

Earn

in Customer Rewards when you buy this item today

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Earn Rewards

When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

Any item, except food, face masks or e-gift vouchers (full e-gift vouchers T&Cs are listed on the respective product pages) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase. It is recommended that you use a recorded delivery service to ensure your items are received by us. We cannot assume responsibility for items that are lost in the post.

Online or in-store purchases can both be returned to any store free of charge or can be returned by post after completing the online returns form. If you are returning an item due to a fault, we will refund your postage.

If you wish to return your bike to us, please keep the box it arrived in and let us know using the returns form and we will arrange collection.

Customer Returns Form

If you wish to cancel, return or exchange an order please fill in the form below. Returns can be processed quicker if all required information is added.

Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the products have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:

1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £24.99 for collection. If you do not have the original box, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid receipt.

EX DEMO Trek Madone SL 6 Disc 105 Di2 Road Bike 56 2023 in Black

Season:2023

Brand:Trek

Code:SD5277064-A

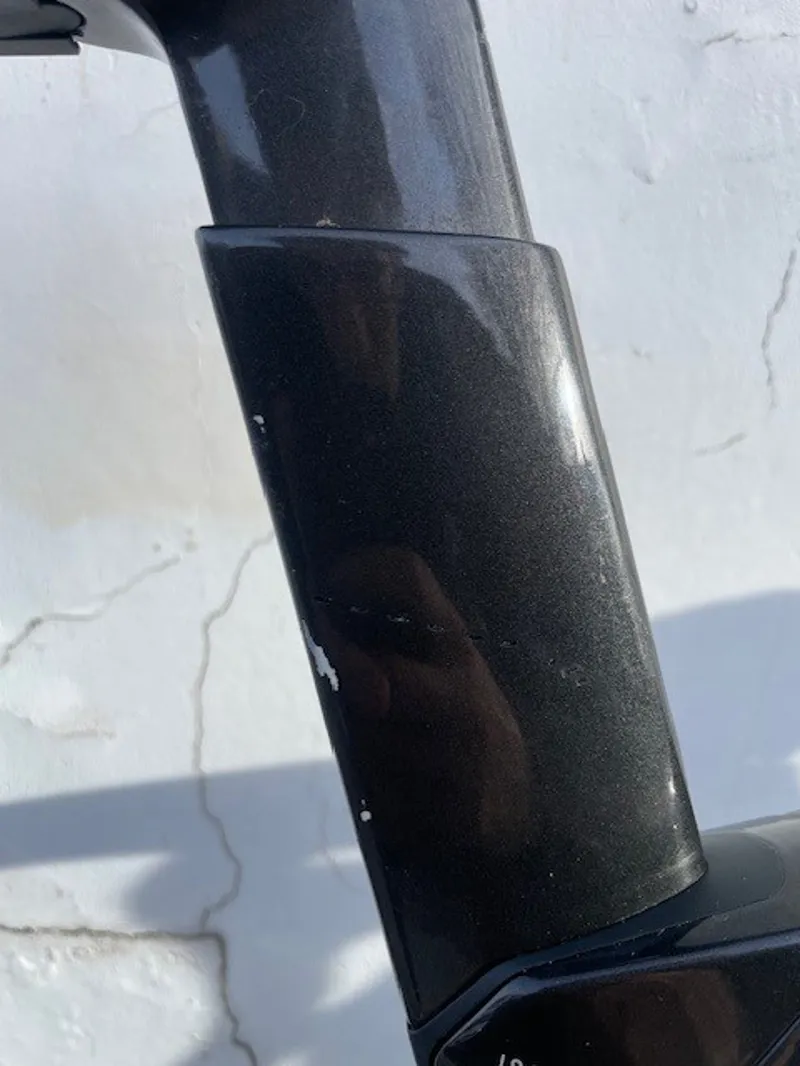

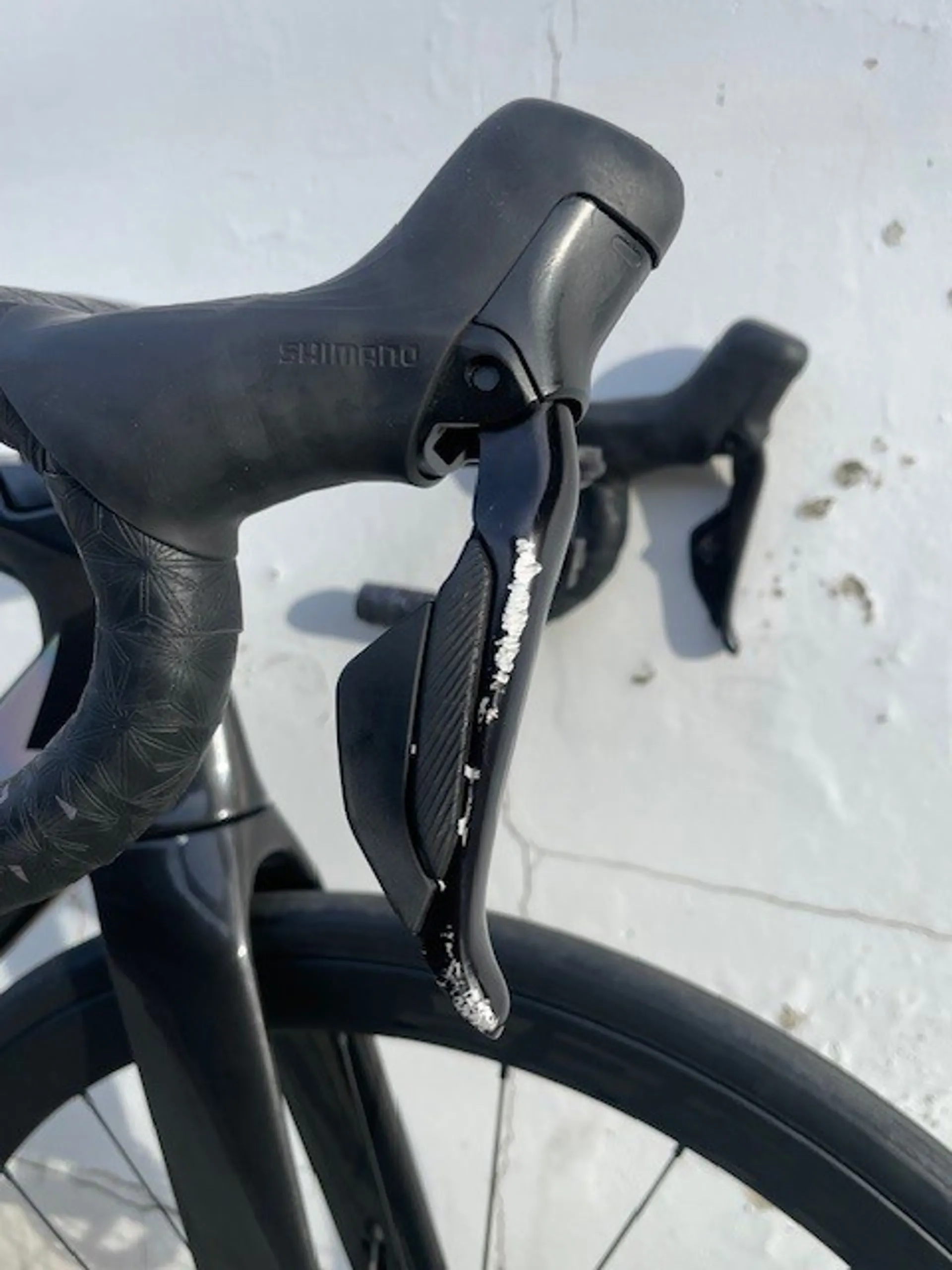

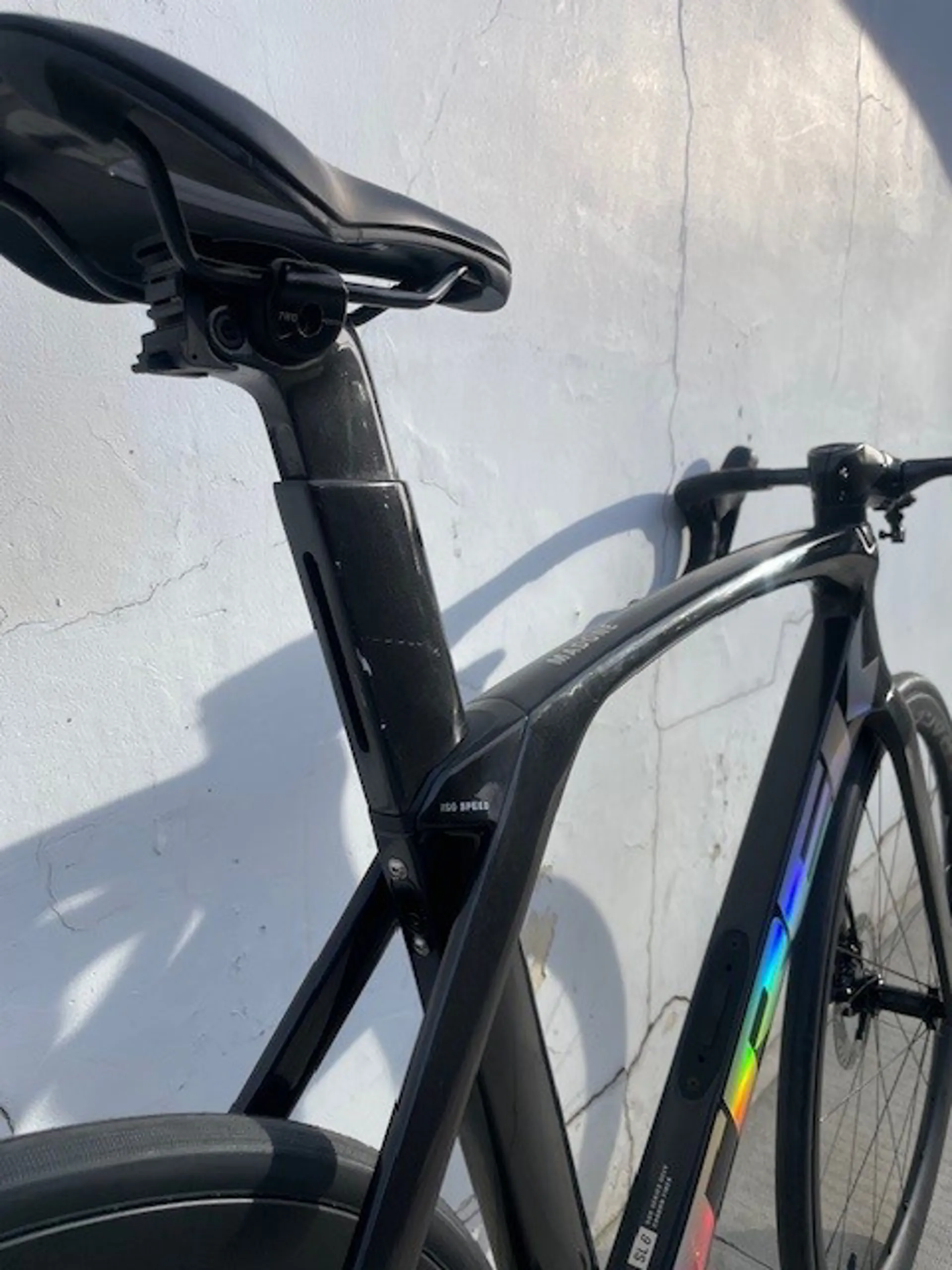

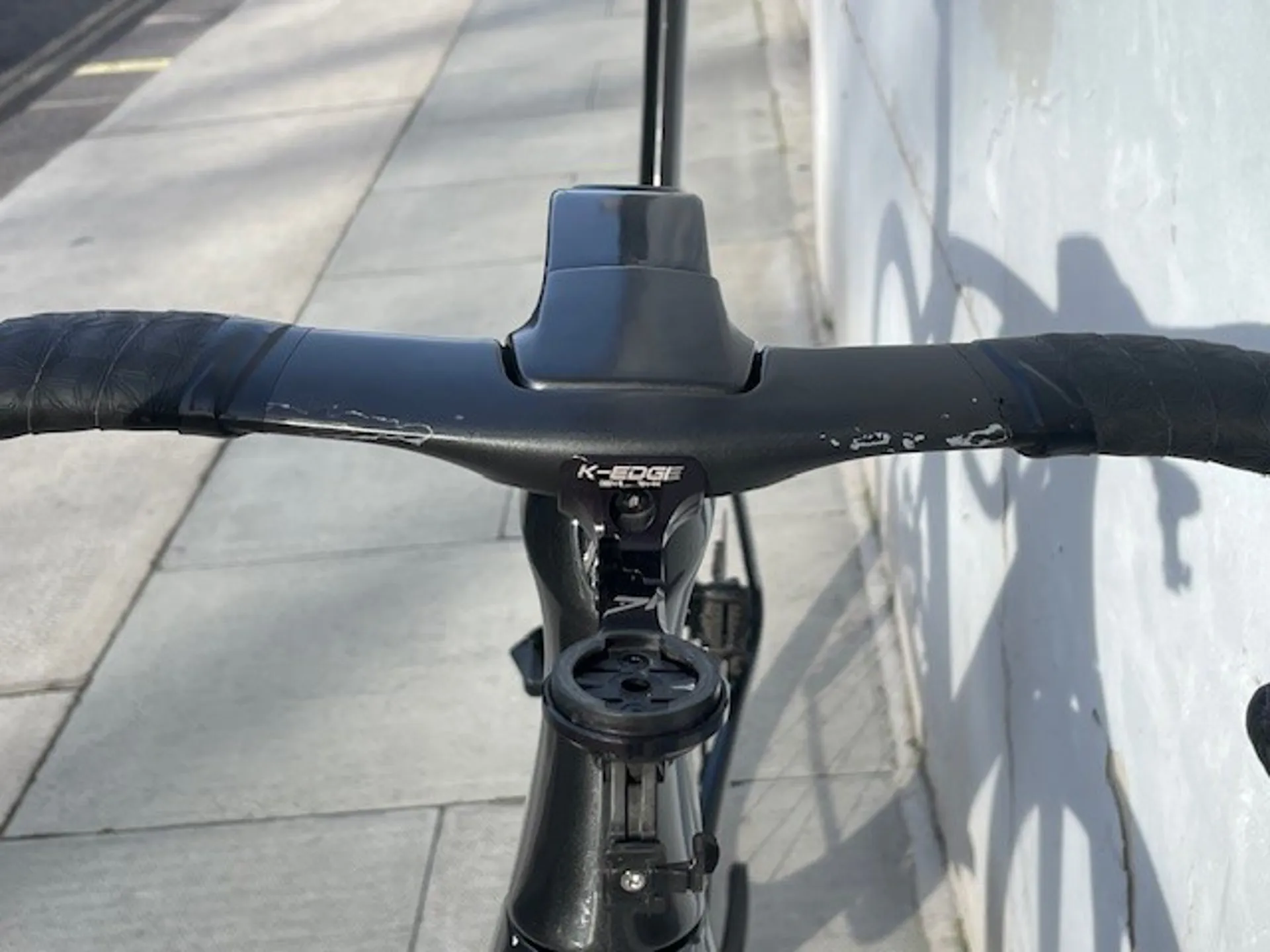

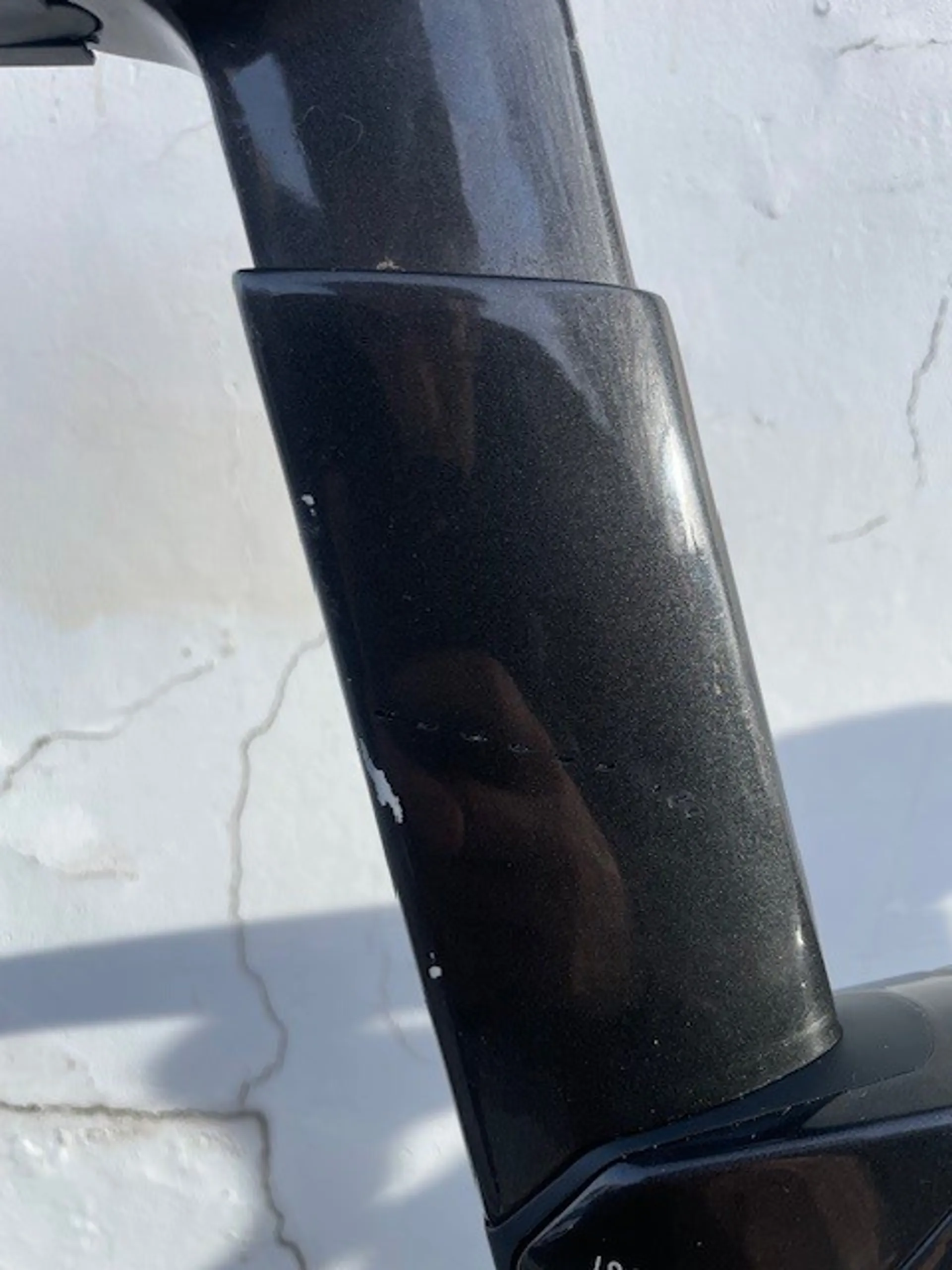

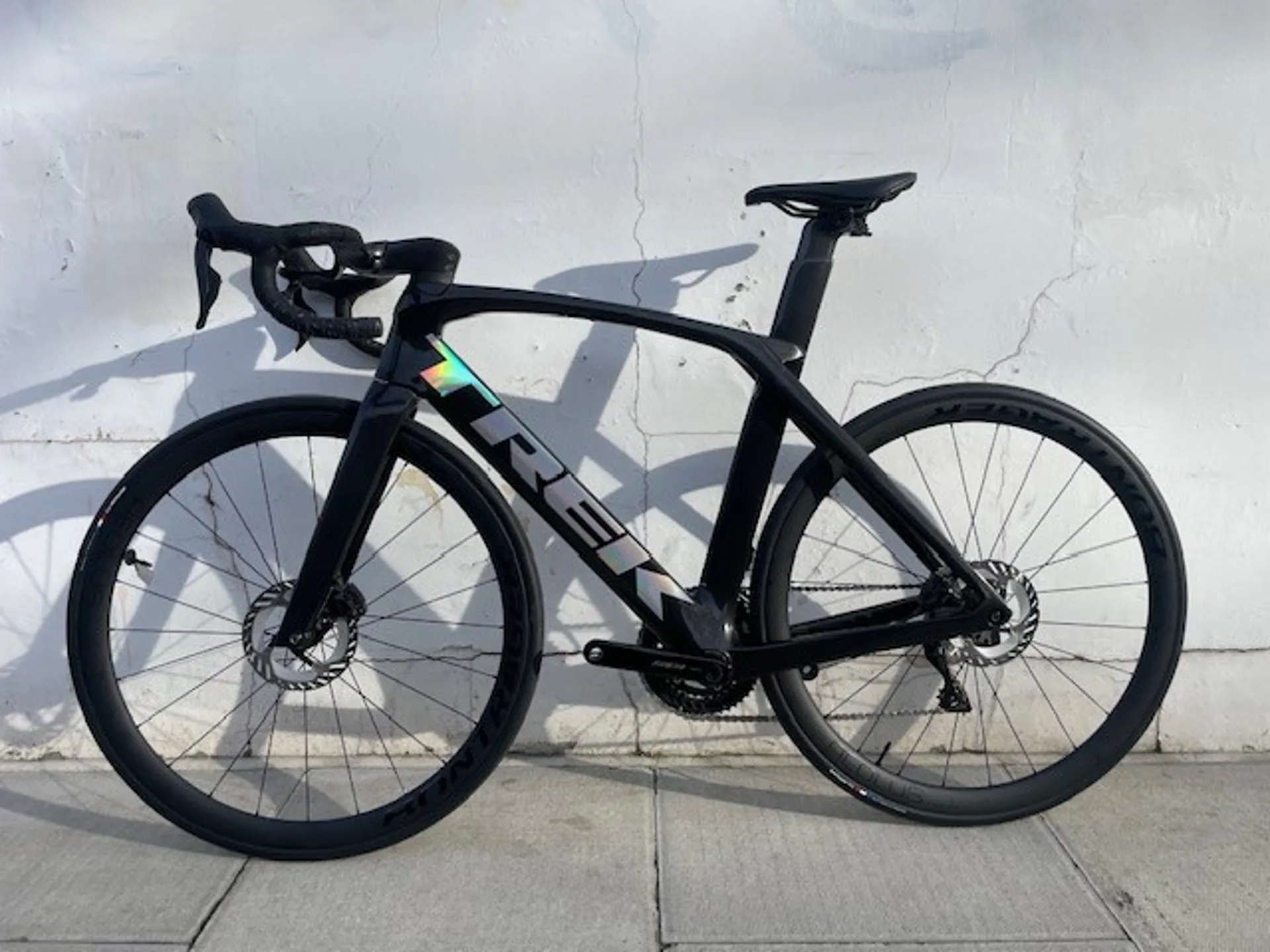

This Trek Madone SL 6 Disc 105 Di2 Road Bike in Size 56 is an ex-demo bike, it has been heavily used at demonstration events this season. It has cosmetic damage and scratches to the seatpost, shifters, chainset. The wheels and tyres are brand new, however differ from original spec. The handlebars have been swapped to a Madone SLR spec, and include an integrated K-edge mount. There is light use on the drivetrain, brakes, and rotors.

Our ex display bikes are fully serviced and checked to ensure your riding experience is the same as a new bike - we offer full manufacturers warranty on all our ex display and ex demo bikes.

Madone SL 6 Disc gives you the advanced aerodynamic performance and all-around ride quality of our ultimate race bike at a great value. It has Shimano's all-new wireless 105 Di2 electronic drivetrain, aero wheels, a road-smoothing IsoSpeed decoupler, powerful hydraulic disc brakes and a sleek look that screams for speed.

It has Shimano's all-new wireless 105 Di2 electronic drivetrain, aero wheels, a road-smoothing IsoSpeed decoupler, powerful hydraulic disc brakes and a sleek look that screams for speed.A lightweight 500 Series OCLV Carbon frame and fork with Kammtail Virtual Foil tubes that cut through the wind, a road-smoothing IsoSpeed decoupler, a Shimano 105 Di2 2x12 wireless electronic group set, tubeless-ready Bontrager Aeolus Elite 50 OCLV Carbon wheels, hydraulic disc brakes and an aero handlebar that's compatible with clip-on aero bars.

Adjustable Top Tube IsoSpeed lets you adjust compliance to your preference, and it's damped with an elastomer so it rebounds in a smooth, controlled, stable motion
The all-new wireless 105 Di2 delivers faster, smoother and more responsive shifts than ever
All the aero advantages of Madone, plus the added capability to clip on aero bars for triathlons and time trials
Disc brakes offer better braking performance and extra clearance for wider, more stable tyres
The Madone seat post has an integrated mount for the Bontrager Flare RT tail light

Key Features & Benefits

500 Series OCLV Carbon fibre frame:which achieves a superb balance of lightweight, strength and stiffness
H 1.5 Geometry:developed in conjunction with the Trek Segafredo and Drops pro cycling teams, puts the rider in the optimal aero race position and is featured on the Madone SLR family. It is the sweet spot for what racers want
Shimano 105 Di2 Groupset:Latest wireless version proven reliable and fantastic value for money

Full Specification

Frame:500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, 3S aero chain keeper, T47 BB, flat-mount disc, Duo Trap S-compatible, 142x12 mm thru-axle
Fork:Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat mount disc
Number of Gears:24
Gear Shifters:Shimano 105 R7170, 12-speed

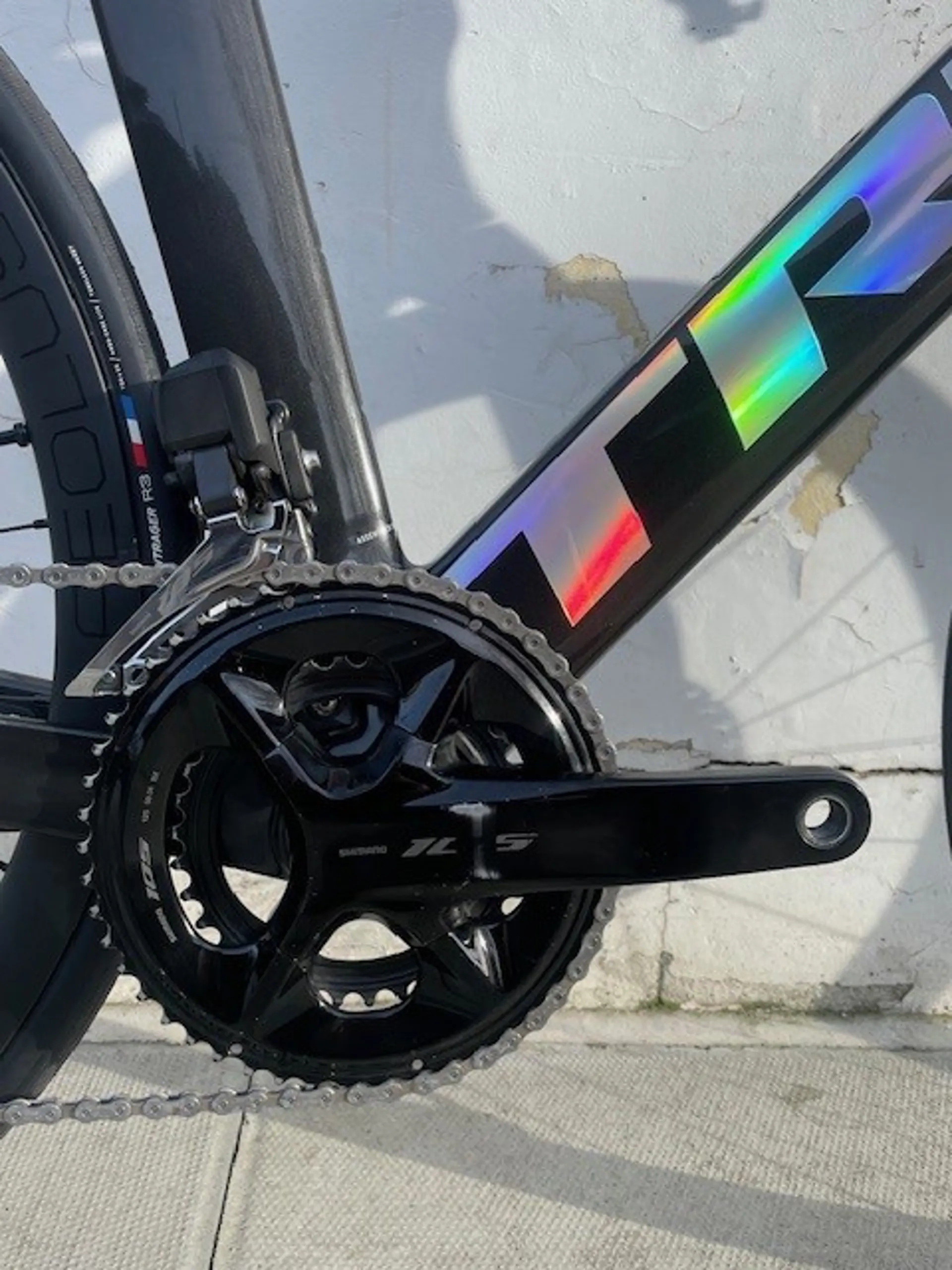

Chainset:Shimano 105 R7100, 50/34, 172.5 mm length
Chainrings:50/34T
Rear Cassette:Shimano 105 7100, 11-34, 12-speed
Chain:Shimano SLX M7100, 12-speed
Front Derailleur:Shimano 105 R7170

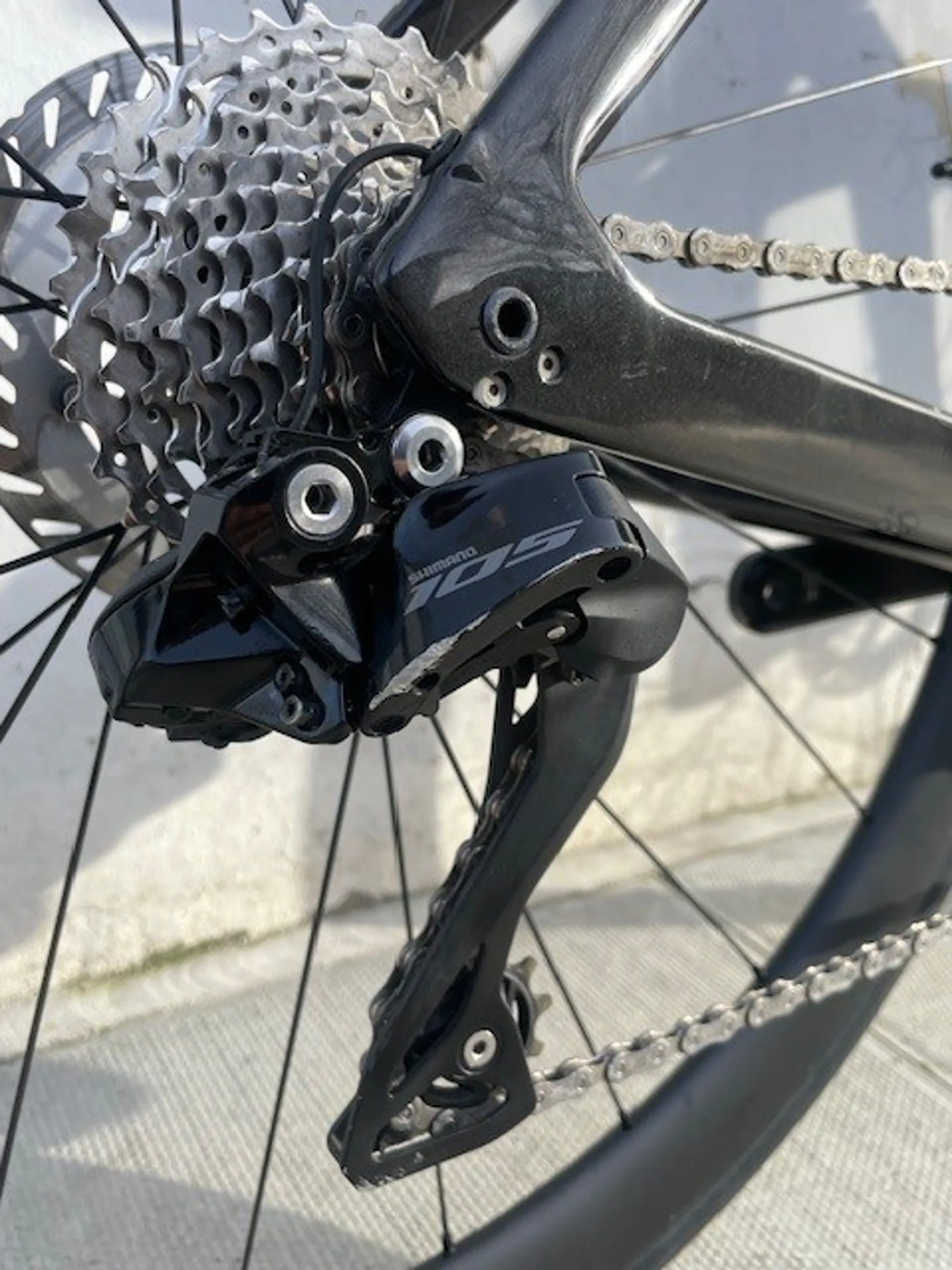

Rear Derailleur:Shimano 105 R7170
Bottom Bracket:Praxis, T47 threaded, internal bearing
Pedals:Not Included
Rims:Bontrager Aeolus Pro 37 TLR, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
Front Hub:Bontrager Aeolus Pro
Rear Hub:Bontrager Aeolus Pro, Shimano/SRAM Road 9/10/11-speed
Front Tyre:Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c, supplied with inner tubes
Rear Tyre:Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c, supplied with inner tubes
Brakes:Shimano SM-RT70, CenterLock, 160 mm Rotors (used)
Handlebars:Trek Madone SLR Road Handlebar, 380mm
Handlebar Tape:Superkaz
Headset:Madone integrated, stainless cartridge bearings, sealed, 1-3
Stem:Trek Madone SLR Stem - Low fit 15 deg. x 100mm
Saddle:Bontrager Aeolus Comp, steel rails
Seatpost:Madone aero carbon seat mast cap, integrated light mount, 5mm offset, short/tall size dependant
Accessories:K-Edge Garmin Trek Madone Combi Mount (KE3100ICBK), charger
Weight:56 - 8.70 kg / 19.19 lbs

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Size Guide for Trek Madone SL/SLR Bikes

This chart can give a recommendation on which size may be best for you, however for the best results, please contact us or visit your local Balfe’s store for a personal consultation and test ride.

Frame Size	Rider Height (cm)	Rider Height (')	Inseam (cm)	Inseam (")
47	152 - 158 cm	5'0" - 5'2"	71 - 75 cm	28" - 30"
50	158 - 163 cm	5'2" - 5'4"	74 - 77 cm	29" - 30"
52	163 - 168 cm	5'4" - 5'6"	76 - 79 cm	30" - 31"
54	168 - 174 cm	5'6" - 5'9"	78 - 82 cm	31" - 32"
56	174 - 180 cm	5'9" - 5'11"	81 - 85 cm	32" - 33"
58	180 - 185 cm	5'11" - 6'1"	84 - 87 cm	33" - 34"
60	185 - 190 cm	6'1" - 6'3"	86 - 90 cm	34" - 35"
62	190 - 195 cm	6'3" - 6'5"	89 - 92 cm	35" - 36"

Geometry Information for Trek Madone SL/SLR Bikes

Frame size number	47 cm	50 cm	52 cm	54 cm	56 cm	58 cm	60 cm	62 cm
Wheel size	700c	700c	700c	700c	700c	700c	700c	700c
A — Seat tube	42.4	45.3	48.3	49.6	52.5	55.3	57.3	59.3
B — Seat tube angle	74.6°	74.6°	74.2°	73.7°	73.3°	73.0°	72.8°	72.5°
C — Head tube length	10	11.1	12.1	13.1	15.1	17.1	19.1	21.1
D — Head angle	72.1°	72.1°	72.8°	73.0°	73.5°	73.8°	73.9°	73.9°
E — Effective top tube	51.2	52.1	53.4	54.3	55.9	57.4	58.6	59.8
G — Bottom bracket drop	7.2	7.2	7.2	7	7	6.8	6.8	6.8
H — Chainstay length	41	41	41	41	41	41.1	41.1	41.2
I — Offset	4.5	4.5	4.5	4.5	4	4	4	4
J — Trail	6.8	6.2	5.8	5.6	5.8	5.7	5.6	5.6
K — Wheelbase	97.2	97.4	97.7	98.1	98.3	99.2	100.1	101
L — Standover	69.2	71.1	73.2	74.4	76.8	79.3	81.1	82.9
M — Frame reach	37.3	37.8	38.3	38.6	39.1	39.6	39.9	40.3
N — Frame stack	50.7	52.1	53.3	54.1	56.3	58.1	60.1	62
Saddle rail height min (w/short mast)	55.5	58.5	61.5	64	67	69	71	73
Saddle rail height max (w/short mast)	61.5	64.5	67.5	70	73	75	77	79
Saddle rail height min (w/tall mast)	59	62	65	67.5	70.5	72.5	74.5	76.5
Saddle rail height max (w/tall mast)	65	68	71	73.5	76.5	78.5	80.5	82.5

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com
