FRAME
M5 alloy, Style-Specific DH Geometry, horst pivot flip chip for 27.5 or 29 rear wheel, BSA threaded BB, full internal cable routing with option for full external brake, 148mm rear spacing, sealed cartridge bearing pivots, replaceable derailleur hanger, 200mm of travel
-
SEAT BINDER
Alloy, 34.9mm
-
REAR SHOCK
RockShox Super Deluxe Ultimate DH Coil, external low speed compression, external rebound adjust, Trunnion mount, 225x75
-
FORK
RockShox BoXXer Ultimate 29, Charger 2.1 Damper, DH DebonAir spring, short crown, 20x110mm thru-axle, 56mm offset, 200mm of travel
-
STEM
Descendant 35mm Direct Mount Stem, 50mm length
-

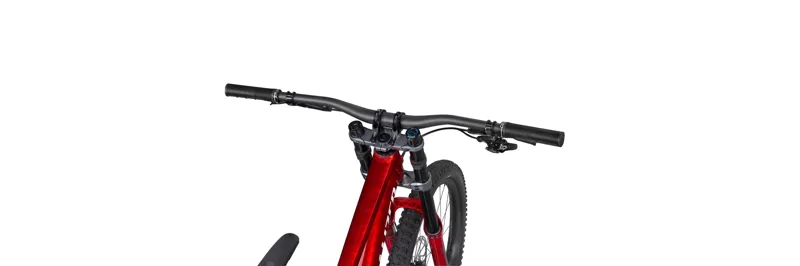

HANDLEBARS
Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 800mm, 35.0mm
-
GRIPS
Deity, Knuckleduster, Black
-
SADDLE
Body Geometry Henge DH, hollow titanium rails, 130mm
-

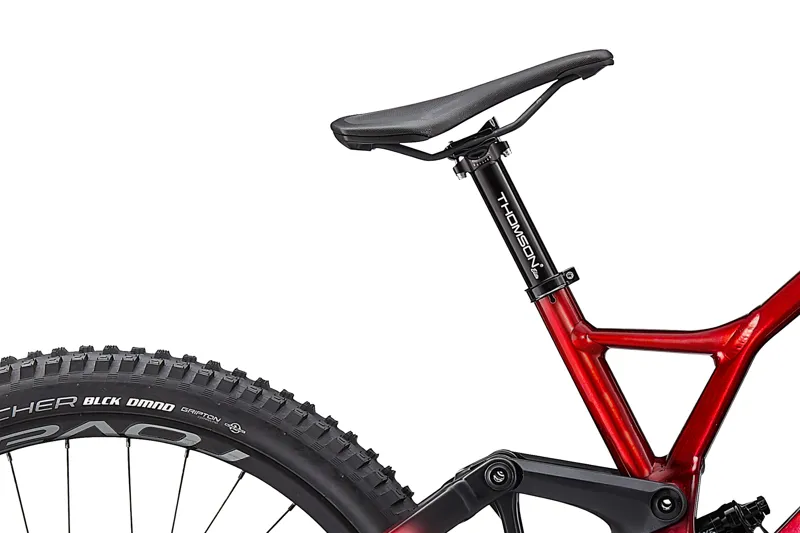

SEATPOST
Thomson, alloy, straight, 12-degree clamp
-
FRONT BRAKE
SRAM Code RSC, 4-piston caliper, hydraulic disc, 220mm
-
REAR BRAKE
SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm
-
REAR DERAILLEUR
SRAM X01 DH, 7-speed, trigger
-
SHIFT LEVERS
SRAM X01 DH, trigger, 7-speed
-
CASSETTE
SRAM X01 DH, 7-speed, 10-24t
-
CHAIN
Sram PC1130 w/ Powerlink, 11-speed
-
CHAINRINGS
34T
-
BOTTOM BRACKET
SRAM DUB, 83mm
-
CRANKSET
SRAM X01 DH, DUB, carbon, Direct mount ring, 165mm
-
RIMS
Roval Alloy DH, 29 front, 27.5 rear, 28mm internal width, 28h, tubeless ready
-
REAR HUB
DT Swiss 350, SRAM XD freehub, 6-bolt disc, high-low flange, sealed cartridge bearings, 12x148mm spacing, 28h
-
SPOKES
DT Swiss Competition, stainless steel, 14g
-
FRONT TIRE
Butcher BLCK DMND, 29x2.3"
-
REAR TIRE
Butcher BLCK DMND, 27.5x2.3"
-
INNER TUBES
Standard, Presta Valve
-
FRONT HUB
Alloy, sealed cartridge bearings, 20x110mm, 28h
