The FX 2 Equipped is a stylish and versatile hybrid bike that comes with a whole suite of ride-ready accessories.

Trek

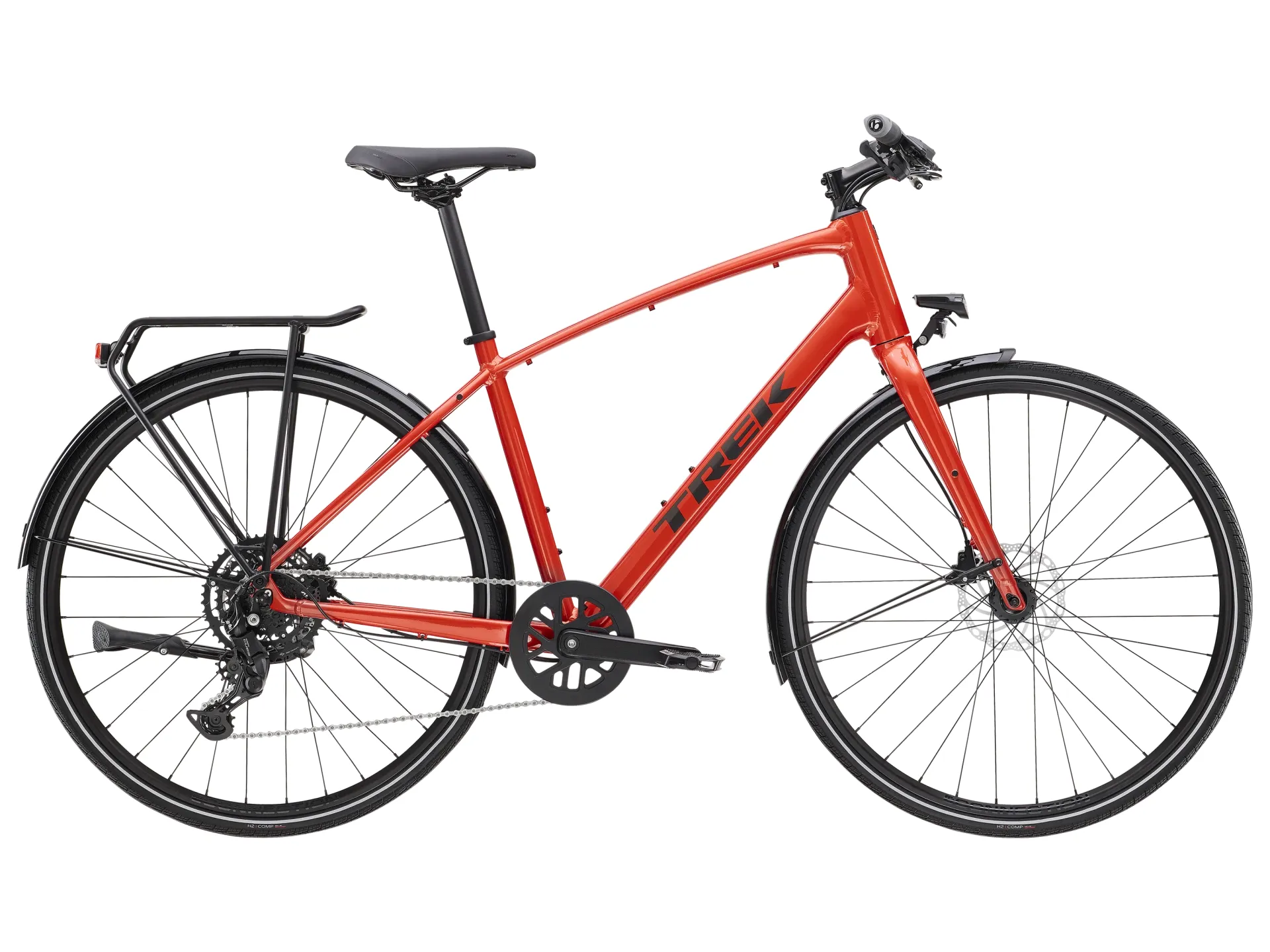

Trek FX 2 Equipped Hybrid Bike 2025 in Lava Red

£800.00

Size Guide

Earn

in Customer Rewards when you buy this item today

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Earn Rewards

When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

Any item, except food, face masks or e-gift vouchers (full e-gift vouchers T&Cs are listed on the respective product pages) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase. It is recommended that you use a recorded delivery service to ensure your items are received by us. We cannot assume responsibility for items that are lost in the post.

Online or in-store purchases can both be returned to any store free of charge or can be returned by post after completing the online returns form. If you are returning an item due to a fault, we will refund your postage.

If you wish to return your bike to us, please keep the box it arrived in and let us know using the returns form and we will arrange collection.

Customer Returns Form

If you wish to cancel, return or exchange an order please fill in the form below. Returns can be processed quicker if all required information is added.

Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the products have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:

1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £24.99 for collection. If you do not have the original box, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid receipt.

Trek FX 2 Equipped Hybrid Bike 2025 in Lava Red

Season:2025

Brand:Trek

Code:40506RED

The FX 2 Equipped is a stylish and versatile hybrid bike that comes with a whole suite of ride-ready accessories. Exercise, commute or ride for fun with the lightweight aluminium frame, 18 speeds and versatile, long-lasting tyres that are fast on the road and stable on loose terrain.

You want a high-value hybrid bike with quality parts, ride-ready accessories and the superior all-weather stopping power of disc brakes.

A lightweight aluminium frame with hydraulic disc brakes for all-weather stopping power, a Shimano drivetrain with 9 speeds and a wide range of gearing so you're never pedalling too hard or too soft, and all the accessories you need to ride!

The FX 2 Equipped is a go-anywhere hybrid bike with parts that perform on fitness rides, trips to the market or your morning commute. Plus it comes with a rear rack, mudguards and lights so you’re ready to ride straight away.

Key Features & Benefits:

Aluminium Frame:Lightweight with internal cable routing and comfortable, upright geometry.
Hydraulic Disc Brakes:For superior all-weather stopping power.
Shimano 9-Speed:Wide range of gearing so you're never pedalling too hard or too soft

Full Specification:

Frame:Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5 mm QR
Fork:FX alloy, flat-mount disc, rack mounts, 410 mm axle-to-crown, ThruSkew 5 mm QR
Number of Gears:9
Gear Shifters:Shimano U4000, 9-speed
Chainset:Prowheel Pro alloy, 40T narrow-wide steel ring, 170 mm length
Chainrings:40T
Rear Cassette:Shimano LINKGLIDE LG300, 11-46, 9-speed
Chain:Shimano LG500
Bottom Bracket:Sealed cartridge, 68 mm
Pedals:Bontrager City pedals
Rims:Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Front Hub:Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Rear Hub:Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Front Tyre:Bontrager H2 Comp, wire bead, 30 tpi, 700x35 mm
Rear Tyre:Bontrager H2 Comp, wire bead, 30 tpi, 700x35 mm
Brakes:Tektro HD-R280 hydraulic disc, 160 mm rotor
Handlebars:Size: S, M Bontrager alloy, 31.8 mm, 15 mm rise, 600 mm width, Size: L, XL
Bontrager alloy, 31.8 mm, 15 mm rise, 660 mm width
Handlebar Grips:Bontrager Satellite
Headset:
Stem:Size: S, M Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length,
Size: L, XL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length
Saddle:Bontrager Sport
Seatpost:Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
Accessories:Size: S, M, L, XL Spanninga SOLO, Size: S, M, L, XL AXA Greenline 35, USB rechargeable, Alloy, rear-mount kickstand, Size: S, M, L, XL SKS plastic rear mudguard, Size: S, M, L, XL SKS plastic front mudguard, MIK-compatible alloy rear cargo rack
Weight:Weight Limit - This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Sizing Chart for Trek FX 1, 2 & 3

Frame Size	Rider Height (cm)	Rider Height (')	Inseam (cm)	Inseam (")
XS	147 - 155	4'10" - 5'1"	69 - 73	27" - 29
S	155 - 165	5'1" - 5'5"	72 - 78	28 - 30
M	165 - 175	5'5" - 5'8"	77 - 83	30 - 32
L	175 - 186	5'8" - 6'1"	82 - 88	32 - 34
XL	186 - 197	6'1" - 6'5"	87 - 93	35 - 36
XXL	197 - 203	6'6" - 6'8"	92 - 95	36" - 37

Geometry Information for Trek FX 1, 2 & 3

Frame size letter	XS	S	M	L	XL	XXL
Wheel size	700c	700c	700c	700c	700c	700c
A — Seat tube	33	37.5	42	46.5	52	58.5
B — Seat tube angle	75.0°	74.5°	74.0°	73.5°	72.5°	72.0°
C — Head tube length	11.5	14	16.5	19	21.5	24
D — Head angle	70.0°	70.5°	71.0°	71.5°	72.5°	73.0°
E — Effective top tube	52.8	54.3	56.3	58.3	61.3	63.5
F — Bottom bracket height	28.5	28.5	28.5	28.5	28.5	28.5
G — Bottom bracket drop	6.5	6.5	6.5	6.5	6.5	6.5
H — Chainstay length	44.7	44.7	44.7	44.7	44.7	44.7
I — Offset	5	5	5	5	5	5
J — Trail	7.4	7.1	6.8	6.4	5.8	5.5
K — Wheelbase	105.2	105.9	107	108	108.7	109.7
L — Standover	67.5	71.5	75.4	79.1	83.6	88.4
M — Frame reach	38.3	38.5	39.3	39.9	40.9	41.6
N — Frame stack	54.3	56.8	59.4	62	64.8	67.3

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com
