Trek Rail+ 9.9 X0 AXS T-Type Gen 5 Electric Full Suspension Mountain Bike 2025 in Slate Grey

Season:2025

Brand:Trek

Code:48472GRY

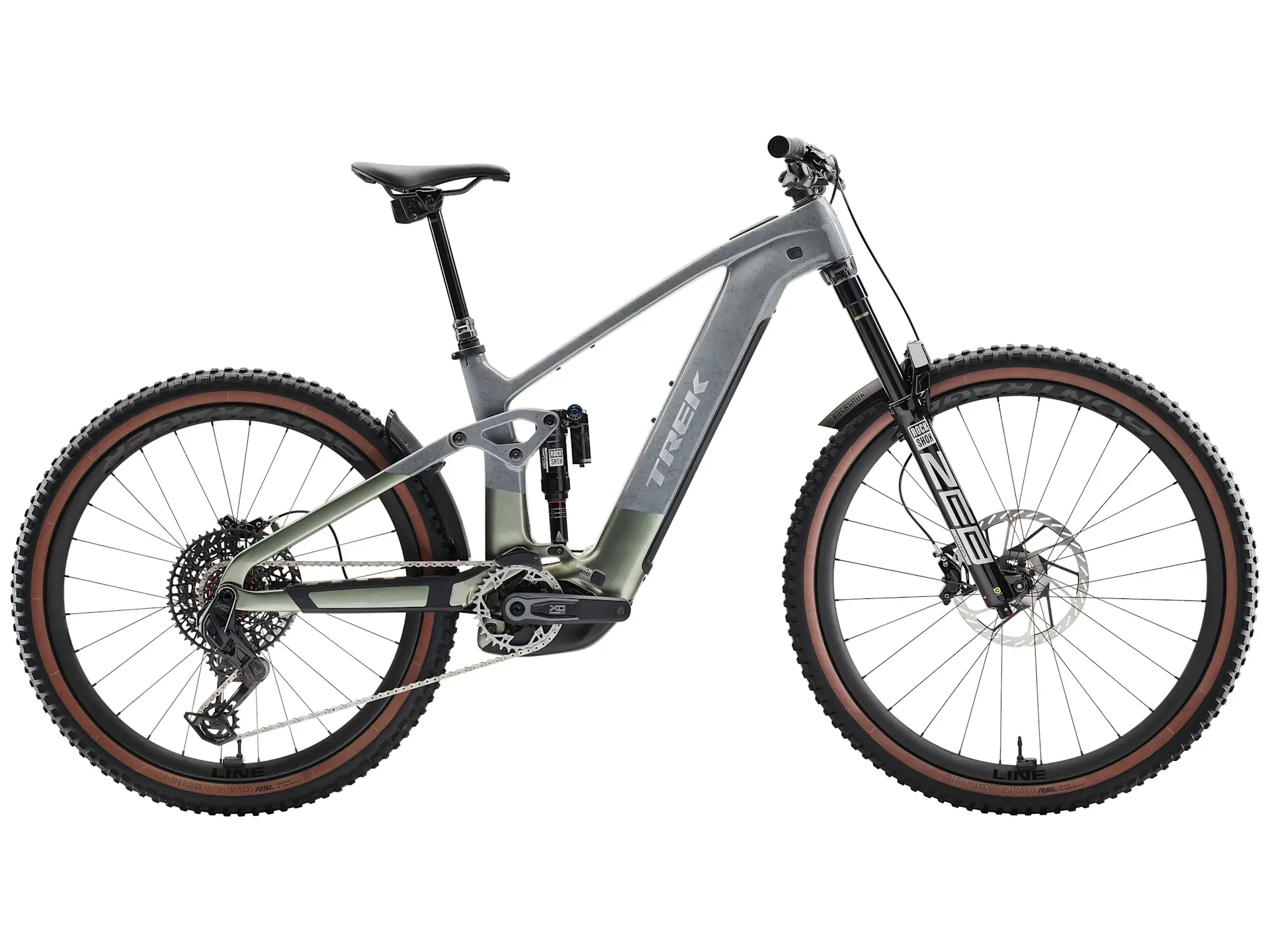

The Rail+ 9.9 is Trek's top carbon enduro e-MTB made for your most epic adventures. Its robust carbon frame packs 160 mm of front and rear upgraded RockShox suspension and adjustable geometry you can tune to how and where you ride. It comes equipped with a Bosch CX Line motor that delivers serious torque for ripping up climbs and a huge 800 Wh RIB 2.0 removable integrated battery. It's topped off with all the bells and whistles you want – like carbon wheels and a wireless SRAM X0 transmission.

It's right for you if...

You want a big, power-packed e-bike that's built for massive adventure and doesn't skimp on choice parts. You need plenty of travel for rough and rowdy terrain, a powerful motor that crushes climbs and a massive battery to keep you going on your longest rides yet. Upgrades matter, and you want SRAM's top wireless transmission and the added benefit of a RockShox suspension package.

The tech you get

An OCLV Mountain Carbon frame with Bosch Performance CX system (85 Nm, 250 W) and a massive 800 Wh RIB 2.0 removable integrated battery. A 160 mm RockShox ZEB Ultimate fork with DebonAir spring and Charger 3 RC2 damper, and RockShox Super Deluxe rear shock. Tubeless Ready Bontrager Line Pro 30 carbon wheels, SRAM's X0 AXS wireless electronic transmission that shifts clean even under load, plus SRAM Maven hydraulic disc brakes for stopping on a dime and a RockShox Reverb AXS dropper post.

The final word

The Rail+ 9.9 is the cream of the crop for epic e-bike adventures. It delivers an upgraded suspension package, a powerful motor for crushing big climbs and a massive battery that keeps you going mile after mile, plus, RockShox TyreWiz. This beast of a bike is built to deliver your every dream.

Key Features & Benefits:

  • Carbon Frame:Lightweight & efficient for trail riding.
  • 12-Speed SRAM AXS Transmission:Perfect for all terrain and fully wireless.
  • 800 Wh Battery:Massive capacity from the 800 Wh RIB 2.0 removable integrated battery

Full Specification:

  • Frame:OCLV Mountain Carbon
  • Rear Shock:RockShox Super Deluxe Ultimate RC2T, 205x65 mm
  • Fork:RockShox ZEB Ultimate, DebonAir spring, Charger 3.1 RC2 damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 160 mm travel
  • Motor:Bosch Performance Line CX, 20 mph (25 km/h in Europe)
  • Controller:Bosch System Controller BRC3100, smart system
  • Battery:800 Wh RIB 2.0 removable integrated battery.
  • Charger:Bosch standard 4A, 230V, smart system
  • Number of Gears:12
  • Gear Shifters:SRAM AXS
  • Chainset:SRAM X0 Eagle, 160 mm length
  • Chainrings:36T
  • Rear Cassette:SRAM Eagle XS-1295, T-Type, 10-52, 12-speed
  • Chain:SRAM X0 Eagle, T-Type, 12-speed
  • Front Derailleur:N/A
  • Rear Derailleur:SRAM X0 Eagle AXS, T-Type
  • Bottom Bracket:.
  • Pedals:VP-536 nylon platform
  • Rims:Bontrager Line Comp 30, Tubeless Ready, 6-bolt
  • Front Hub:Size: S - Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 27.5", Size: M, L, XL - Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29"
  • Rear Hub:Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless-Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle
  • Front Tyre:Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 29x2.50"
  • Rear Tyre:Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 29x2.50"
  • Brakes:SRAM Code Silver 4-piston hydraulic disc
  • Handlebars:Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
  • Handlebar Grips:Bontrager XR Trail Elite, nylon lock-on
  • Headset:Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
  • Stem:Bontrager Line Pro, 35 mm, Blendr-compatible, 0-degree, 45 mm length
  • Saddle:Verse Short Comp, steel rails, 145 mm width
  • Seatpost:Size: S - RockShox Reverb AXS, 100 mm travel, wireless, 34.9 mm, 340 mm length, Size: M, L, XL - RockShox Reverb AXS, 170 mm travel, wireless, 34.9 mm, 480 mm length
  • Accessories:.
  • Weight:This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Sizing Chart for Trek Rail Gen 5

Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
S155 - 165 cm5'1" - 5'5"74 - 78 cm29" - 31"
M165 - 176 cm5'5" - 5'9"79 - 83 cm31" - 33"
L177 - 188 cm5'10" - 6'2"84 - 89 cm33" - 35"
XL188 - 195 cm6'2" - 6'5"89 - 91 cm35" - 36"

Geometry Information for Trek Rail Gen 5

Frame size number15.5"15.5"17.5"17.5"19.5"19.5"21.5"21.5"
Frame size letterSSMMLLXLXL
Geometry positionHighLowHighLowHighLowHighLow
Wheel size27.5"27.5"29"/27.5"29"/27.5"29"/27.5"29"/27.5"29"/27.5"29"/27.5"
A —Seat tube3838414143.543.54747
B —Seat tube angle75.3°74.8°75.3°74.8°75.2°74.8°75.2°74.8°
Effective seat tube angle77.9°77.4°77.7°77.2°77.5°77.0°77.4°76.9°
C —Head tube length10101010121214.514.5
D —Head angle65.0°64.5°65.0°64.5°65.0°64.5°64.9°64.5°
E —Effective top tube56.256.359.159.263.963.96767
F —Bottom bracket height34.433.834.533.834.533.834.533.8
G —Bottom bracket drop1.21.81.82.41.82.41.72.4
H —Chainstay length44.644.844.644.844.644.844.644.8
I —Offset4.34.34.34.34.34.34.34.3
J —Trail11.912.212.713.112.713.112.713.1
K —Wheelbase120.1127.8122.9123127.7127.8131.3131.4
L —Standover76.375.877.576.977.576.979.877.9
M —Frame reach43.54345.54549.5495251.5
N —Frame stack59.859.463.162.764.964.567.266.7




Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.
