The Rail+ 9.8 is a carbon enduro e-MTB made for chasing after distant peaks and hammering out laps.
The Rail+ 9.8 is a carbon enduro e-MTB made for chasing after distant peaks and hammering out laps.
Trek

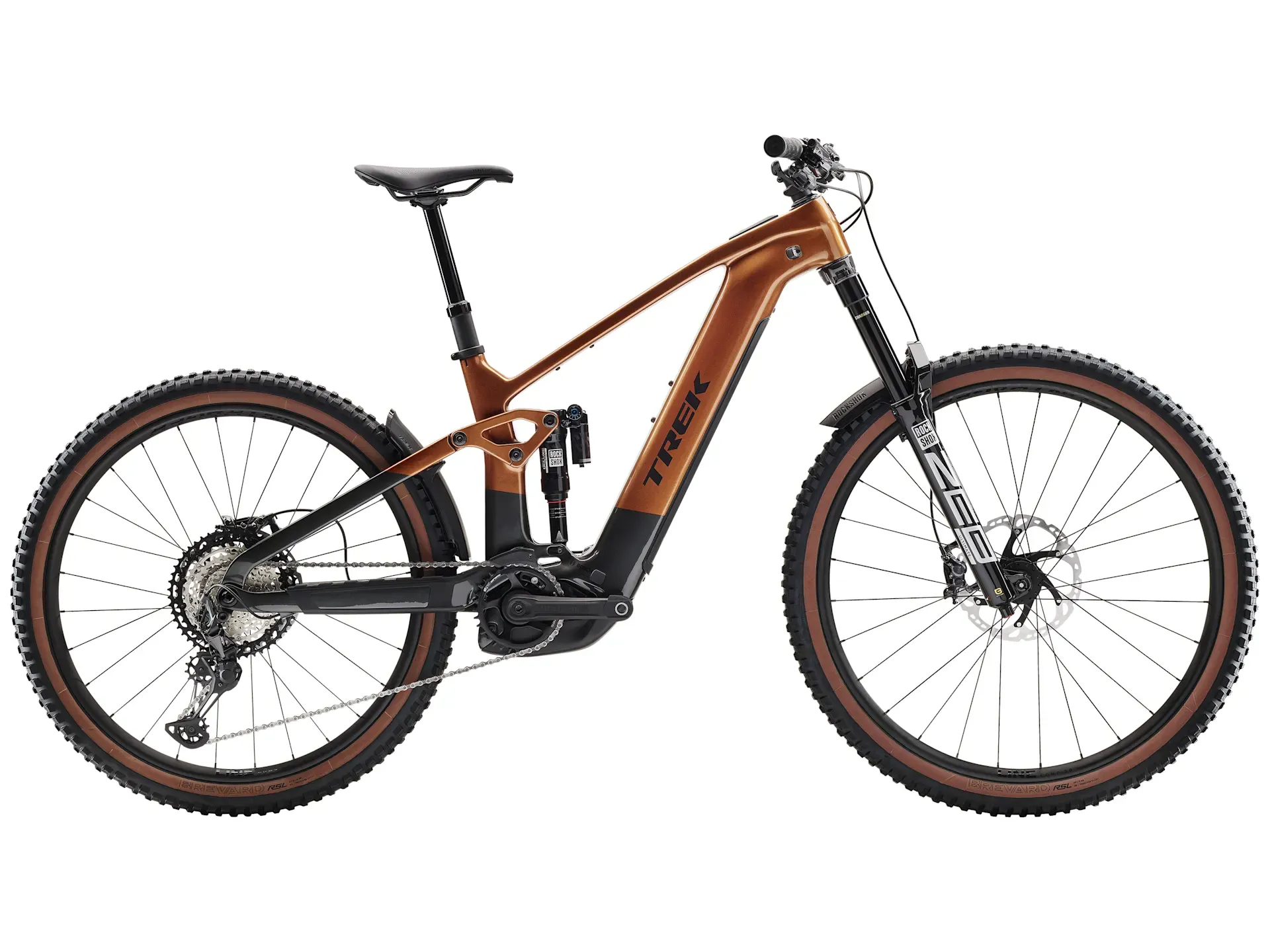

Trek Rail+ 9.8 XT Gen 5 Electric Full Suspension Mountain Bike 2025 in Pennyflake

£7,750.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

Any item, except food, face masks or e-gift vouchers (full e-gift vouchers T&Cs are listed on the respective product pages) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase. It is recommended that you use a recorded delivery service to ensure your items are received by us. We cannot assume responsibility for items that are lost in the post.

Online or in-store purchases can both be returned to any store free of charge or can be returned by post after completing the online returns form. If you are returning an item due to a fault, we will refund your postage.

If you wish to return your bike to us, please keep the box it arrived in and let us know using the returns form and we will arrange collection.


Customer Returns Form

If you wish to cancel, return or exchange an order please fill in the form below. Returns can be processed quicker if all required information is added.



Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the products have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:

1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £24.99 for collection. If you do not have the original box, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid receipt.

Trek Rail+ 9.8 XT Gen 5 Electric Full Suspension Mountain Bike 2025 in Pennyflake

Season:2025

Brand:Trek

Code:48452ORG

The Rail+ 9.8 is a carbon enduro e-MTB made for chasing after distant peaks and hammering out laps. With 160 mm front and rear travel, it's ready to rip through the rough, and it's backed by a powerful Bosch Performance CX drive system that makes long climbs and fast laps a breeze. It packs in adjustable geometry that lets you customise your bike for how and where you ride, a massive battery that keeps you going lap after lap, and a Shimano XT drivetrain that keeps shifts clean and reliable.

It's right for you if...

You chase big rides with even bigger terrain and need an e-bike that can keep up. You want plenty of suspension for gobbling up roots and rocks and a full-assist motor that doesn't wallow on punchy climbs. You care about upgrades where they matter most, like a carbon frame, upgraded suspension package and 12-speed Shimano XT drivetrain.

The tech you get

An OCLV Mountain Carbon frame with Bosch Performance CX system (85 Nm, 250 W) and a massive 800 Wh RIB 2.0 removable integrated battery. A 160 mm RockShox ZEB Select+ fork with DebonAir spring and Charger 3 RC2 damper, and RockShox Super Deluxe Select+ rear shock. Tubeless Ready Bontrager Line Comp 30 wheels, a 12-speed Shimano XT drivetrain, 4-piston Shimano XT hydraulic disc brakes and an internally-routed dropper post.

The final word

The Rail+ 9.8 is ready for epic rides that take you far beyond the beyond. With plenty of travel for rowdy terrain, a powerful motor for crushing big climbs, and a massive battery that keeps you going mile after mile, this beast of a bike is built for it all.

Key Features & Benefits:

  • Carbon Fibre Frame:Lightweight & efficient for trail riding
  • 12-Speed Shimano XT Drivetrain:Perfect for all terrain.
  • RockShox Suspension Package:Offers a silky smooth ride

Full Specification:

  • Frame:OCLV Mountain Carbon
  • Rear Shock:RockShox Super Deluxe Ultimate RC2T, 205x65 mm
  • Fork:RockShox ZEB Ultimate, DebonAir spring, Charger 3.1 RC2 damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 160 mm travel
  • Motor:Bosch Performance Line CX, 20 mph (25 km/h in Europe)
  • Controller:Bosch System Controller BRC3100, smart system
  • Battery:800 Wh RIB 2.0 removable integrated battery.
  • Charger:Bosch standard 4A, 230V, smart system
  • Number of Gears:12
  • Gear Shifters:Shimano XT M8100, 12-speed
  • Chainset:E*thirteen E*spec Plus, 160 mm length
  • Chainrings:36T
  • Rear Cassette:Shimano XT M8100, 10-51, 12-speed
  • Chain:Shimano XT M8100, 12-speed
  • Front Derailleur:N/A
  • Rear Derailleur:Shimano XT M8100, long cage
  • Bottom Bracket:Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
  • Pedals:VP-536 nylon platform
  • Rims:Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready
  • Front Hub:Size: S - Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5", Size: M, L, XL - Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
  • Rear Hub:Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 27.5"
  • Front Tyre:Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 29x2.50"
  • Rear Tyre:Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 29x2.50"
  • Brakes:Shimano XT M8120 4-piston hydraulic disc
  • Handlebars:Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
  • Handlebar Grips:Bontrager XR Trail Elite, nylon lock-on
  • Headset:Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
  • Stem:Bontrager Line Pro, 35 mm, Blendr-compatible, 0-degree, 45 mm length
  • Saddle:Verse Short Comp, steel rails, 145 mm width
  • Seatpost:Size: S - Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length, Size: M, L, XL - Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length
  • Accessories:Charger included
  • Weight:This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Sizing Chart for Trek Rail Gen 5

Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
S155 - 165 cm5'1" - 5'5"74 - 78 cm29" - 31"
M165 - 176 cm5'5" - 5'9"79 - 83 cm31" - 33"
L177 - 188 cm5'10" - 6'2"84 - 89 cm33" - 35"
XL188 - 195 cm6'2" - 6'5"89 - 91 cm35" - 36"

Geometry Information for Trek Rail Gen 5

Frame size number15.5"15.5"17.5"17.5"19.5"19.5"21.5"21.5"
Frame size letterSSMMLLXLXL
Geometry positionHighLowHighLowHighLowHighLow
Wheel size27.5"27.5"29"/27.5"29"/27.5"29"/27.5"29"/27.5"29"/27.5"29"/27.5"
A —Seat tube3838414143.543.54747
B —Seat tube angle75.3°74.8°75.3°74.8°75.2°74.8°75.2°74.8°
Effective seat tube angle77.9°77.4°77.7°77.2°77.5°77.0°77.4°76.9°
C —Head tube length10101010121214.514.5
D —Head angle65.0°64.5°65.0°64.5°65.0°64.5°64.9°64.5°
E —Effective top tube56.256.359.159.263.963.96767
F —Bottom bracket height34.433.834.533.834.533.834.533.8
G —Bottom bracket drop1.21.81.82.41.82.41.72.4
H —Chainstay length44.644.844.644.844.644.844.644.8
I —Offset4.34.34.34.34.34.34.34.3
J —Trail11.912.212.713.112.713.112.713.1
K —Wheelbase120.1127.8122.9123127.7127.8131.3131.4
L —Standover76.375.877.576.977.576.979.877.9
M —Frame reach43.54345.54549.5495251.5
N —Frame stack59.859.463.162.764.964.567.266.7




Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com
