The Rail 8 is our top-of-the-line alloy electric mountain bike with long-travel suspension. Gen 3
The Rail 8 is our top-of-the-line alloy electric mountain bike with long-travel suspension. Gen 3
Trek

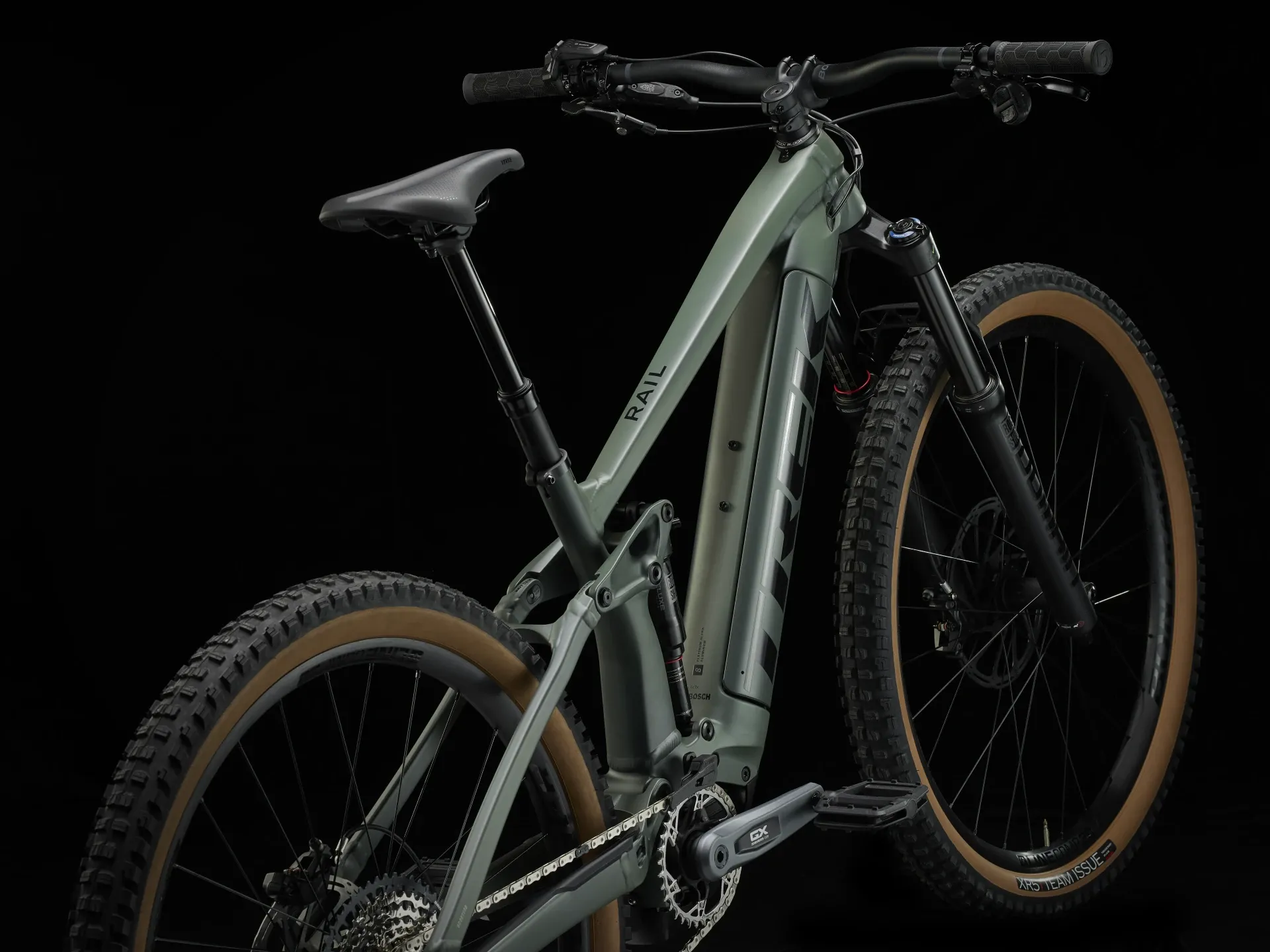

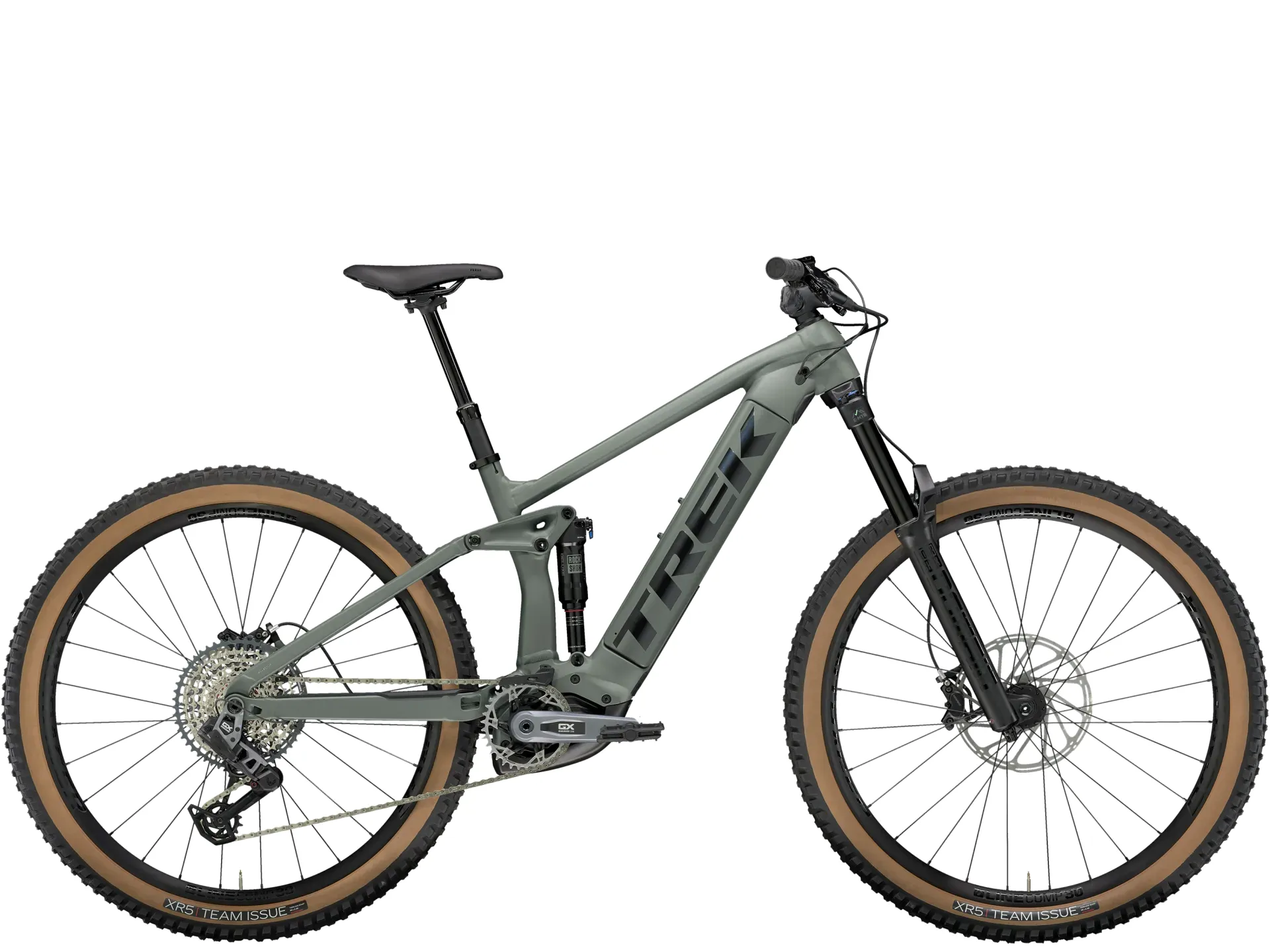

Trek Rail 8 GX AXS Electric Full Suspension Mountain Bike 2024 in Keswick Green

£4,195.00 £7,000.00 40% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

Any item, except food, face masks or e-gift vouchers (full e-gift vouchers T&Cs are listed on the respective product pages) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase. It is recommended that you use a recorded delivery service to ensure your items are received by us. We cannot assume responsibility for items that are lost in the post.

Online or in-store purchases can both be returned to any store free of charge or can be returned by post after completing the online returns form. If you are returning an item due to a fault, we will refund your postage.

If you wish to return your bike to us, please keep the box it arrived in and let us know using the returns form and we will arrange collection.


Customer Returns Form

If you wish to cancel, return or exchange an order please fill in the form below. Returns can be processed quicker if all required information is added.



Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the products have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:

1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £24.99 for collection. If you do not have the original box, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid receipt.

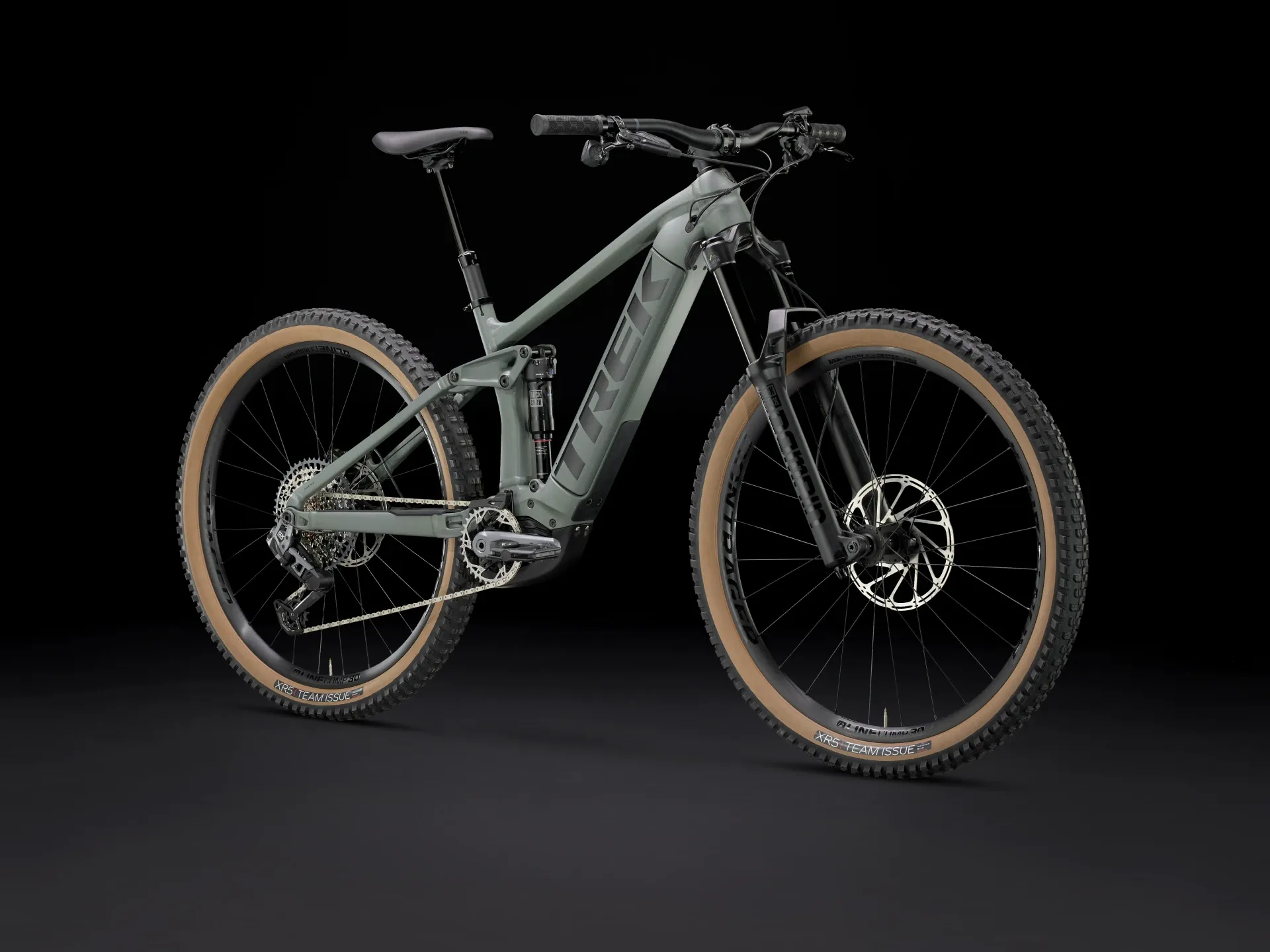

Trek Rail 8 GX AXS Electric Full Suspension Mountain Bike 2024 in Keswick Green

Season:2024

Brand:Trek

Code:41527GRN

The Rail 8 is Trek's top-of-the-line alloy electric mountain bike with long-travel suspension. It features a suspension set-up and parts worthy of the gnarliest enduro runs, and the powerful Bosch drive system will get you back up the mountain faster than you ever thought possible. It comes decked out with a wireless SRAM AXS drivetrain for reliable shifting that stays crisp under load.

You're after a do-anything long-travel e-MTB that can handle it all. You want serious power for steep punches or long fire roads, and the benefit of upgraded suspension on the downs. Plus, SRAM's latest wireless transmission for clean shifts and durability that you can count on.

A burly alloy frame with a 625 Wh Removable Integrated Battery, 160 mm RockShox Domane RC fork with beefy 38 mm stanchions, DebonAir spring and Motion Control damper, a 150 mm RockShox Deluxe Select+ shock, Bosch's smart system Performance Line CX, a Bluetooth® LED remote for connectivity and activity tracking through the eBike Flow app. A wireless SRAM GX Eagle AXS transmission, and tubeless-ready Bontrager Line Comp 30 29er wheels.

This Rail features upgrades in all the right places – suspension, drivetrain, dropper and more. If you’re looking for an alloy electric mountain bike that’s spec’d to take on anything, the Rail 8 is the ride for you.

Please note: Size Small frames come with a curved top tube for improved standover height.

Key Features & Benefits:

  • 160mm front and 150mm Rear Suspension:Eats up the rough stuff
  • New Bosch Performance Line CX Motor:Lighter and more powerful.
  • 625Wh Removable Battery:Will keep you riding for longer.

Full Specification:

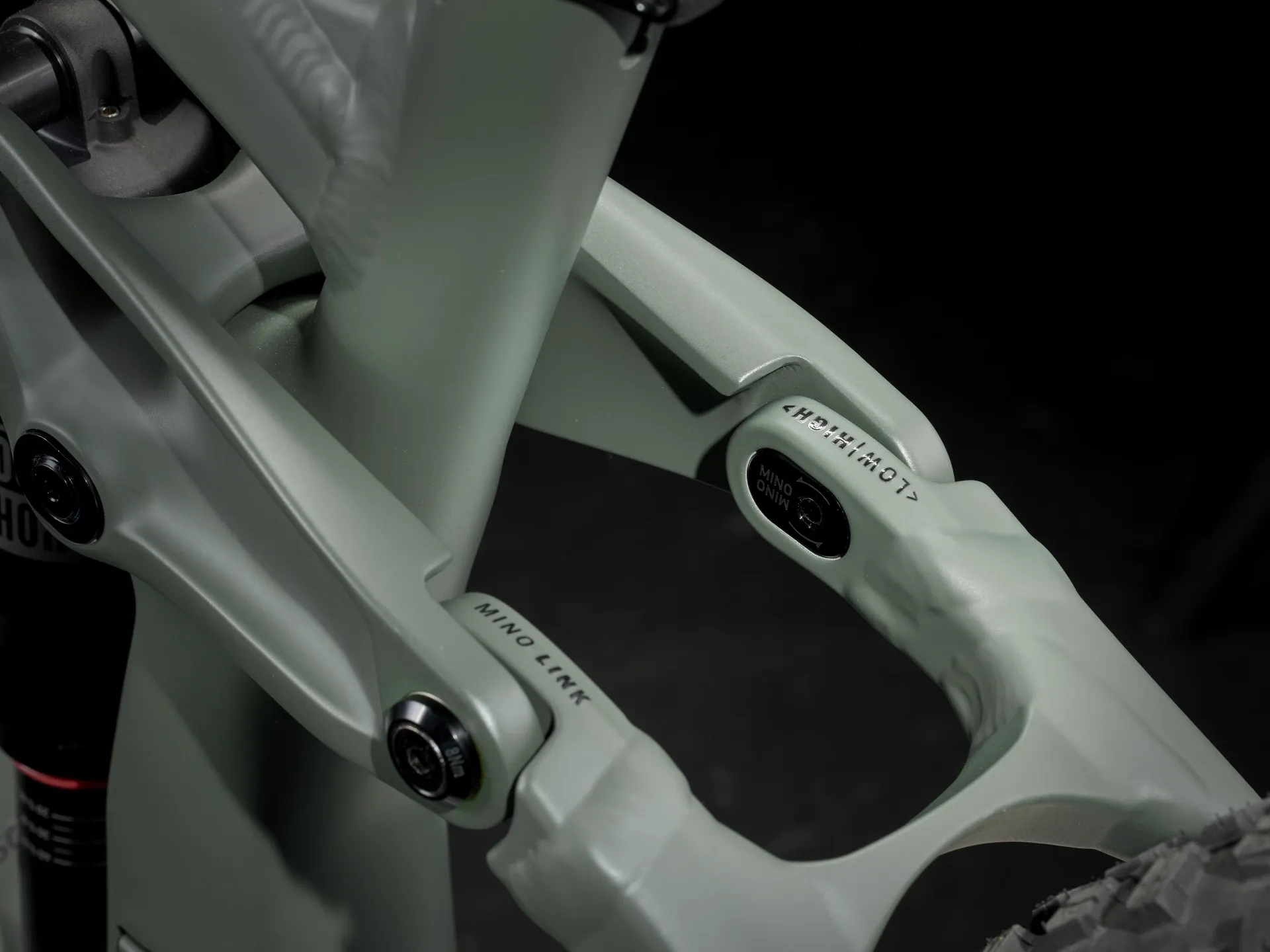

  • Frame:Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel

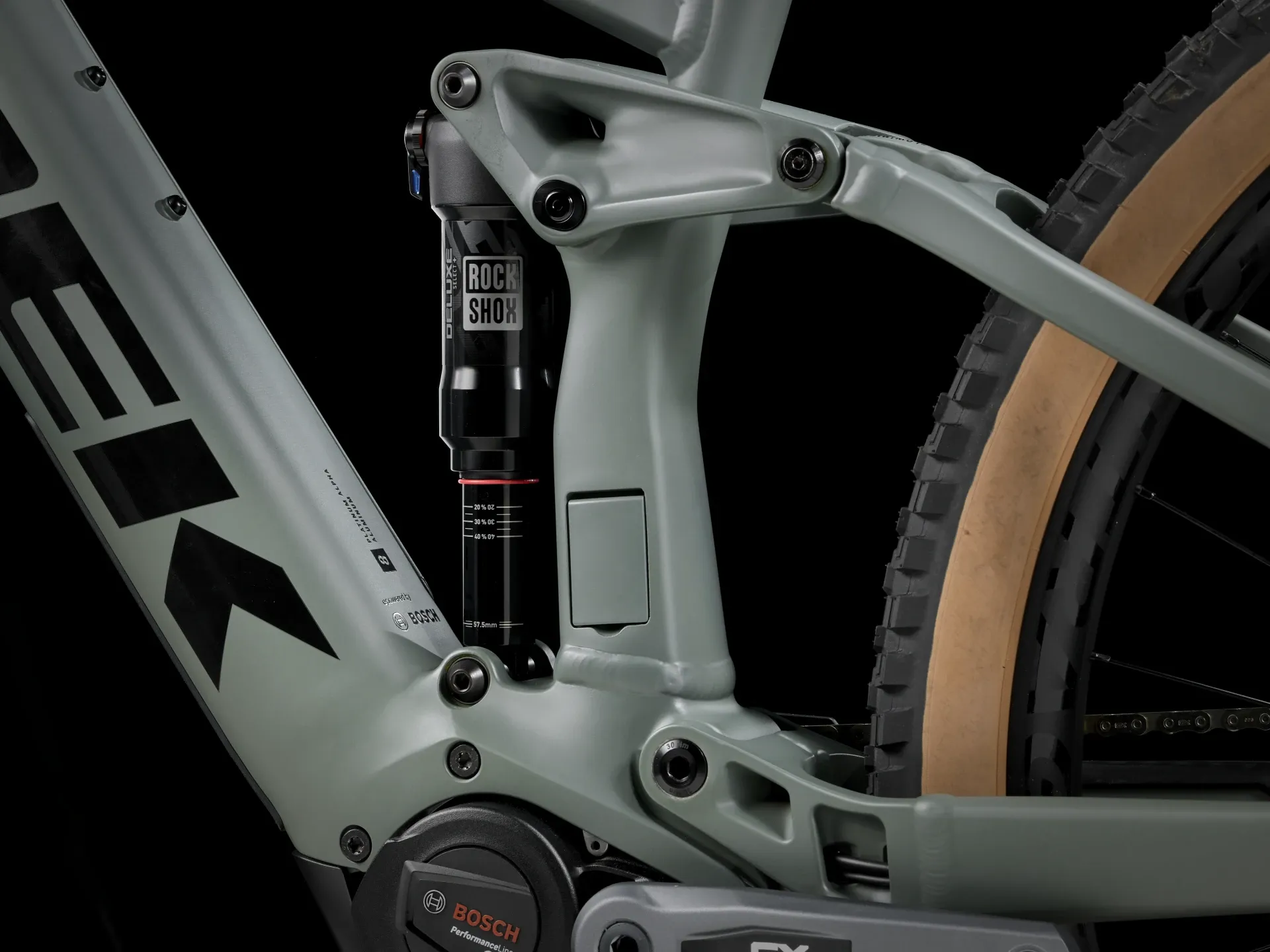

  • Rear Suspension:RockShox Deluxe Select+ RT, 230mm x 57.5mm
  • Fork:RockShox Domain RC, DebonAir, Motion Control damper, lockout, tapered steerer, 44mm offset, oversized crown for eMTB, Boost110, 15mm Maxle Stealth, 160mm travel

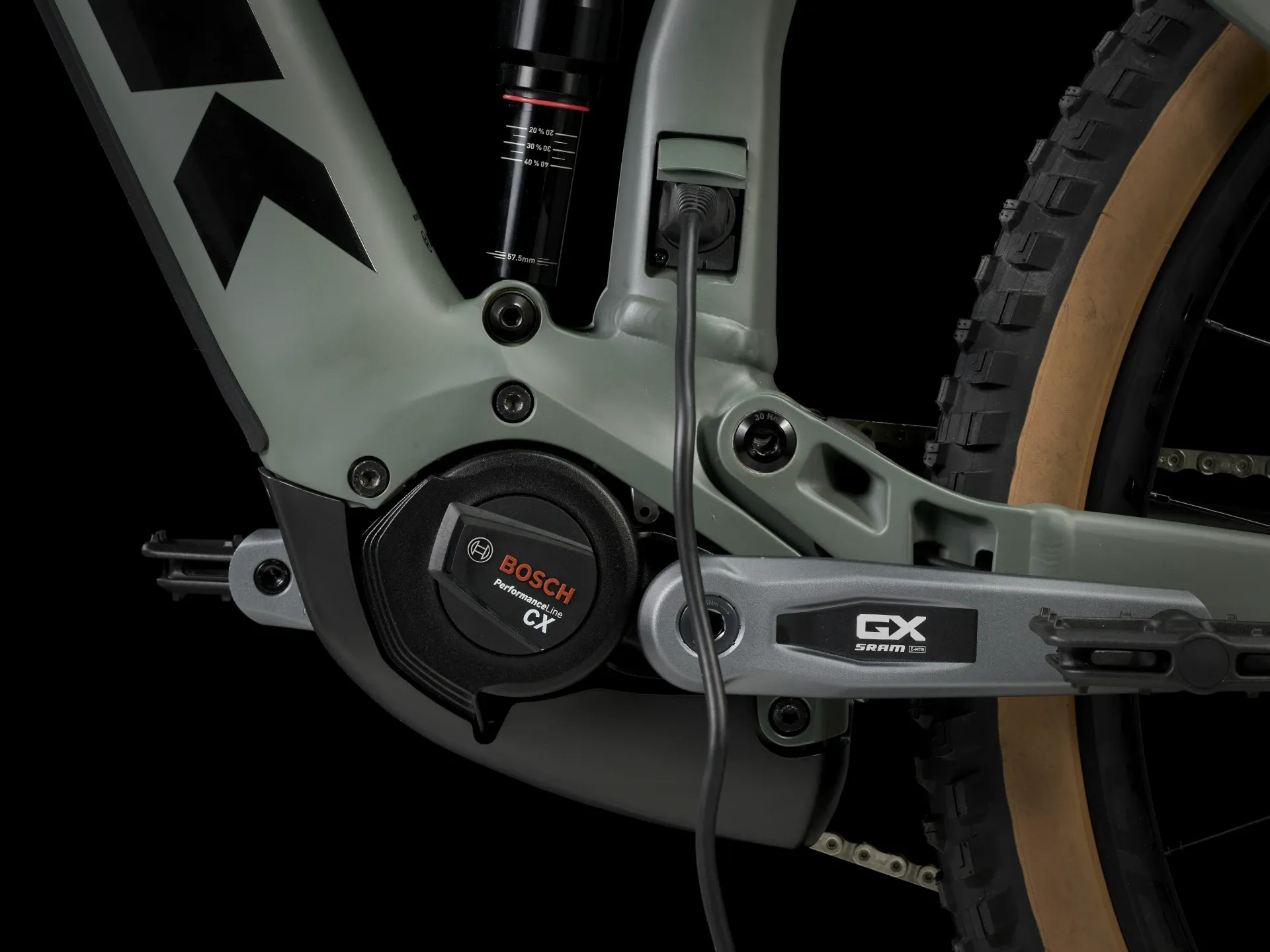

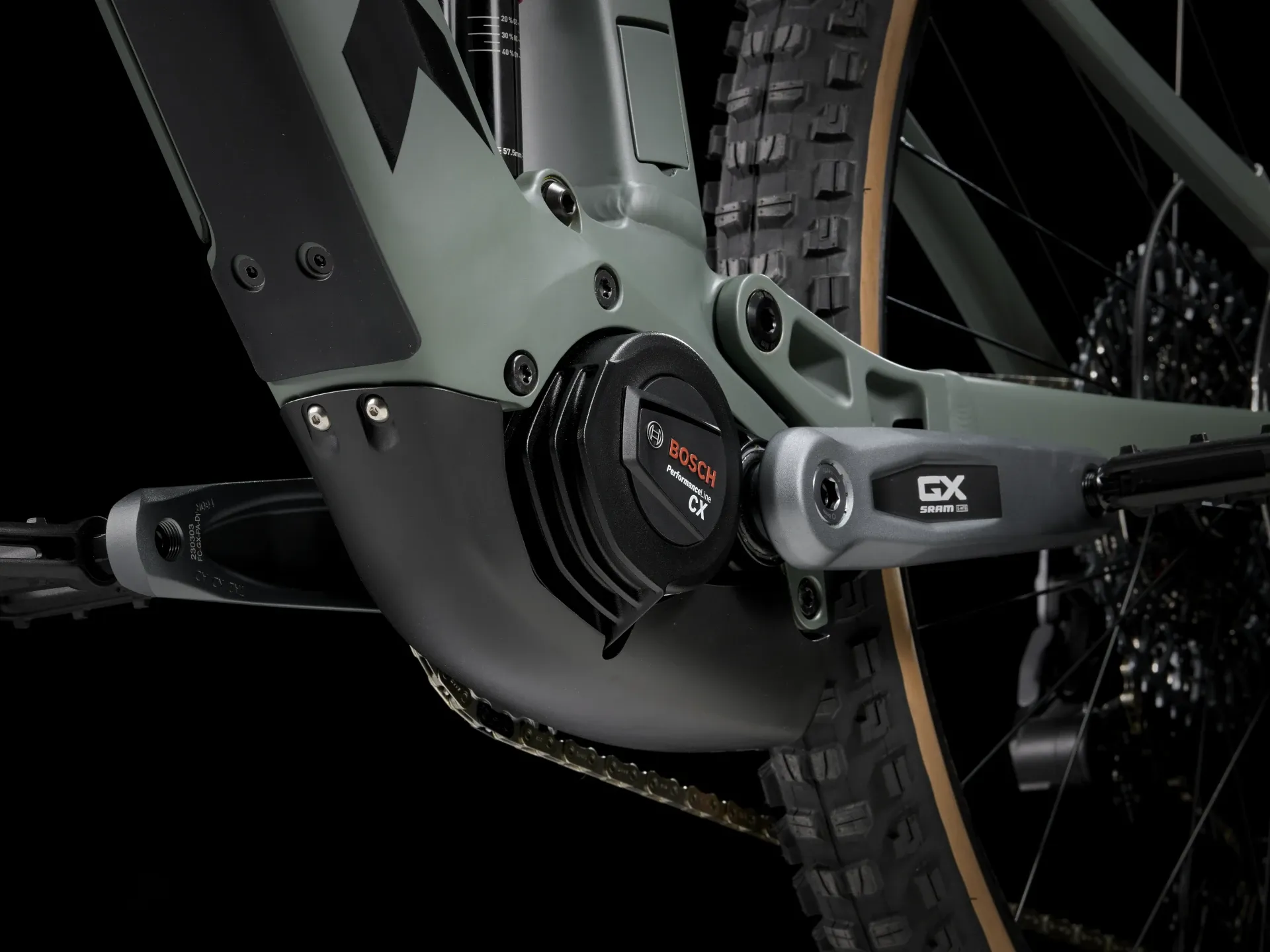

  • Motor:NEW Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm

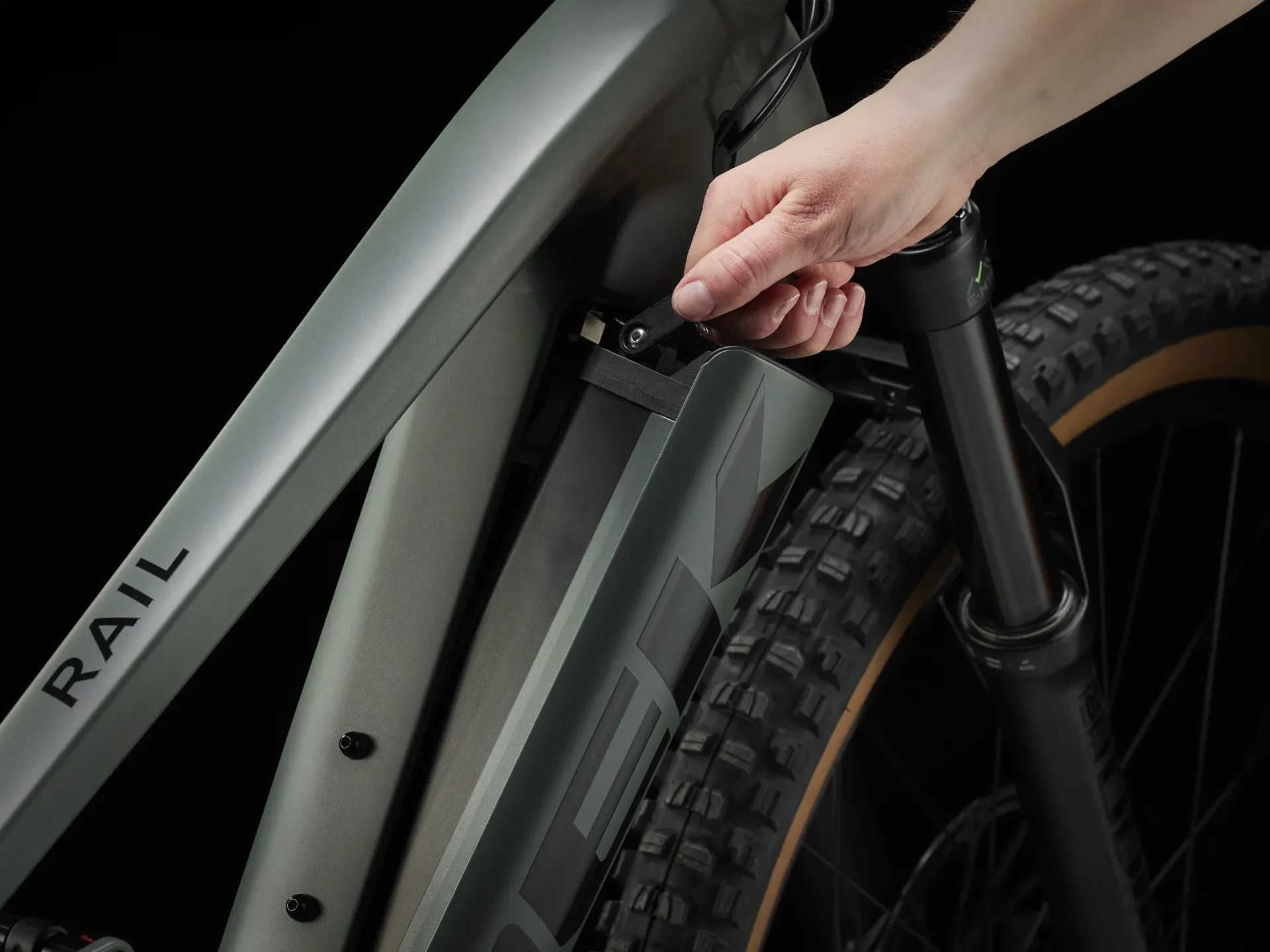

  • Battery:Bosch PowerTube 625Wh, smart system

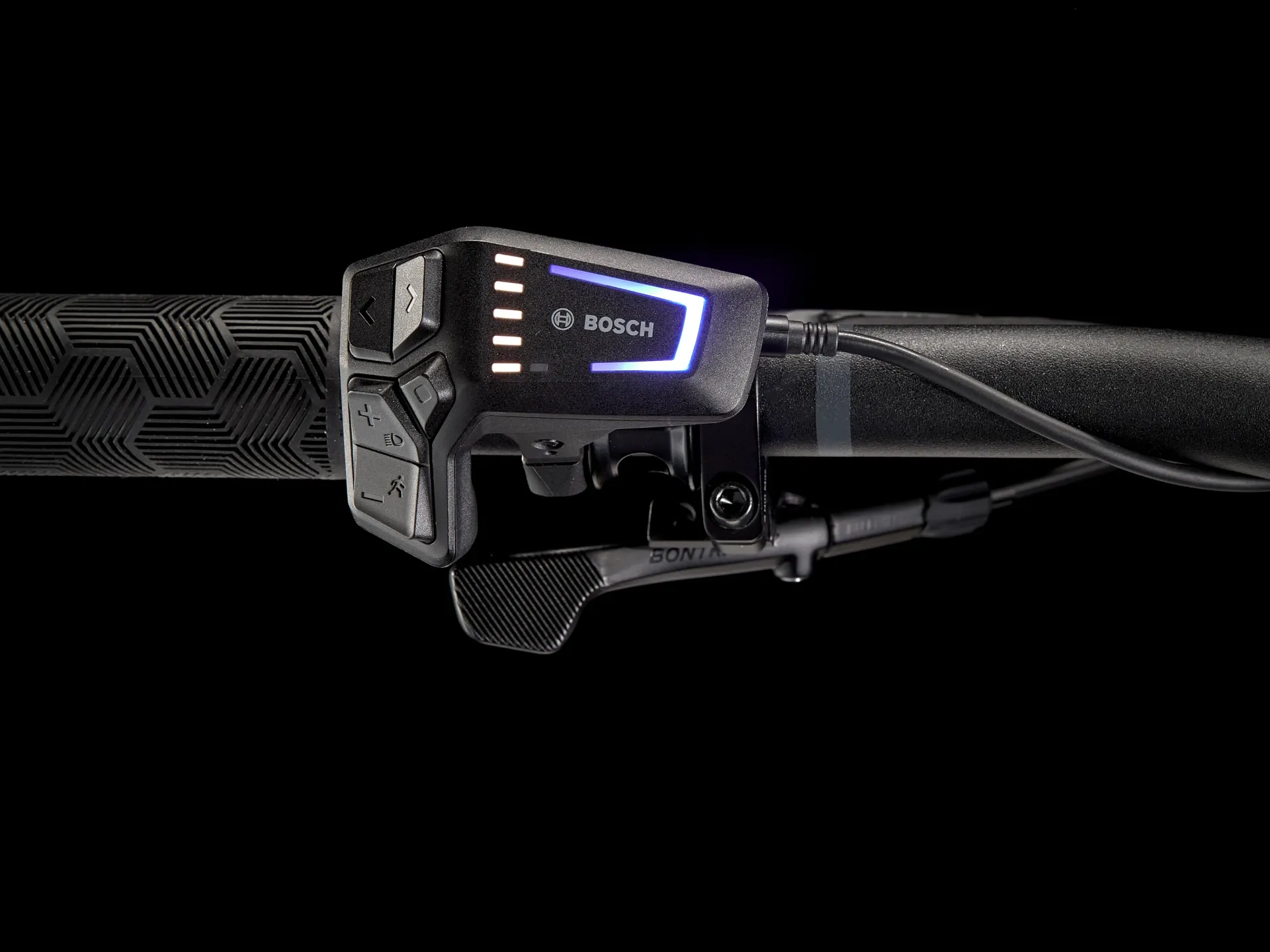

  • Controller:Bosch System Controller BRC3100, smart system
  • Charger:Bosch standard 4A, 230V, smart system
  • Number of Gears:12
  • Gear Shifters:SRAM AXS POD
  • Chainset:SRAM GX, 160 mm length
  • Chainrings:SRAM XX T-Type, 34T, steel
  • Rear Cassette:SRAM Eagle XS-1275, T-Type,10-52, 12-speed
  • Chain:SRAM GX Eagle, T-Type, 12-speed
  • Front Derailleur:N/A

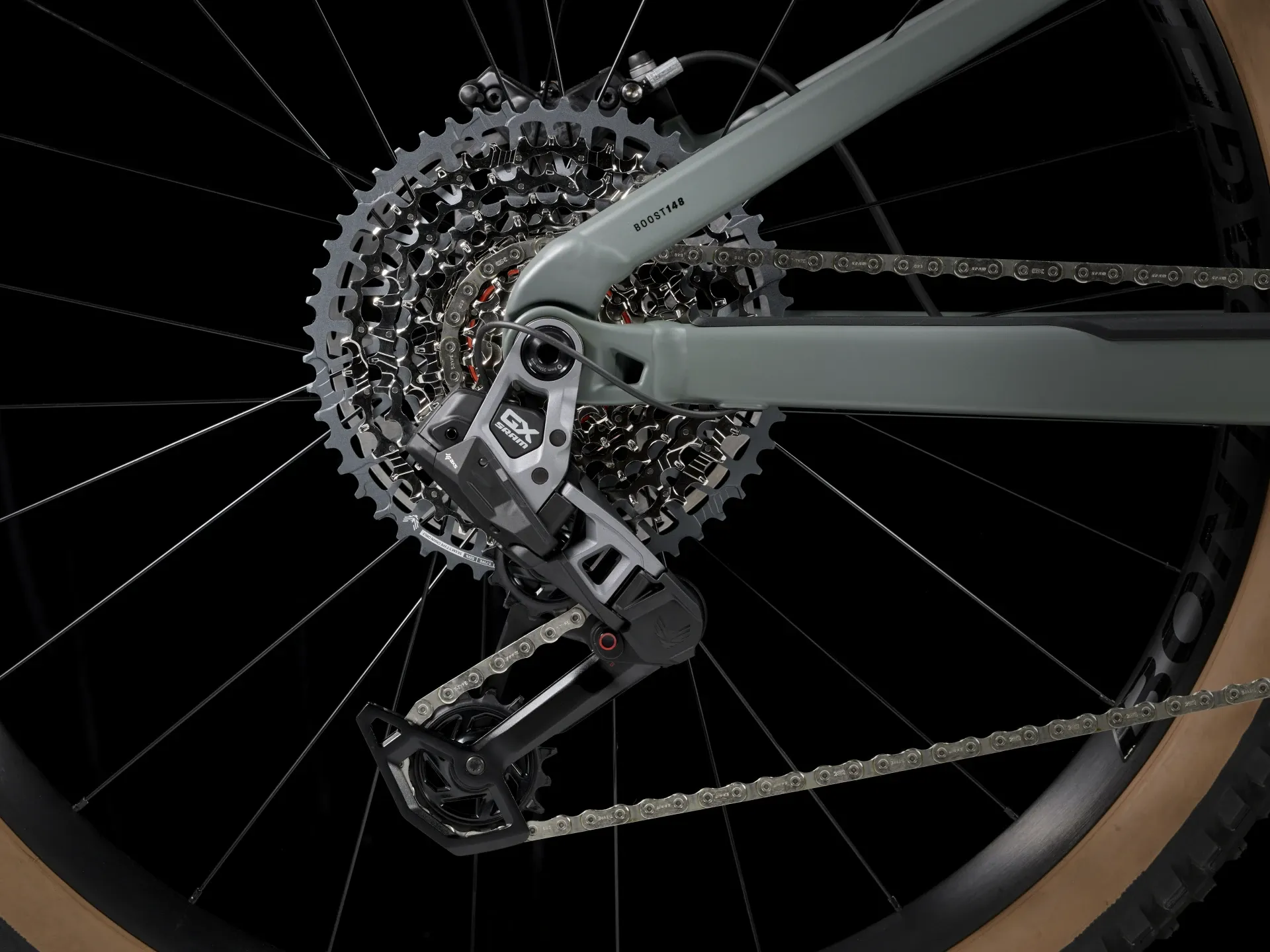

  • Rear Derailleur:SRAM GX Eagle AXS, T-Type
  • Bottom Bracket:N/A
  • Pedals:VP-536 nylon platform
  • Front Wheel:Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
  • Rear Wheel:Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 29"

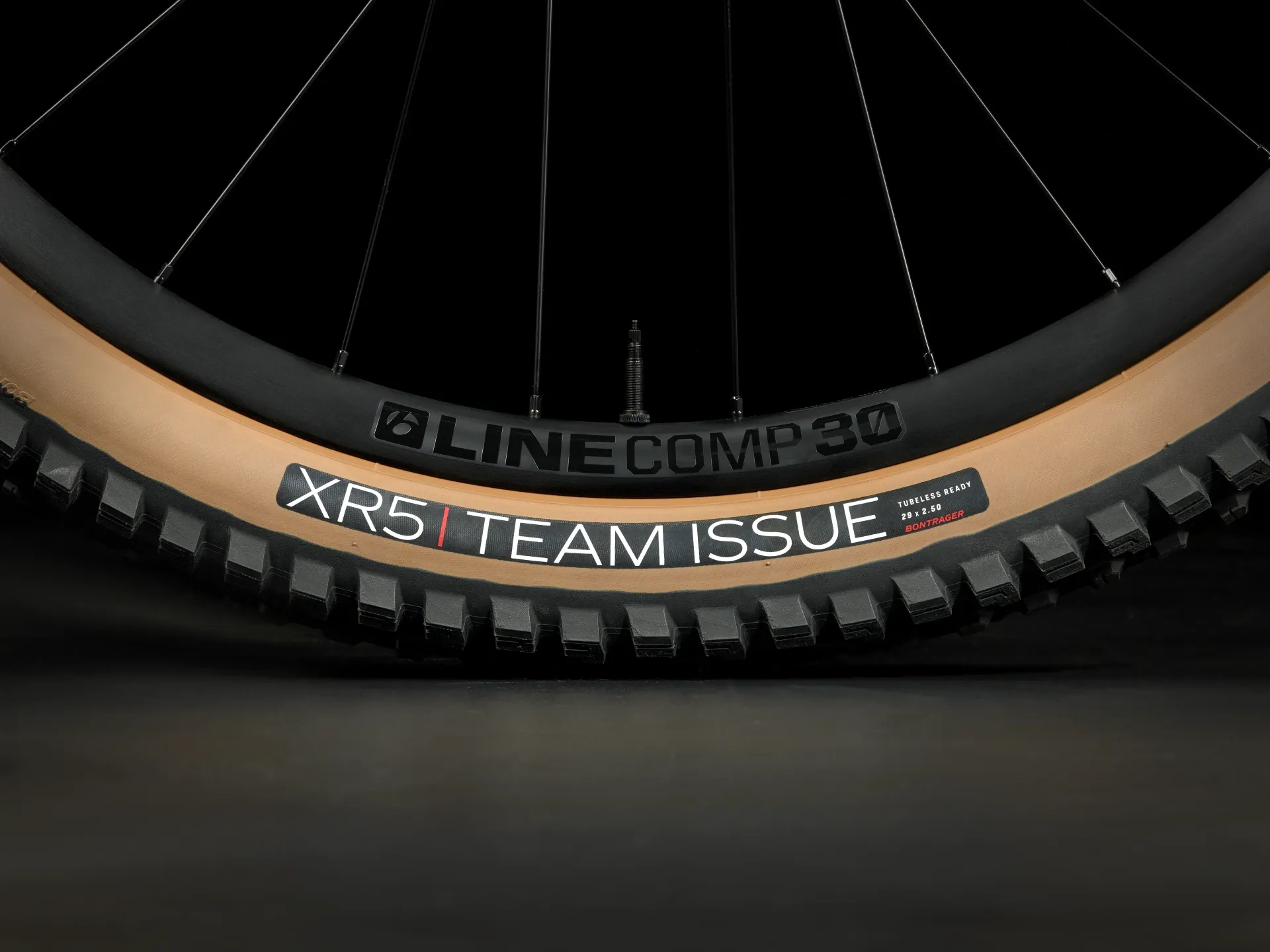

  • Front Tyre:Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50"
  • Rear Tyre:Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50"
  • Brakes:SRAM DB 8 4-piston hydraulic disc
  • Handlebars:Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
  • Handlebar Grips/Tape:Bontrager XR Trail Elite, nylon lock-on
  • Headset:Knock Block Integrated, cartridge bearing, 1-1/8" top, 1.5"

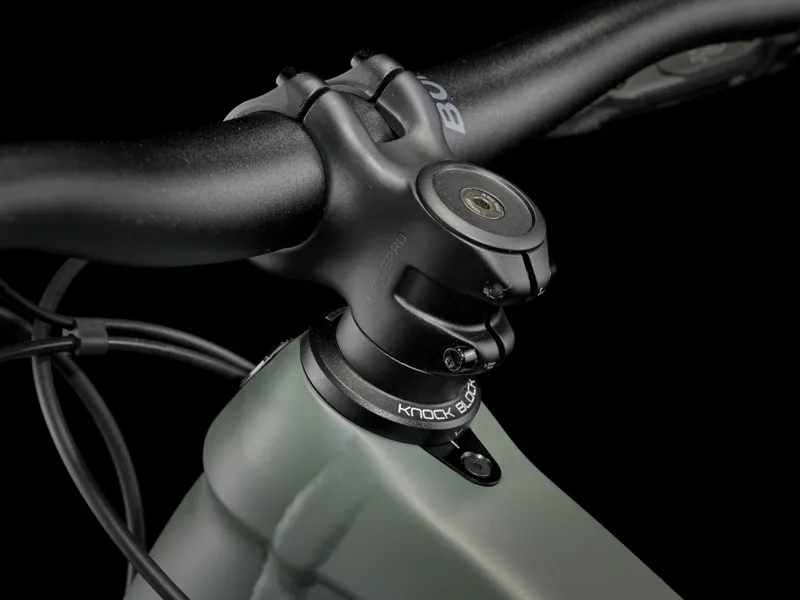

  • Stem:Bontrager Elite, 35 mm, 0-degree, 45 mm length
  • Saddle:Bontrager Arvada, hollow chromoly rails, 138 mm width
  • Seatpost:Bontrager Line Dropper, 100 - 150 mm travel, internal routing, 31.6 mm, 345 - 440mm length
  • Accessories:N/A
  • Weight:M- 23.70 kg / 52.25 lbs (with TLR sealant, no tubes)
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Sizing Chart for Trek Rail Gen 3

Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
S155 - 165 cm5'1" - 5'5"74 - 78 cm29" - 31"
M165 - 176 cm5'5" - 5'9"79 - 83 cm31" - 33"
L177 - 188 cm5'10" - 6'2"84 - 89 cm33" - 35"
XL188 - 195 cm6'2" - 6'5"89 - 91 cm35" - 36"

Geometry Information for Trek Rail Gen 3

Frame size number15.5"15.5"17.5"17.5"19.5"19.5"21.5"21.5"
Frame size letterSSMMLLXLXL
Geometry positionHighLowHighLowHighLowHighLow
Wheel size29"29"29"29"29"29"29"29"
A — Seat tube4141424245455050
B — Seat tube angle68.0°67.6°68.0°67.6°68.0°67.6°68.0°67.6°
Effective seat tube angle75.4°75.0°75.4°75.0°75.4°75.0°75.4°75.0°
C — Head tube length10.510.510.510.511111212
D — Head angle64.9°64.5°64.9°64.5°64.9°64.5°64.9°64.5°
E — Effective top tube58.758.861.161.363.363.466.566.6
F — Bottom bracket height34.433.934.433.934.433.934.433.9
G — Bottom bracket drop2.93.52.93.52.93.52.93.5
H — Chainstay length44.744.844.744.844.744.844.744.8
I — Offset4.34.34.34.34.34.34.34.3
J — Trail12.713.112.713.112.713.112.713.1
K — Wheelbase119.5119.6122122.1124.3124.3127.7127.8
L — Standover74.874.377.877.376.776.27877.5
M — Frame reach42.5424544.54746.549.949.5
N — Frame stack62.362.662.262.662.76363.663.9




Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com
