The Fuel EXe 9.9 XX AXS is mountain biking elevated.
The Fuel EXe 9.9 XX AXS is mountain biking elevated.
Trek

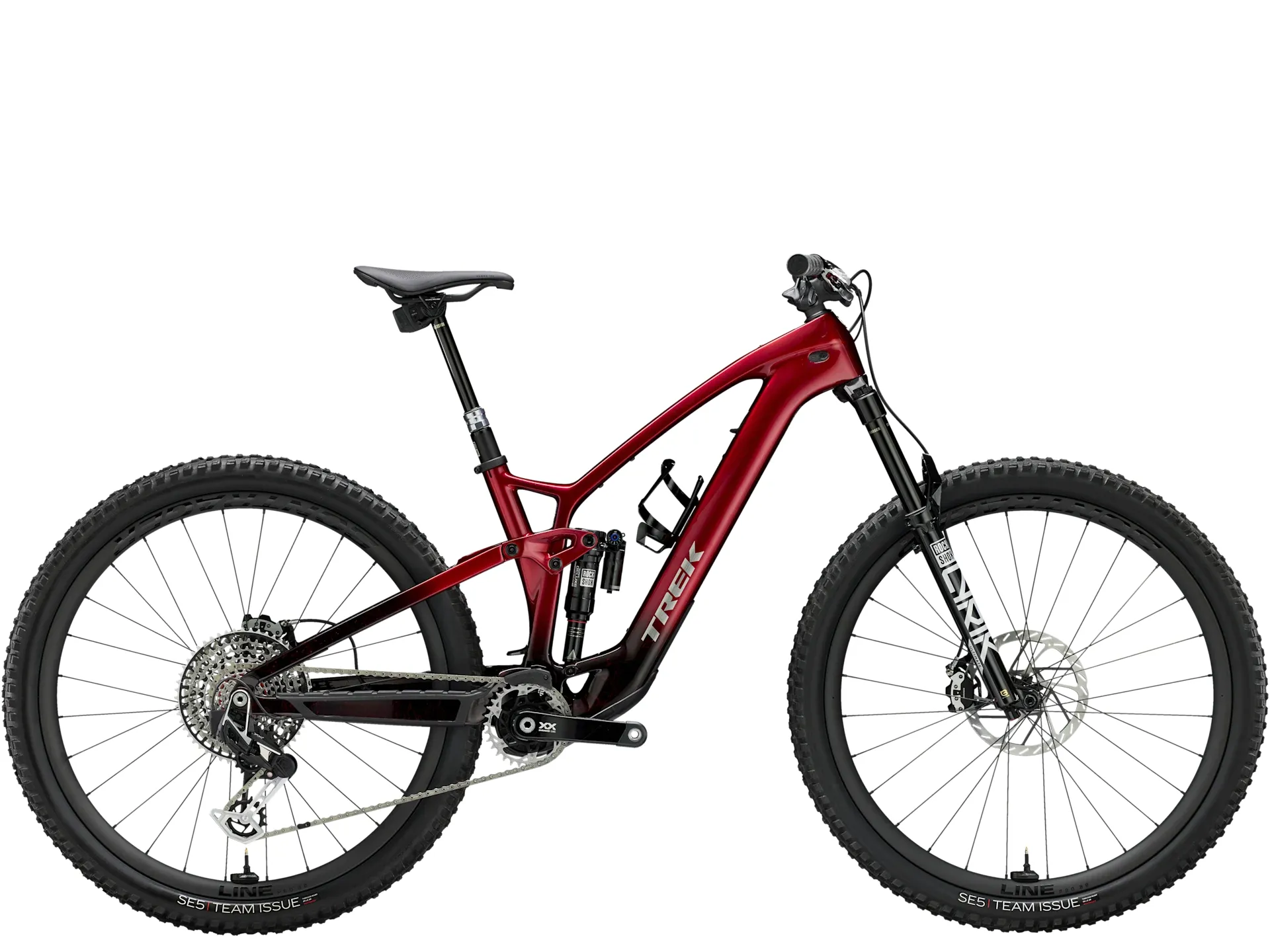

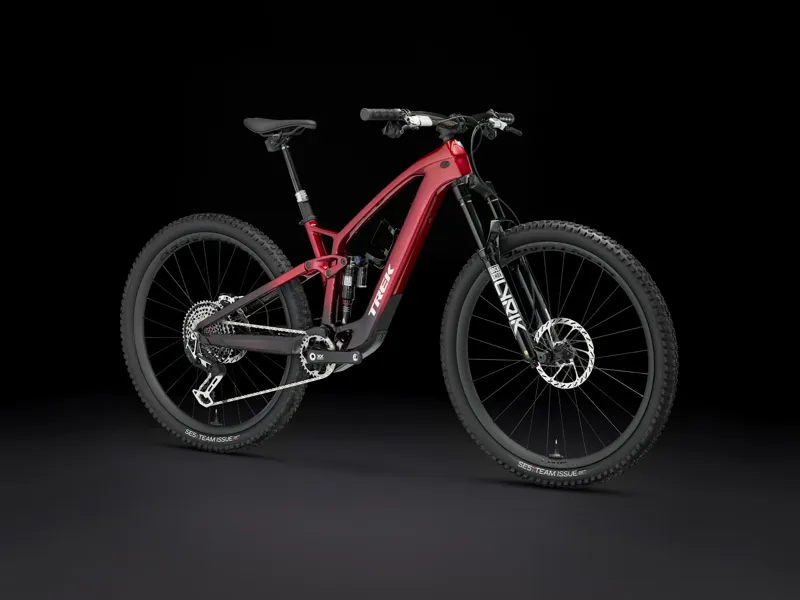

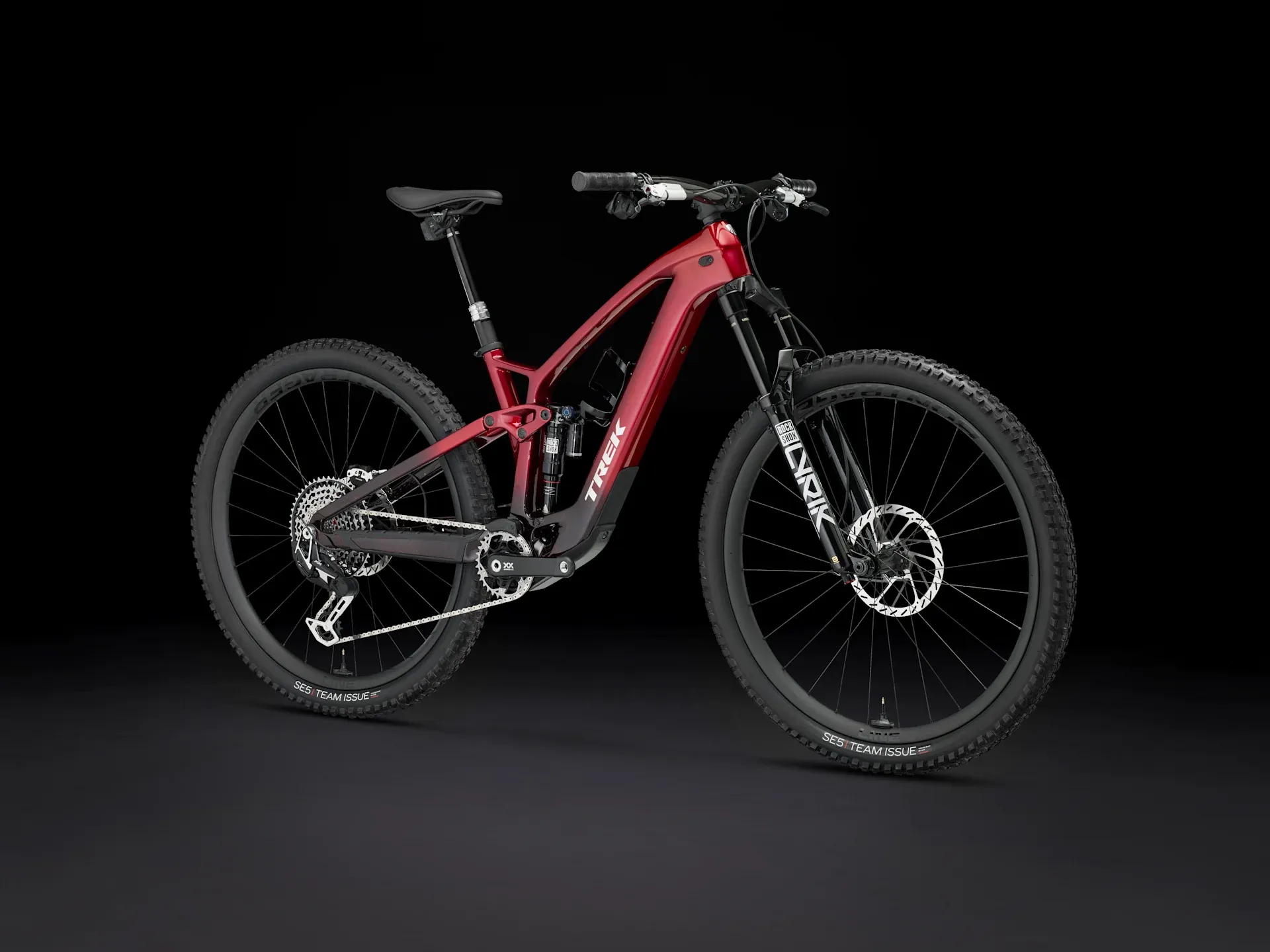

Trek Fuel EXe 9.9 XX AXS T-Type Electric Full Suspension Mountain Bike 2025 in Red Smoke

£11,000.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

Any item, except food, face masks or e-gift vouchers (full e-gift vouchers T&Cs are listed on the respective product pages) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase. It is recommended that you use a recorded delivery service to ensure your items are received by us. We cannot assume responsibility for items that are lost in the post.

Online or in-store purchases can both be returned to any store free of charge or can be returned by post after completing the online returns form. If you are returning an item due to a fault, we will refund your postage.

If you wish to return your bike to us, please keep the box it arrived in and let us know using the returns form and we will arrange collection.


Customer Returns Form

If you wish to cancel, return or exchange an order please fill in the form below. Returns can be processed quicker if all required information is added.



Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the products have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:

1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £24.99 for collection. If you do not have the original box, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid receipt.

Trek Fuel EXe 9.9 XX AXS T-Type Electric Full Suspension Mountain Bike 2025 in Red Smoke

Season:2025

Brand:Trek

Code:47287RED

The Fuel EXe 9.9 XX AXS is mountain biking elevated. It rolls into untouched terrain that lies between traditional mountain bikes and electric bikes with new technology that silently blends in with nature and the finest components the industry offers. From its light and stiff carbon frame and wheels to a tiny but mighty TQ transmission, the EXe 9.9 is eager to rally any trail. It spares no expense, with a SRAM XX AXS transmission that's as light as it is precise, and it's loaded with an ultimate RockShox suspension package equipped with AirWiz technology to keep your set-up dialled just to your liking.

It's right for you if...

You have expensive taste and don't want to sacrifice performance for anything. You want a bike that not only rallies the mountain top to bottom, but looks damn good doing it. From the carbon frame and wheels to fully a wireless SRAM XX transmission, you'll get a bike built with meticulous care and attention to detail, while the space-age TQ motor quietly assists you back to the top so you can take on lap after lap of singletrack.

The tech you get

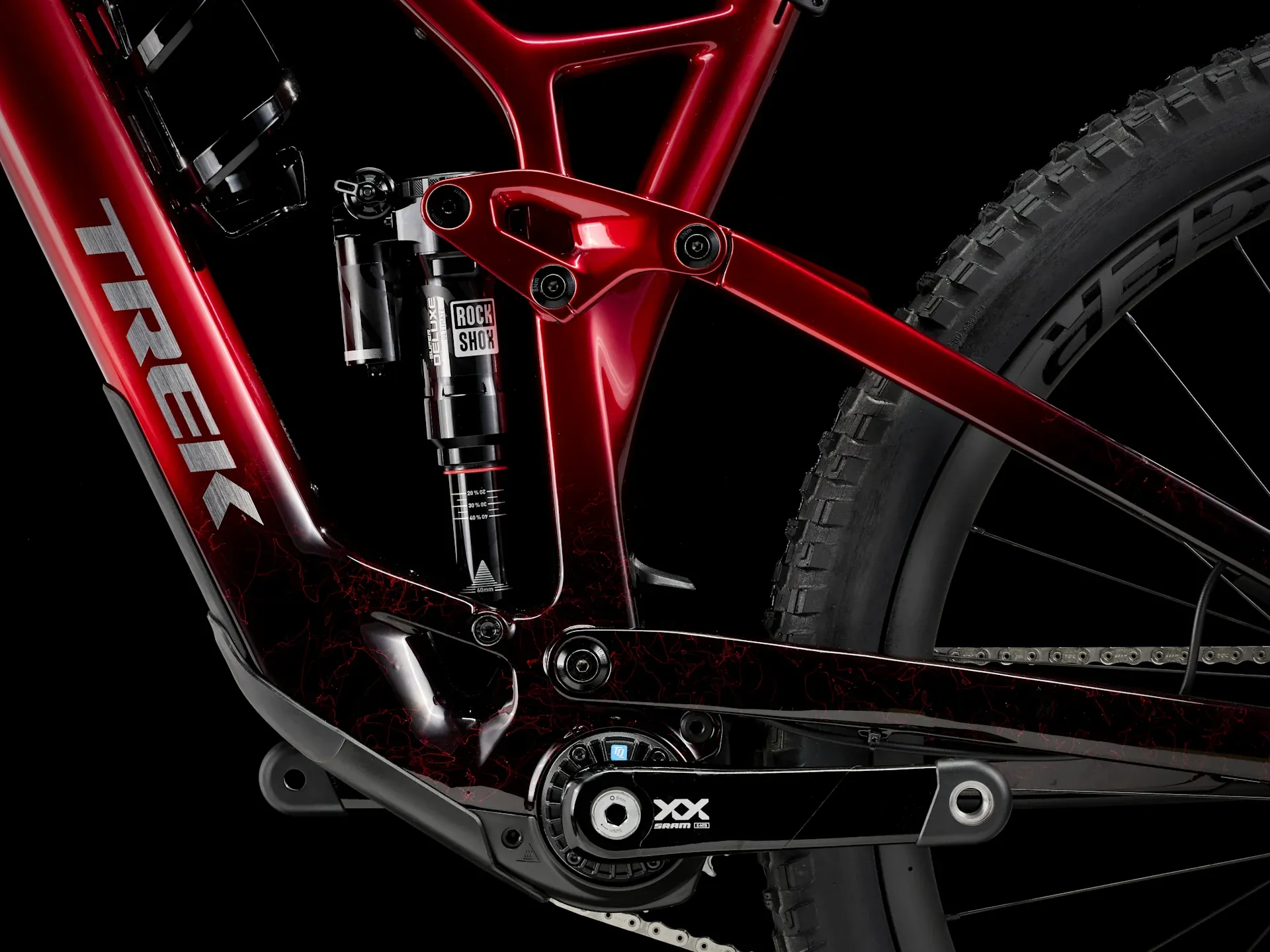

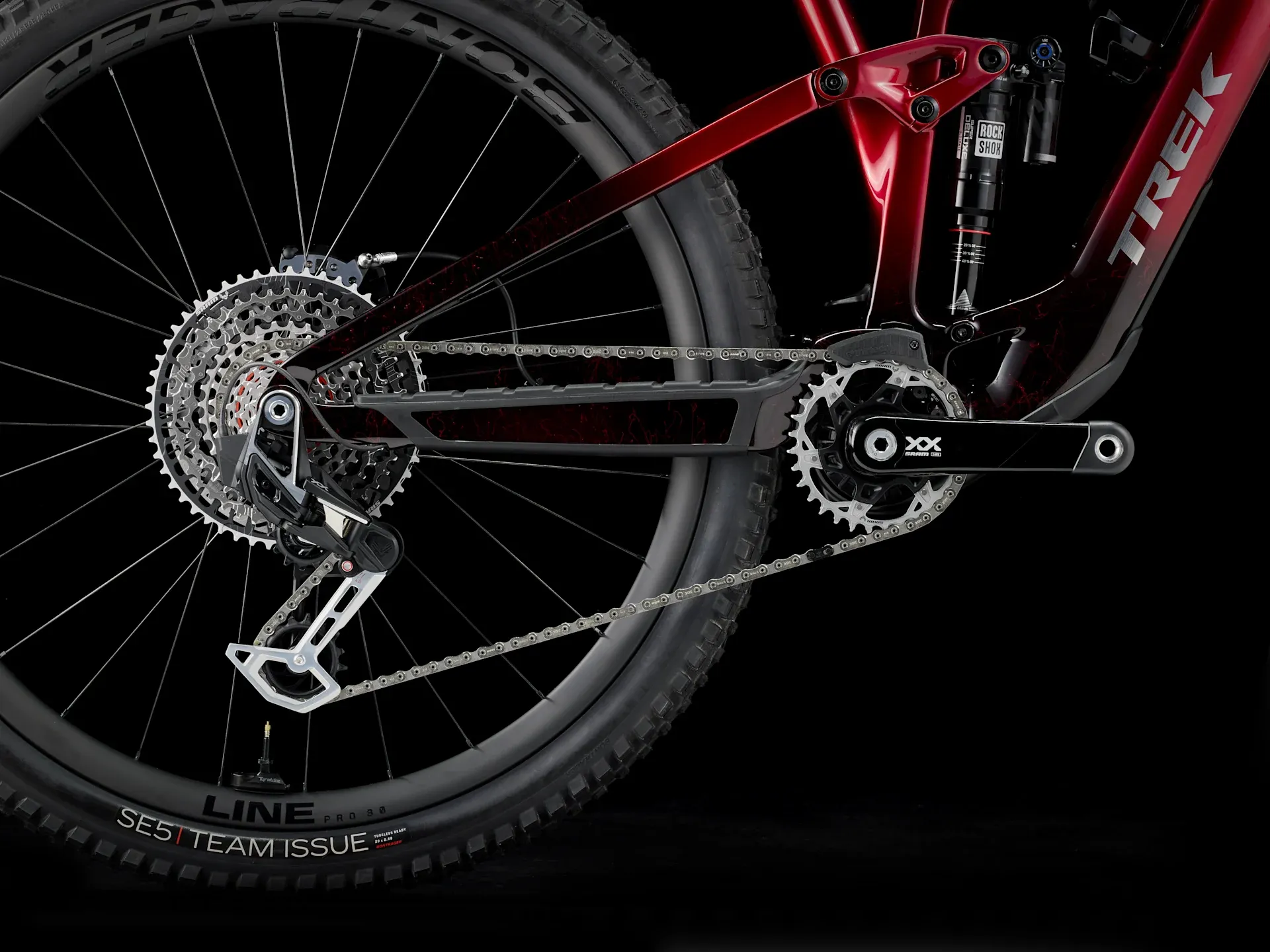

An OCLV Mountain Carbon frame with a fully encased 360 Wh battery, and space-age TQ harmonic pin ring transmission with a smart charging port, integrated LED display and discreet handlebar remote. 150 mm of RockShox Lyrik Ultimate fork with AirWiz, DebonAir spring, Charger 3 RC2 damper and 140 mm of RockShox Super Deluxe Ultimate rear suspension. Plus, light and stiff carbon wheels set up tubeless and SRAM's XX AXS wireless electronic direct-mount transmission that's built light, tough and shifts clean, even under load.

The final word

The Fuel EXe 9.9 takes mountain biking to the next level with industry-changing technology from the quiet-and-compact TQ transmission to the meticulously laid carbon frame. It's the best of both worlds – it rallies the trail like a traditional bike on descents but rips back to the top with natural assist on climbs. And what's more, it's fully equipped with a treasure trove of components, like the upgraded RockShox suspension package with AirWiz and a fully wireless SRAM XX AXS transmission.


Key Features & Benefits:

  • Carbon Fibre Frame:Lightweight & efficient for trail riding
  • 12-Speed SRAM XX AXS:Perfect for all terrain, with AXS Wireless Smoothness
  • RockShox Suspension Package:Offers a silky smooth ride

Full Specification:

  • Frame:OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel
  • Rear Shock:RockShox
  • Fork:RockShox
  • Motor:TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
  • Controller:TQ LED display with Bluetooth & ANT+ connectivity
  • Battery:TQ 360Wh
  • Charger:TQ 4A charger
  • Number of Gears:12
  • Gear Shifters:SRAM XX AXS
  • Chainset:SRAM XX Eagle,165 mm length
  • Chainrings:.
  • Rear Cassette:SRAM Eagle XS-1297, T-Type, 10-52, 12-speed
  • Chain:SRAM XX Eagle, T-Type, 12-speed
  • Front Derailleur:N/A
  • Rear Derailleur:SRAM XX Eagle AXS, T-Type
  • Bottom Bracket:N/A
  • Pedals:Not supplied:Shop pedals here
  • Rims:Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready
  • Front Hub:Bontrager Line Pro 30, OCLV Mountain Carbon, 6-bolt, Boost110, 15 mm thru-axle
  • Rear Hub:Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru-axle
  • Front Tyre:Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 60 tpi, 29x2.50"
  • Rear Tyre:Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 60 tpi, 29x2.50"
  • Brakes:SRAM Maven Silver 4-piston hydraulic disc
  • Handlebars:Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
  • Handlebar Grips:Bontrager XR Trail Elite, nylon lock-on
  • Headset:.
  • Stem:Bontrager Line Pro, 35 mm, Blendr-compatible, 0-degree, 35 mm length
  • Saddle:Verse Short Pro, carbon rails, 145 mm width
  • Seatpost:RockShox Reverb AXS, 100-170 mm travel, wireless, 34.9 mm, 340-480 mm length
  • Accessories:Charger included, Bontrager BITS integrated multi-tool
  • Weight:M - 18.98 kg / 41.85 lbs (with TLR sealant, no tubes). This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Sizing Chart for Trek Fuel EXe

Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
S155 – 1665’1″ – 5’5″74 - 7829 - 31
M165 - 17655″ – 5’9”79 - 8331 - 32
L177 – 1885’10” – 6’2″84 - 8933 - 35
XL188 – 1956’2” – 6’5″89 - 9135 - 36

Geometry for Trek Fuel EXe

Frame size number15.5"15.5"17.5"17.5"19.5"19.5"21.5"21.5"
Frame size letterSSMMLLXLXL
Geometry positionHighLowHighLowHighLowHighLow
Wheel size29"29"29"29"29"29"29"29"
A — Seat tube3838414143.543.54747
B — Seat tube angle69.3°68.8°69.8°69.3°70.8°70.3°71.3°70.8°
Effective seat tube angle77.3°76.8°77.3°76.8°77.3°76.8°77.3°76.8°
C — Head tube length1010111111111212
D — Head angle65.3°64.8°65.3°64.8°65.3°64.8°65.3°64.8°
E — Effective top tube57.257.359.96062.96365.665.8
F — Bottom bracket height34.133.434.133.434.133.434.133.4
G — Bottom bracket drop3.23.93.23.93.23.93.23.9
H — Chainstay length43.84443.84443.84443.844
I — Offset4.44.44.44.44.44.44.44.4
J — Trail12.412.712.412.712.412.712.412.7
K — Wheelbase118.7118.8121.6121.7124.6124.7127.6127.6
L — Standover73.272.673.372.773.973.375.975.3
M — Frame reach43.442.845.945.348.948.351.450.8
N — Frame stack61.66262.562.962.562.963.463.8





Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com

Sizing Information
Trek Sizing Guide
Professional Opinion
