Accelerate up climbs, float through rock gardens, and experience more power, agility and control with this lightweight, full-suspension e-mtb. The ultra-slim battery minimises weight so you can ride technical trails the way you always dreamed of.
Accelerate up climbs, float through rock gardens, and experience more power, agility and control with this lightweight, full-suspension e-mtb. The ultra-slim battery minimises weight so you can ride technical trails the way you always dreamed of.
Giant

Giant Trance X Advanced E+ Elite T-Type Electric Mountain Bike 2024 In Gloss Blue Dragonfly

£10,399.00 £12,999.00 20% off
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

Any item, except food, face masks or e-gift vouchers (full e-gift vouchers T&Cs are listed on the respective product pages) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase. It is recommended that you use a recorded delivery service to ensure your items are received by us. We cannot assume responsibility for items that are lost in the post.

Online or in-store purchases can both be returned to any store free of charge or can be returned by post after completing the online returns form. If you are returning an item due to a fault, we will refund your postage.

If you wish to return your bike to us, please keep the box it arrived in and let us know using the returns form and we will arrange collection.


Customer Returns Form

If you wish to cancel, return or exchange an order please fill in the form below. Returns can be processed quicker if all required information is added.



Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the products have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:

1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £24.99 for collection. If you do not have the original box, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid receipt.

Giant Trance X Advanced E+ Elite T-Type Electric Mountain Bike 2024 In Gloss Blue Dragonfly

Season:2024

Brand:Giant

Code:6028030BLUDragonfly

Accelerate up climbs, float through rock gardens, and experience more power, agility and control with this lightweight, full-suspension e-mtb. The ultra-slim battery minimises weight so you can ride technical trails the way you always dreamed of.

Lighter weight - EnergyPak 400 battery system is ultra slim, delivering all the power you need, but in a smaller package that’s cleanly integrated into the lightweight composite frameset.

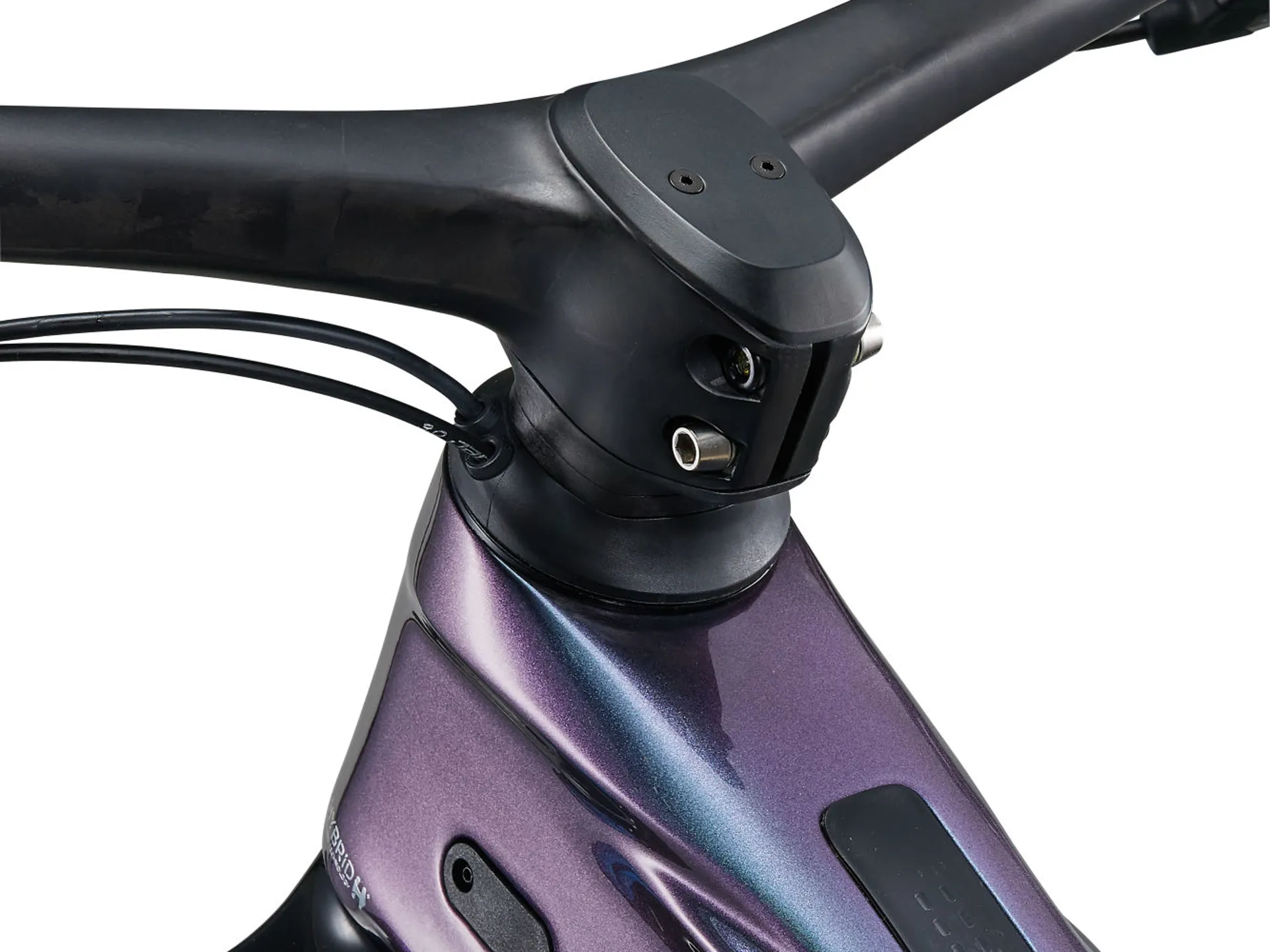

Advanced cockpit control - RideControl Ergo 3 remote attaches to the composite Giant Contact SLR integrated handlebar. The control can be mounted to either side of the handlebar so you can customise your controls for a clean, uncluttered cockpit.

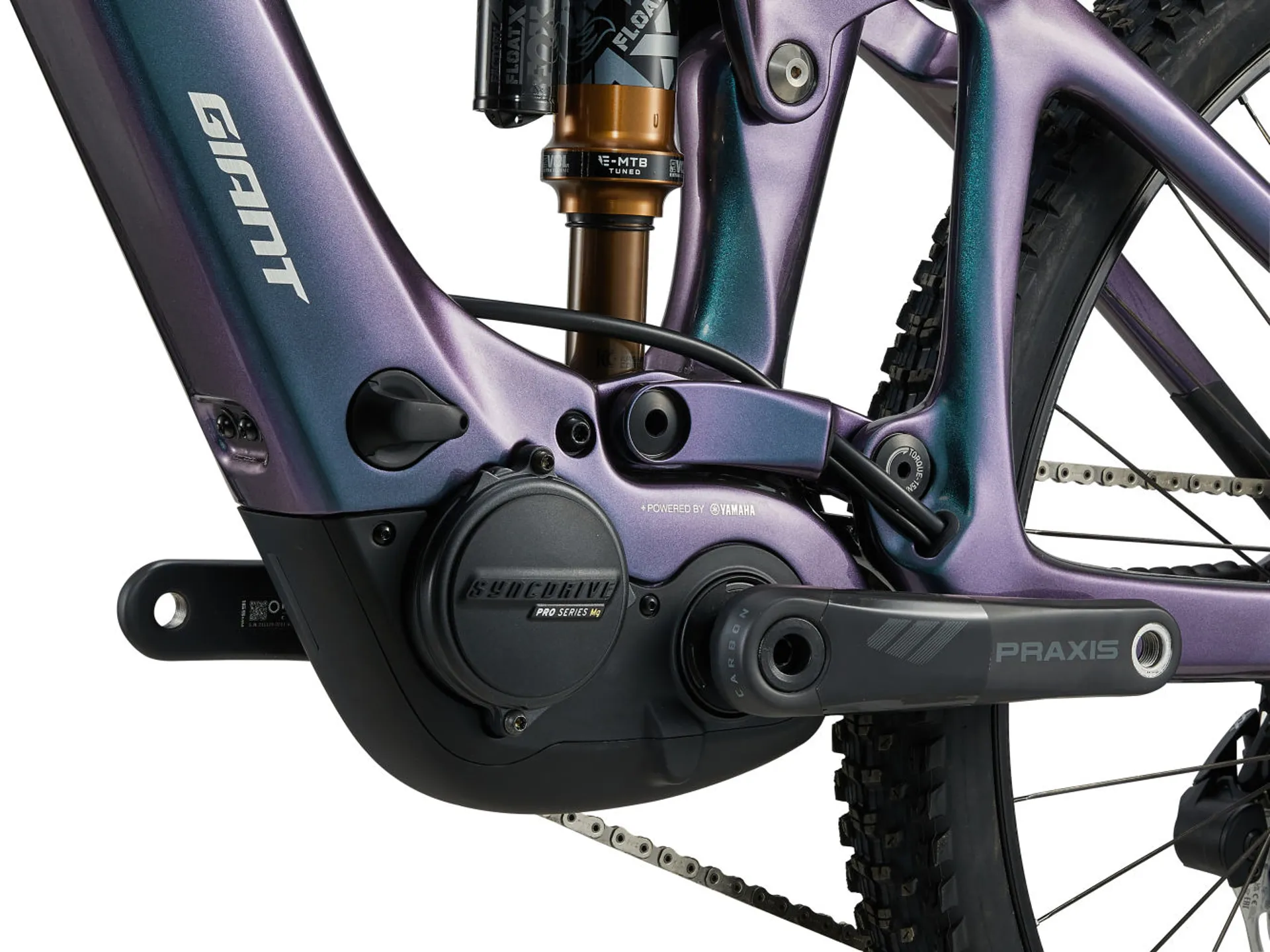

More power - New SyncDrive Pro Magnesium motor features a magnesium casing that reduces weight by 50g. It weighs just 2.5kg and delivers 85Nm of torque while retaining the instant engagement that characterises SyncDrive Pro motors. It’s also engineered for a reduced noise level and quiet performance.

Key Features & Benefits:

  • Lighter Weight:New EnergyPak 400 battery is designed to be ultra slim. You get all the power but in a smaller package that’s cleanly integrated with the composite frameset.
  • Advanced cockpit control:RideControl Ergo 3 remote attaches to the all-new composite Giant Contact SLR integrated handlebar. The control can be mounted to either side of the handlebar so you can customise your controls for a clean, uncluttered cockpit.
  • More power:New SyncDrive Pro motor, co-developed with Yamaha, puts out a powerful 85Nm of torque and weighs just 2.7kg. The result is quicker acceleration and climbing capabilities on technical trails.

Full Specification:

  • Frame:Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system
  • Fork:Fox 36 Factory E-Tuned, 29er, 150mm travel, 44mm offset, Grip2 VVC damper, Kabolt-X 110
  • Rear Shock:Fox Float X Factory, EVOL, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30%
  • Motor:Giant SyncDrive Pro2 85Nm, powered by Yamaha, PedalPlus 6-Sensor technology
  • Controller:Giant RideControl Ergo3, grip integrated remote
  • Display:Giant RideControl GO, frame integrated LED console Optional wireless ANT+ display
  • Battery:Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
  • Charger:Giant EnergyPak 4A smart charger, 60% in 1:45
  • Number of Gears:12
  • Gear Shifters:SRAM AXS Rocker Paddle, wireless electronic shifting
  • Chainset:Praxis Performance Carbon e-crank arms, (S:160,M/L:165, XL:170) SRAM X-SYNC Eagle 36T chain ring
  • Chainrings:36T
  • Rear Cassette:SRAM XX Eagle SL Transmission, 10-52T, 12-speed
  • Chain:SRAM XX Eagle Transmission, Powerlink
  • Front Derailleur:MRP HD2 co-moulded chain guide
  • Rear Derailleur:SRAM XX Eagle Transmission, AXS
  • Bottom Bracket:Giant Integrated
  • Pedals:Not supplied:Shop pedals here
  • Rims:Zipp 3MOTO 29" [F] /27.5" [R], Carbon, with Quarq Tyrewiz
  • Front Hub:Zipp 3MOTO ZM2
  • Rear Hub:Zipp 3MOTO ZM2
  • Front Tyre:Maxxis Dissector 29X2.40"" Foldable, TLR, EXO
  • Rear Tyre:Maxxis Rekon 27.5x2.4"" Foldable, TLR, EXO+
  • Brakes:SRAM Code RSC, 4-piston, hydraulic disc,200mm[F] / 180mm[R]
  • Handlebars:Giant Contact SLR Trail, carbon, 800mm
  • Handlebar Grips:Giant Tactal Pro-E,tapered design
  • Stem:Giant Contact SLR Trail, integrated,40/45/50mm Reach, 7/9degree Sweep Adjust System
  • Saddle:Giant Romero SL, Neutral
  • Seatpost:Fox Transfer Factory (S:125, M:150, L: 175, XL:200mm) Fox MMX Remote
  • Accessories:Tubeless kit (liquid, valves, levers, manual, tool) Inner tube supplied, Giant EnergyPak 4A smart charger, 60% in 1:45
  • Weight:N/A
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Giant Trance X E+ Size Guide

SizeHeight (cm)
S163 - 174cm
M171 - 182cm
L179 - 190cm
XL187 - 198cm

Geometry Guide

SMLXL
LOW|HIGHLOW|HIGHLOW|HIGHLOW|HIGH
SEAT TUBE LENGTH(mm)400425450475
SEAT TUBE ANGLE77.2°|78.0°76.0°|76.7°76.0°|76.7°76.0°|76.7°
TOP TUBE LENGTH(mm)577|575607|605637|635667|665
HEAD TUBE LENGTH(mm)95100110120
HEAD TUBE ANGLE65.7°|66.5°65.8°|66.5°65.8°|66.5°65.8°|66.5°
FORK RAKE(mm)44444444
TRAIL(mm)117|122.4117|122.4117|122.4117|122.4
WHEELBASE(mm)1220|12211239|12371268|12691300|1301
CHAIN STAY LENGTH(mm)473|473473|473473|473473|473
BOTTOM BRACKET DROP(mm)30|2030|2030|2030|20
STACK(mm)606|601611|605621|614630|624
REACH(mm)439|447457|462482|489510|517
STAND OVER HEIGHT(mm)740|746727|734718|726715|723
HANDLEBAR WIDTH(mm)780780780780
STEM LENGTH(mm)40405050
CRANK LENGTH(mm)160165165170
WHEEL SIZE29"29"29"29"

Warranty Information for Giant

ComponentWarranty Period
Bicycle frame (Downhill excluded)Lifetime
Rigid Forks10 Years
Downhill frame3 Years
Giant own brand components, Pedals, grips, bar tape, saddle, Paint & Decals2 Years
Electronic E-bike components including battery2 Years (or 600 charge cycles)
For full warranty policy please visit giant-bicycles.com
Technical Information
  • Motor
    Giant SyncDrive Pro2 Magnesium 85Nm, PedalPlus 6-Sensor technology
  • Controller
    Giant RideControl Ergo3, grip integrated remote
  • Display
    Giant RideControl GO, frame integrated LED console Optional wireless ANT+ display
  • Battery
    Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
  • Charger
    Giant EnergyPak 4A smart charger, 60% in 1:45
  • Connectivity
    Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
  • Sizes
    S, M, L, XL
  • Colours
    Gloss Blue Dragonfly
  • Frame
    Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system
  • Fork
    Fox 36 Factory E-Tuned, 29er, 150mm travel, 44mm offset, Grip2 VVC damper, Kabolt-X 110
  • Shock
    Fox Float X Factory, EVOL, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30%
  • Handlebar
    Giant Contact SLR Trail, carbon, 800mm
  • Grips
    Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL)
  • Stem
    Giant Contact SLR Trail, integrated,40/45/50mm Reach, 7/9degree Sweep Adjust System
  • Seatpost
    Fox Transfer Factory (S:125, M:150, L: 175, XL:200mm) Fox MMX Remote
  • Saddle
    Giant Romero SL, Neutral
  • Pedals
    PEDALS NOT SUPPLIED
  • Shifters
    SRAM AXS Rocker Paddle, wireless electronic shifting 1x12
  • Front Derailleur
    MRP HD2 co-moulded chain guide
  • Rear Derailleur
    SRAM XX Eagle Transmission, AXS
  • Brakes
    SRAM Code RSC, 4-piston, hydraulic disc, 200mm[F], 180mm[R]
  • Brake Levers
    SRAM Code RSC
  • Cassette
    SRAM XX Eagle SL Transmission, 10-52T, 12-speed
  • ChainS
    RAM XX Eagle Transmission, Powerlink
  • Crankset
    Praxis Carbon e-crank arms (S/M:160, L/XL:165) SRAM Eagle Transmission E-MTB Chainring , Steel 36T
  • Bottom Bracket
    n/a
  • Rims
    Zipp 3MOTO 29" [F] /27.5" [R], Carbon
  • Hubs
    Zipp 3MOTO ZM2
  • Spokes
    Zipp 3MOTO
  • Tyres
    Maxxis Dissector 29X2.40" Foldable, TLR, EXO [F]Maxxis Rekon 27.5x2.4" Foldable, TLR, EXO+ [R]
  • Extras
    Tubeless kit (liquid, valves, levers, manual, tool)
  • Lighting
    Optional:- Giant Recon series e-bike lights available and direct connectable
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
