The Fuel EXe 9.9 XTR redefines next level mountain biking with a package that ticks every box – and then some.
The Fuel EXe 9.9 XTR redefines next level mountain biking with a package that ticks every box – and then some.
Trek

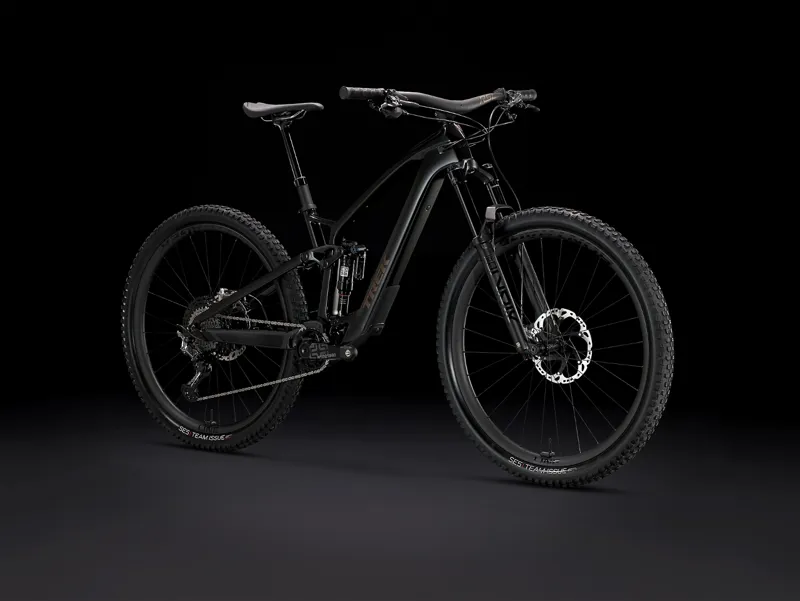

Fuel EXe 9.9 XTR Full Suspension Electric Mountain Bike 2024 in Smoke

£6,000.00 £12,500.00 52% off
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Fuel EXe 9.9 XTR Full Suspension Electric Mountain Bike 2023 in Mulsanne Blue
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

Any item, except food, face masks or e-gift vouchers (full e-gift vouchers T&Cs are listed on the respective product pages) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase. It is recommended that you use a recorded delivery service to ensure your items are received by us. We cannot assume responsibility for items that are lost in the post.

Online or in-store purchases can both be returned to any store free of charge or can be returned by post after completing the online returns form. If you are returning an item due to a fault, we will refund your postage.

If you wish to return your bike to us, please keep the box it arrived in and let us know using the returns form and we will arrange collection.


Customer Returns Form

If you wish to cancel, return or exchange an order please fill in the form below. Returns can be processed quicker if all required information is added.



Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the products have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:

1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £24.99 for collection. If you do not have the original box, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid receipt.

Fuel EXe 9.9 XTR Full Suspension Electric Mountain Bike 2024 in Smoke

Season:2024

Brand:Trek

Code:36368SMK

The Fuel EXe 9.9 XTR redefines next level mountain biking with a package that ticks every box – and then some.

From its quiet TQ transmission that blends in with nature to its carbon wheels and frame dressed to the nines with top-tier Shimano XTR drivetrain, the EXe 9.9 is ready to rip. The upgraded, supple and smooth RockShox suspension package keeps you floating over the chunder while the quiet assist of TQ feels like a welcome tailwind when you're pushing up quad-crushing climbs.

High performance isn't enough – you want the best the industry has to offer. From the carbon frame and wheels to XTR drivetrain and titular RockShox suspension that soars over boulders and roots, you want a bike that's ready for it all, and will help you get back to the top to take on lap after lap with a whisper-quiet motor that feels nearly invisible under you.

The Fuel EXe 9.9 is an e-bike that redefines categories and is spec'd to meet the needs of riders with top taste. It eases steep climbs without pulling you out of your element with a quiet and ultra-durable TQ transmission without looking like a bulky e-bike, and offers a wealth of cream-of-the-crop components, from the carbon wheels to Shimano's lightest and best performing XTR group set.

Key Features & Benefits:

  • Carbon Fibre Frame:Lightweight & efficient for trail riding.
  • 12-Speed Shimano gears:Perfect for all terrain, with XTR smoothness.
  • Upgraded RockShox Suspension Package:Offers 150 mm of front and 140 mm of rear travel for a silky smooth ride

Full Specification:

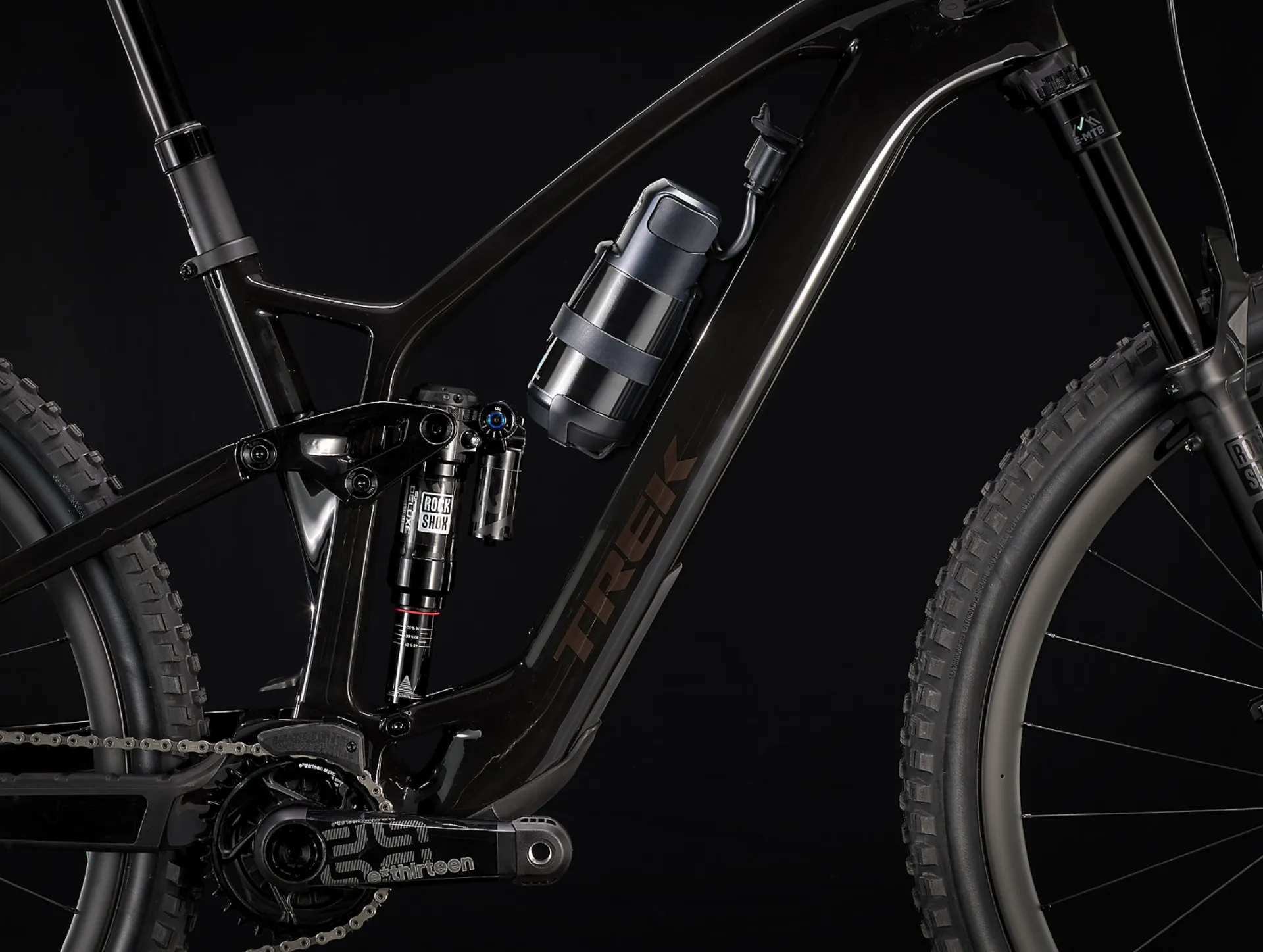

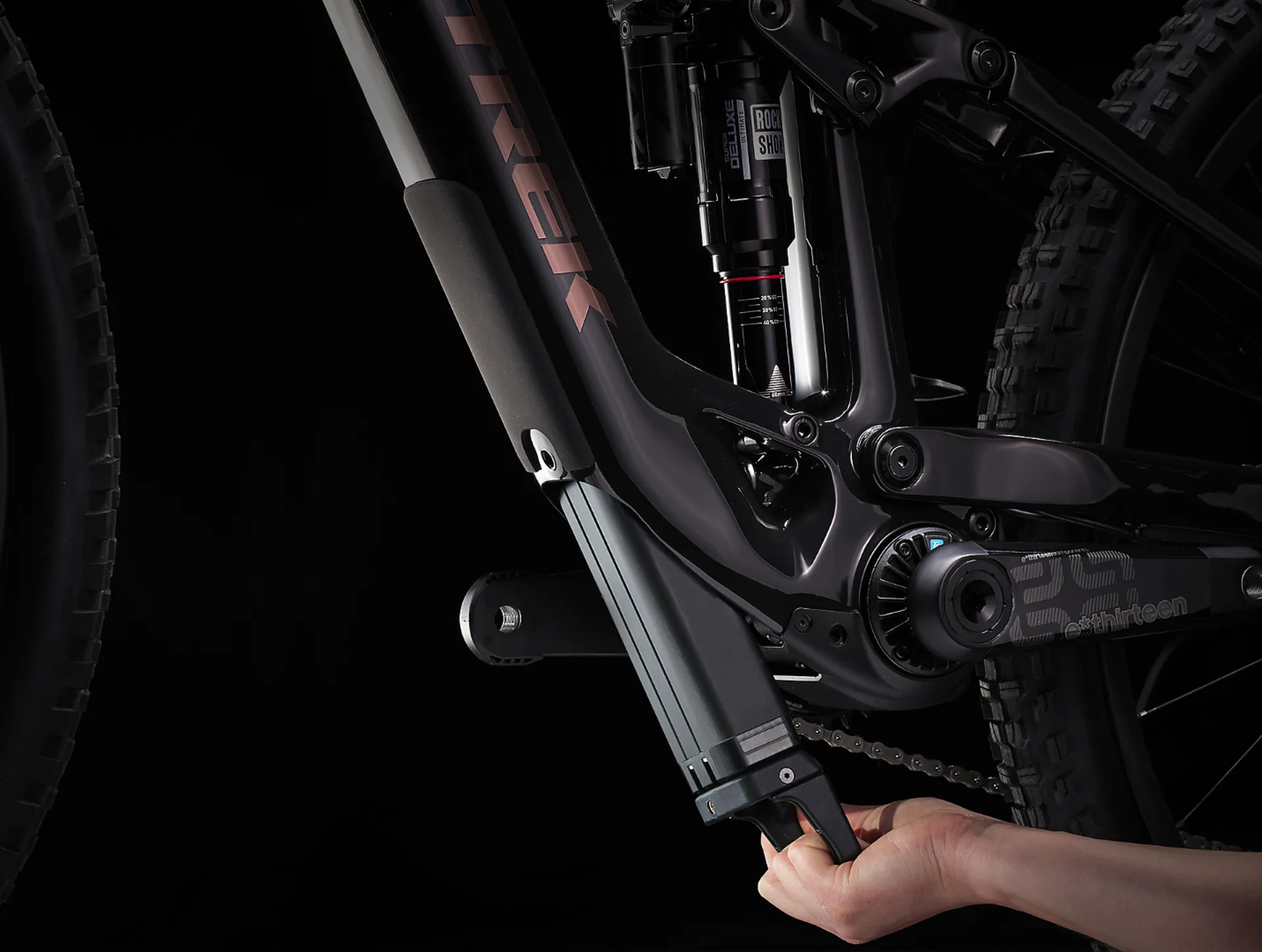

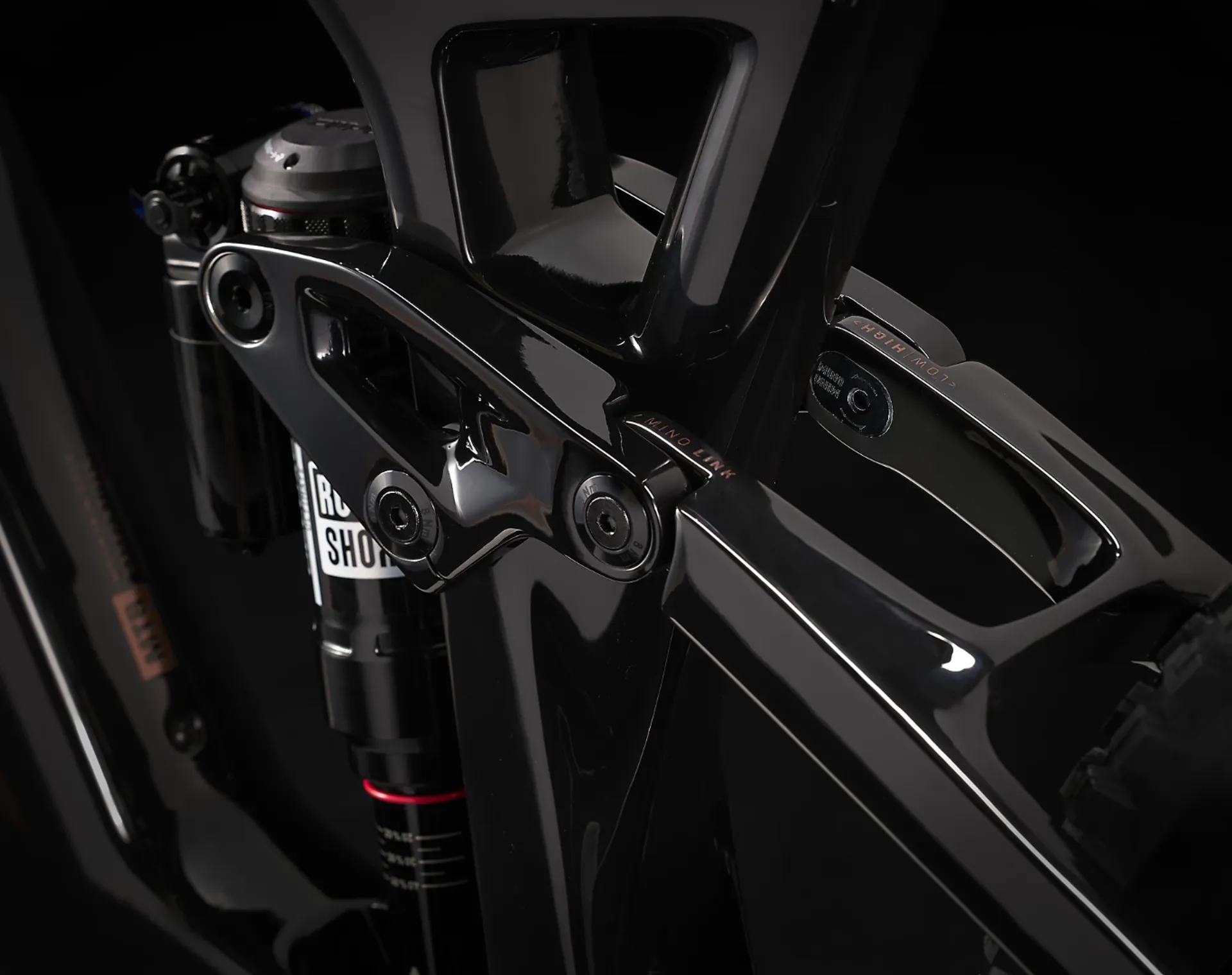

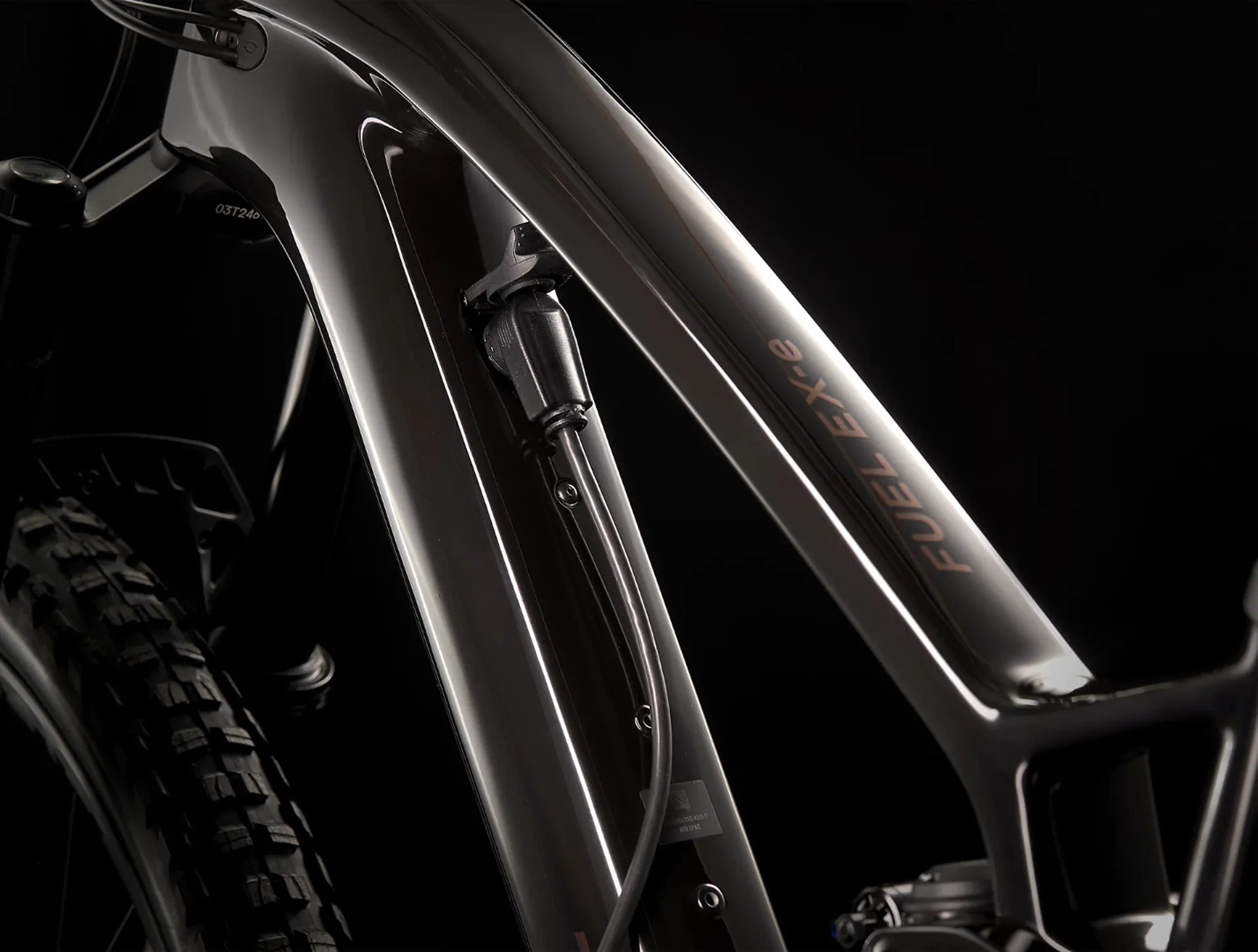

  • Frame:OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel

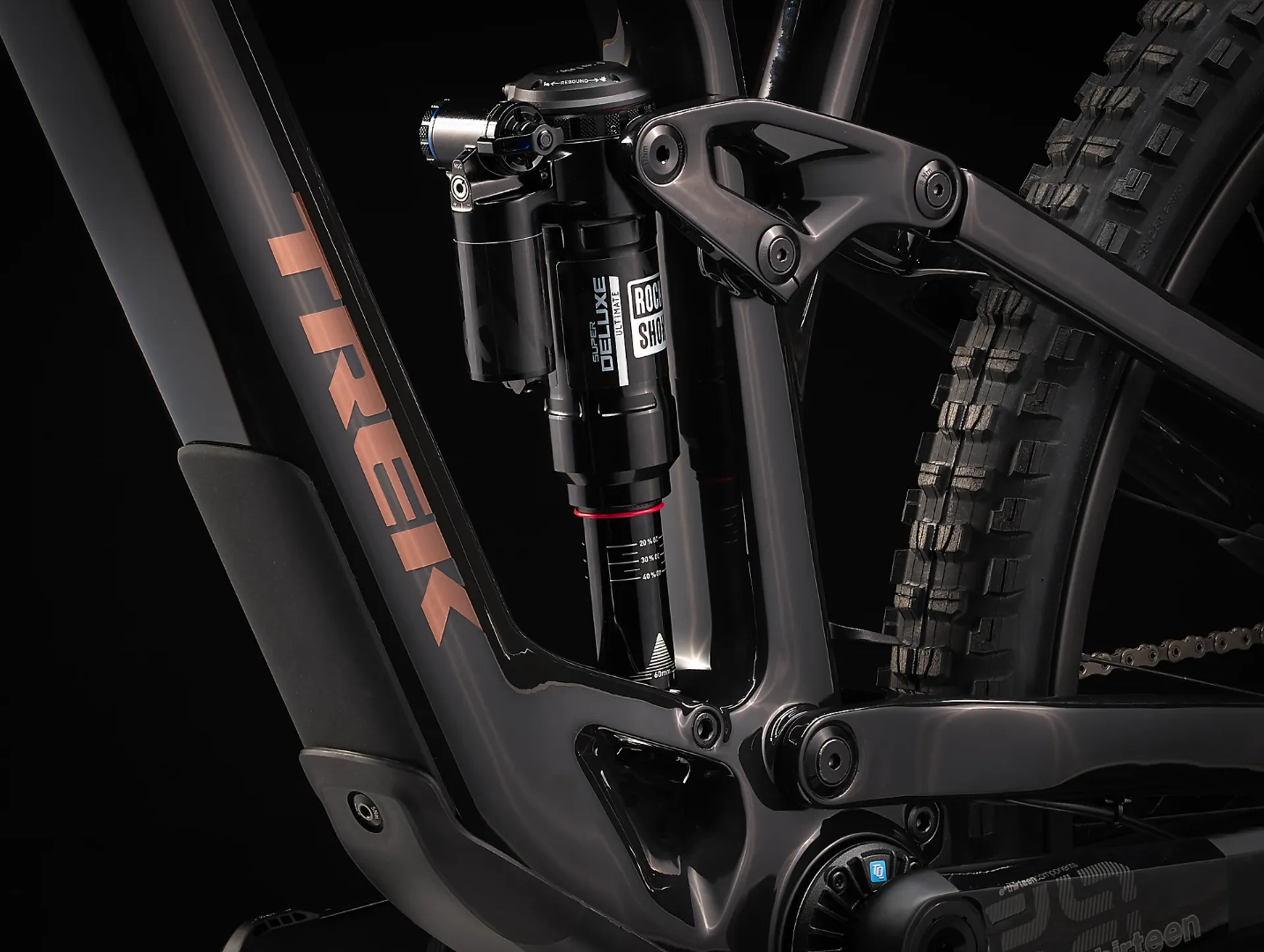

  • Rear Shock:RockShox Super Deluxe Ultimate AirWiz, RCT2 damper, 205 mm x 60 mm
  • Fork:RockShox Lyrik Ultimate, AirWiz, DebonAir spring, Charger 3 RC2 damper, 44 mm offset, Boost110, Maxle Stealth, 150 mm travel
  • Motor:TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power

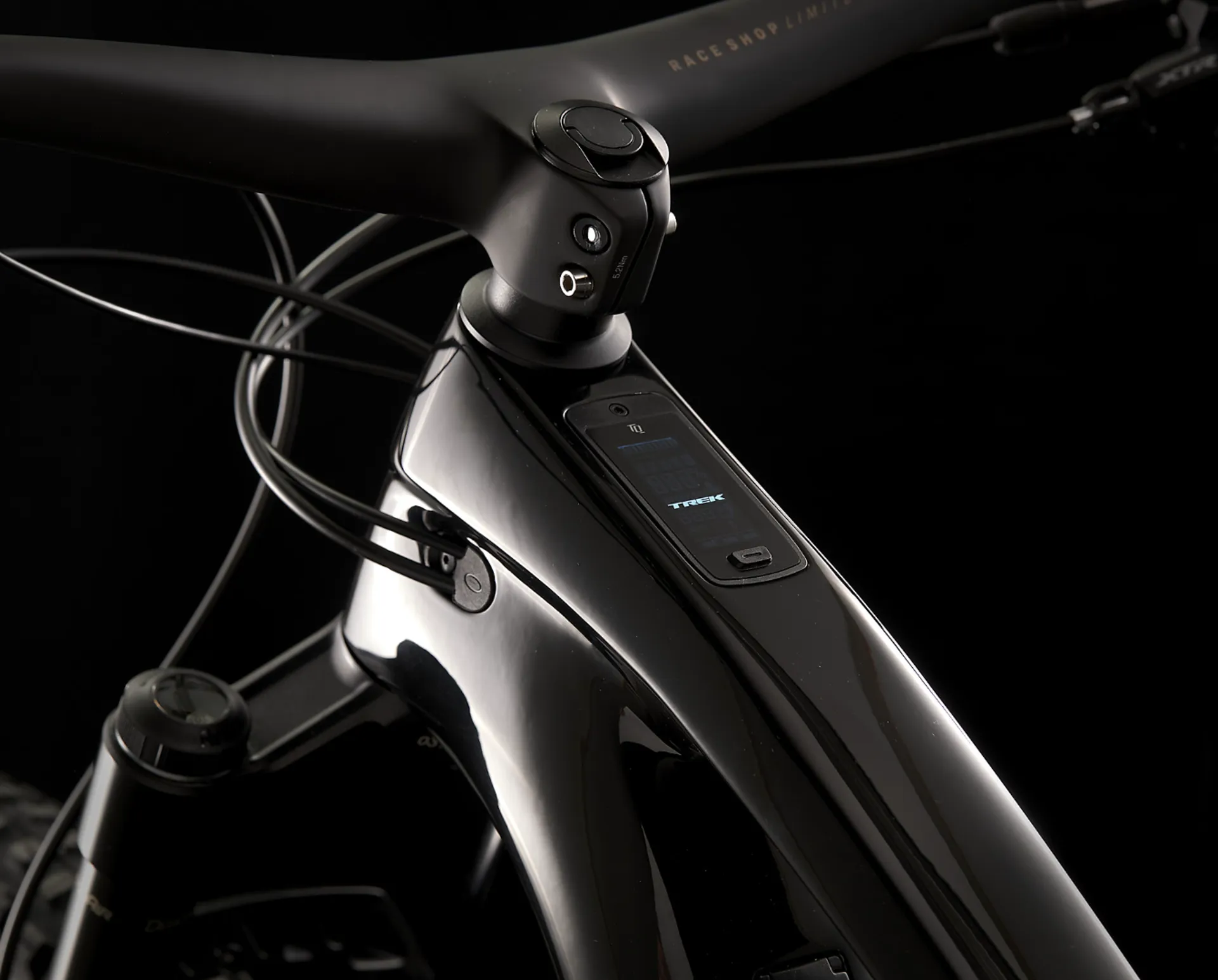

  • Controller:TQ LED display with Bluetooth & ANT+ connectivity
  • Battery:TQ 360Wh
  • Charger:TQ 4A charger
  • Number of Gears:12
  • Gear Shifters:Shimano XTR M9100, 12 speed
  • Chainset:E*thirteen E*spec Race carbon, 34T, 165 mm length
  • Chainrings:E*thirteen E*spec, 32T alloy ring, 55 mm chainline
  • Rear Cassette:Shimano XTR M9101, 10-51, 12-speed
  • Chain:Shimano Dura-Ace/XTR M9100, 12 speed
  • Front Derailleur:N/A
  • Rear Derailleur:Shimano XTR M9100, Shadow Plus, long cage, 51-T max cog
  • Pedals:Not included
  • Rims:Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready
  • Front Hub:Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
  • Rear Hub:Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108,6-bolt, Shimano MicroSpline freehub, Boost 148, 12mm thru axle
  • Front Tyre:Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
  • Rear Tyre:Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"

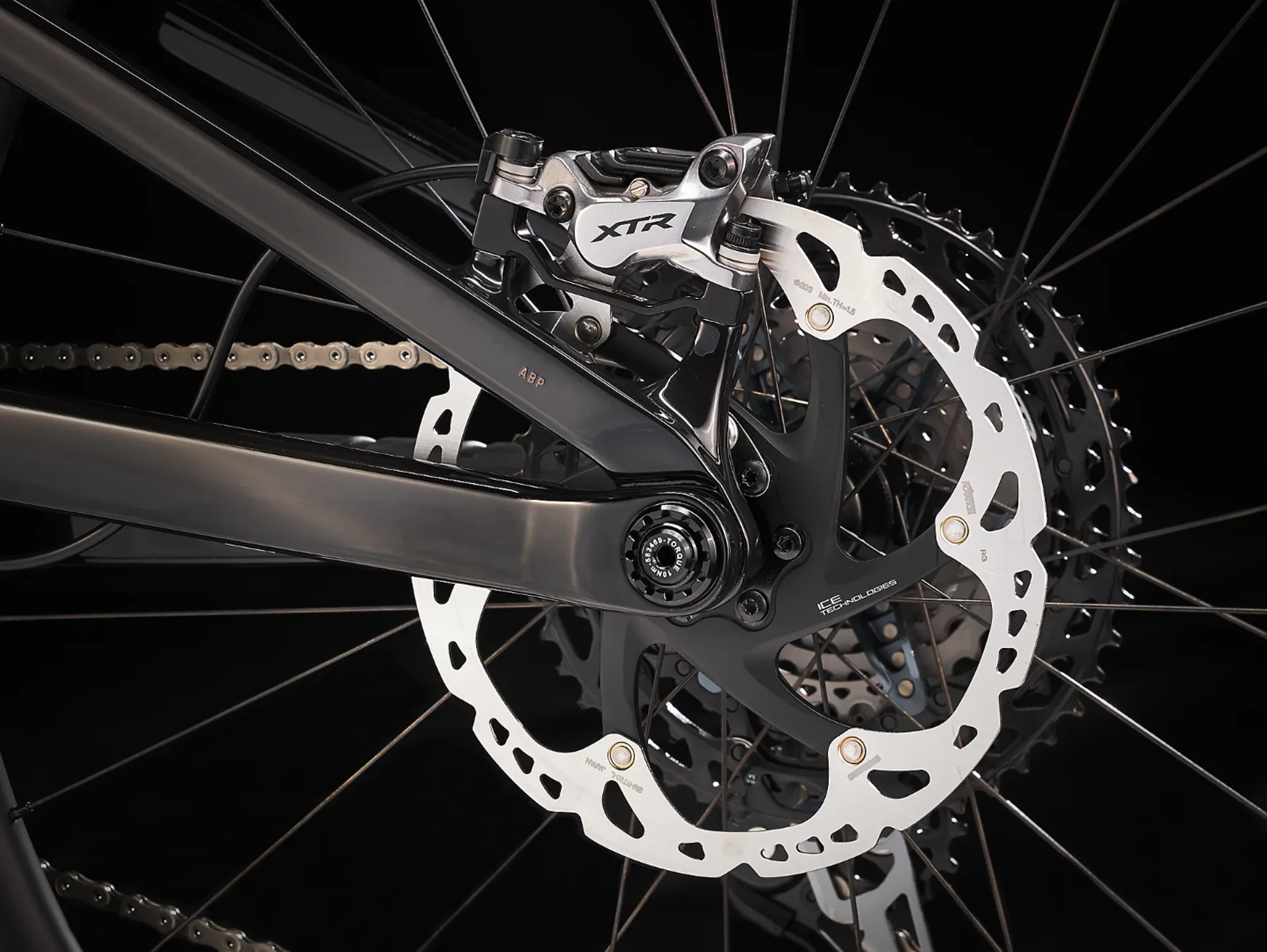

  • Brakes:Shimano XTR M9120 4-piston hydraulic disc
  • Handlebars:Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise
  • Handlebar Grips:Bontrager XR Trail Elite, nylon lock-on
  • Headset:Trek Fuel EX-e Headset
  • Stem:Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 45mm stem length
  • Saddle:Bontrager Arvada Pro, carbon rails, 138 mm width
  • Seatpost:Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 34.9 mm, S:345, M:440, L:485, XL:550 mm length
  • Accessories:Charger included
  • Weight:M - 18.38 kg / 40.53 lbs (with TLR sealant, no tubes)
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Sizing Chart for Trek Fuel EXe

Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
S155 – 1665’1″ – 5’5″74 - 7829 - 31
M165 - 17655″ – 5’9”79 - 8331 - 32
L177 – 1885’10” – 6’2″84 - 8933 - 35
XL188 – 1956’2” – 6’5″89 - 9135 - 36

Geometry for Trek Fuel EXe

Frame size number15.5"15.5"17.5"17.5"19.5"19.5"21.5"21.5"
Frame size letterSSMMLLXLXL
Geometry positionHighLowHighLowHighLowHighLow
Wheel size29"29"29"29"29"29"29"29"
A — Seat tube3838414143.543.54747
B — Seat tube angle69.3°68.8°69.8°69.3°70.8°70.3°71.3°70.8°
Effective seat tube angle77.3°76.8°77.3°76.8°77.3°76.8°77.3°76.8°
C — Head tube length1010111111111212
D — Head angle65.3°64.8°65.3°64.8°65.3°64.8°65.3°64.8°
E — Effective top tube57.257.359.96062.96365.665.8
F — Bottom bracket height34.133.434.133.434.133.434.133.4
G — Bottom bracket drop3.23.93.23.93.23.93.23.9
H — Chainstay length43.84443.84443.84443.844
I — Offset4.44.44.44.44.44.44.44.4
J — Trail12.412.712.412.712.412.712.412.7
K — Wheelbase118.7118.8121.6121.7124.6124.7127.6127.6
L — Standover73.272.673.372.773.973.375.975.3
M — Frame reach43.442.845.945.348.948.351.450.8
N — Frame stack61.66262.562.962.562.963.463.8





Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com

Technical Information
  • Frame
    OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel
  • Fork
    RockShox Lyrik Ultimate, AirWiz, DebonAir spring, Charger 3 RC2 damper, 44 mm offset, Boost110, Maxle Stealth, 150 mm travel
  • Shock
    RockShox Super Deluxe Ultimate AirWiz, RCT2 damper, 205 mm x 60 mm
  • Wheel front
    Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru axle
  • Wheel rear
    Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost 148, 12 mm thru axle
  • Rim
    Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready
  • Tyre
    Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
  • Tyre part
    Bontrager TLR sealant, 180 ml/6 oz
  • Rim strip
    Bontrager TLR
  • Shifter
    Shimano XTR M9100, 12-speed
  • Rear derailleur
    Shimano XTR M9100, Shadow Plus, long cage, 51-T max cog
  • Crank arm
    E*thirteen E*spec Race carbon, 34T, 165 mm length
  • Chainring
    E*thirteen E*spec, 32T alloy ring, 55 mm chainline
  • Cassette
    Shimano XTR M9101, 10-51, 12-speed
  • Chain
    Shimano Dura-Ace/XTR M9100, 12-speed
  • Saddle
    Bontrager Arvada Pro, carbon rails, 138 mm width
  • *Seatpost
  • Size: S
    Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 34.9 mm, 345 mm length
  • Size: M
    Bontrager Line Elite Dropper, 150 mm travel, MaxFlow, internal routing, 34.9 mm, 440 mm length
  • Size: L
    Bontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 485 mm length
  • Size: XL
    Bontrager Line Elite Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 550 mm length
  • Integrated Bar Stem
    Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 45mm stem length
  • Grips
    Brake
  • Brake
    Shimano XTR M9120 4-piston hydraulic disc
  • *Brake rotor
  • Size: S, M, L, XL
    Shimano RT86, 6-bolt, 180 mm
  • Size: S, M, L, XL
    Battery
  • Battery
    TQ 360 Wh
  • *Controller
    Size: S, M, L, XL
  • Size: S, M, L, XL

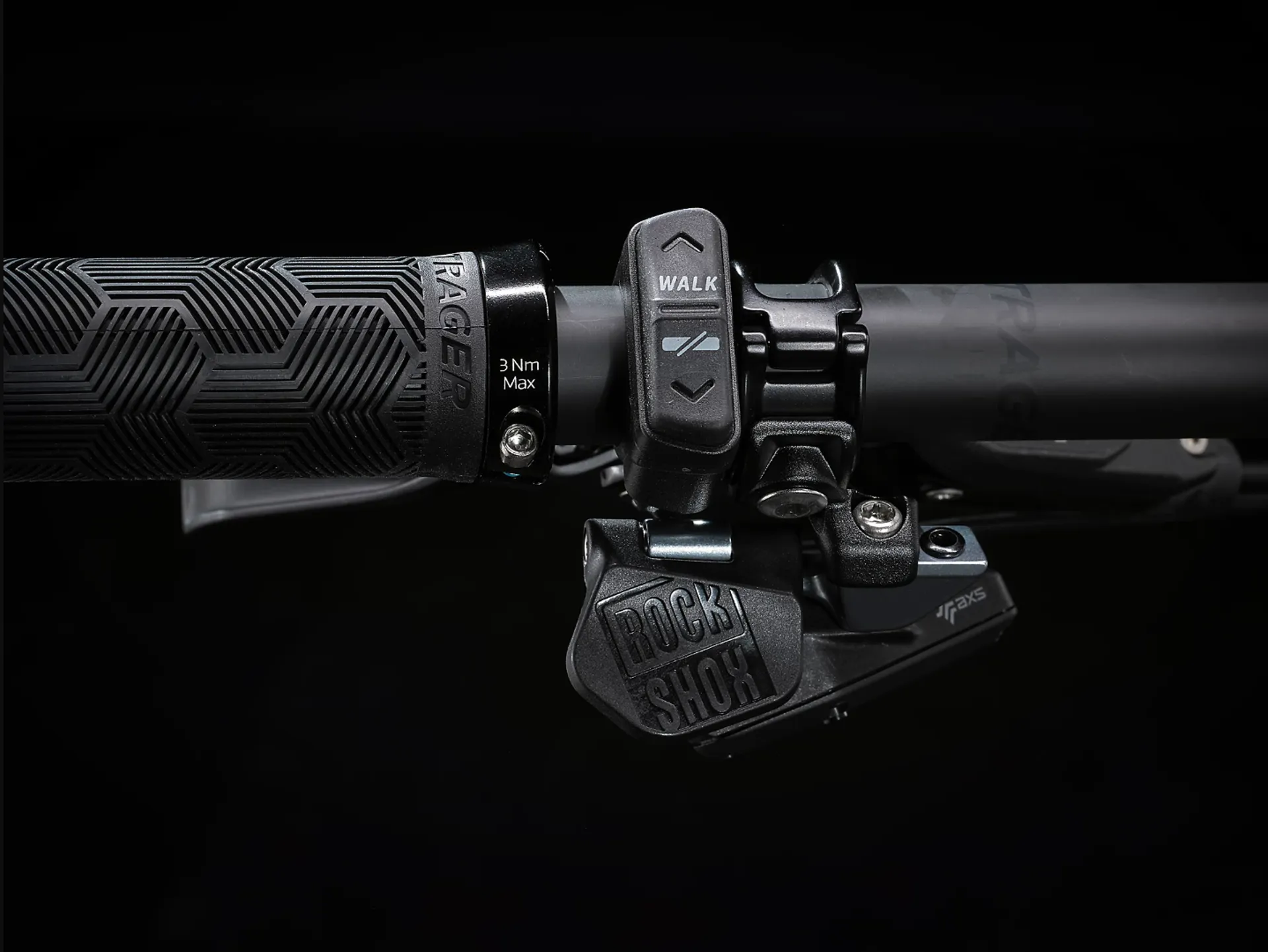

    TQ LED display with Bluetooth & ANT+ connectivity
  • Size: S, M, L, XL
    TQ handlebar-mounted
  • Motor

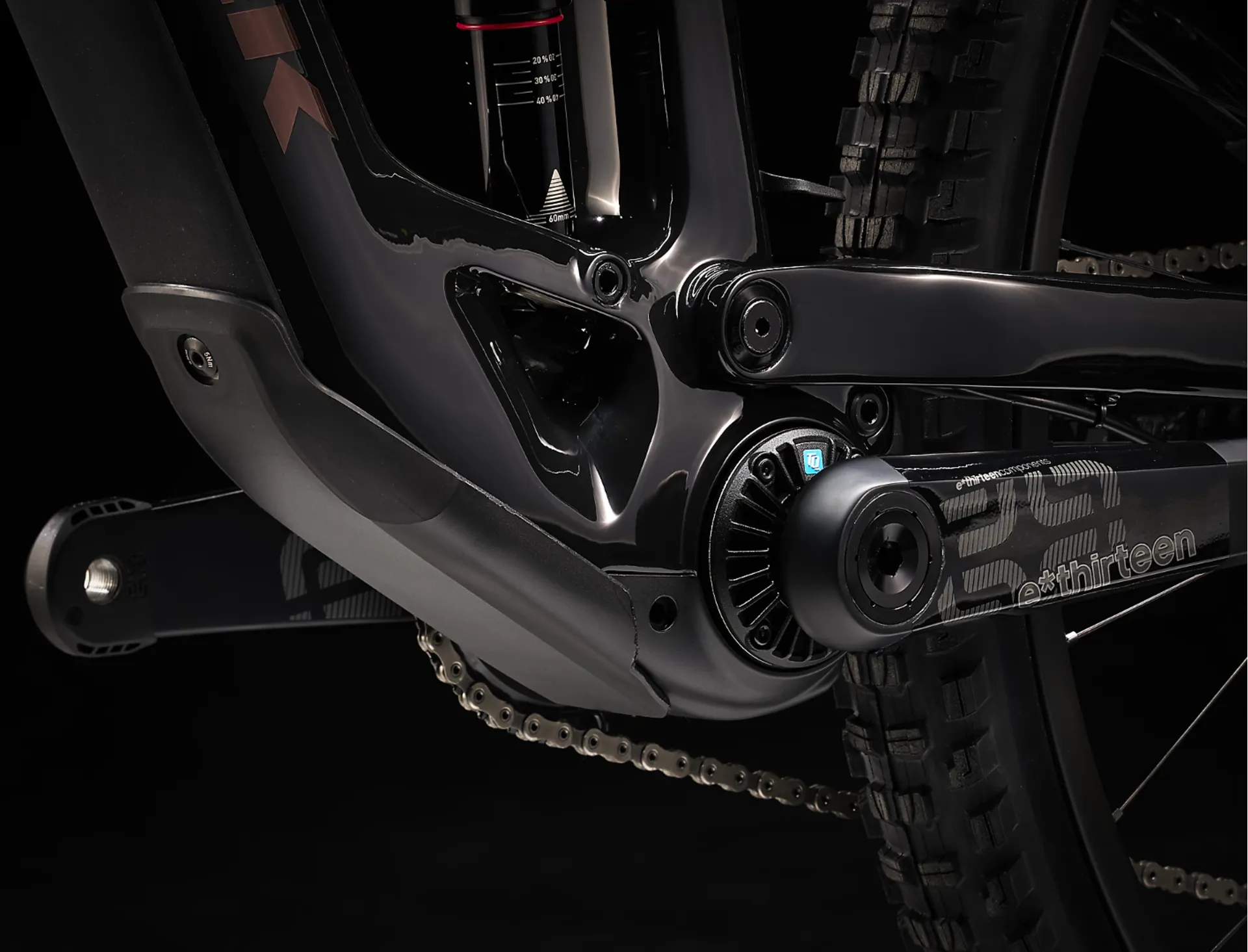

    TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
  • Weight
    M - 17.47 kg / 38.52 lbs (with TLR sealant, no tubes)
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
